Keychron V2 QMK Aangepaste mechanische toetsenbord ISO-indelingscollectie

SKU: V2-C1-BO
€94,00

Type
Layout Version
Schakelaars

De volledig geassembleerde versie omvat:
  • ABS-kunststof behuizing
  • De toetsenbordprintplaat, de inschroefbare nokken en de stalen plaat
  • OSA-profieltoetsen (inclusief Mac- en Windows-toetsen)
  • Keychron K Pro-schakelaars

Het verschil tussen volledig gemonteerde knop (matzwart)-ABS-toetsen en volledig gemonteerde knop (mat zwart)-PBT-toetsdoppen is het type toetsdoppen dat ze gebruiken.

ABS Keycaps: doorschijnende achtergrondverlichting
PBT Keycaps: niet doorschijnend

Voor V2 kunnen geen kortingscodes worden gebruikt. Laat uw e-mail achter op "Houd mij op de hoogte wanneer beschikbaar" als het productmodel niet op voorraad is.

Keychron V2
ISO Layout Collection

The V2 has a 65% ultra-compact layout with QMK/VIA support, which can offer you endless possibilities of customization and meet your needs in different situations. With backlight shine-through keycaps, an acoustic silicone pad, and pre-lubed switches, it will ensure you the best typing experience.

Keychron V2 QMK/VIA Custom Mechanical Keyboard ISO Layout
Feature of Keychron V2 QMK/VIA Custom Mechanical Keyboard ISO Layout
Customize Your V2

Choose the keycaps, switches and more accessories for your V2 ISO layout keyboard

Keychron V2 ISO Layout Versions

These versions include the Nordic, Swiss, German, UK, French, and Spanish layouts, all with extra keycaps suitable for Mac and Windows devices.

🇨🇭 Swiss-ISO Layout

Swiss-ISO Layout Keychron V2 QMK/VIA Custom Mechanical Keyboard

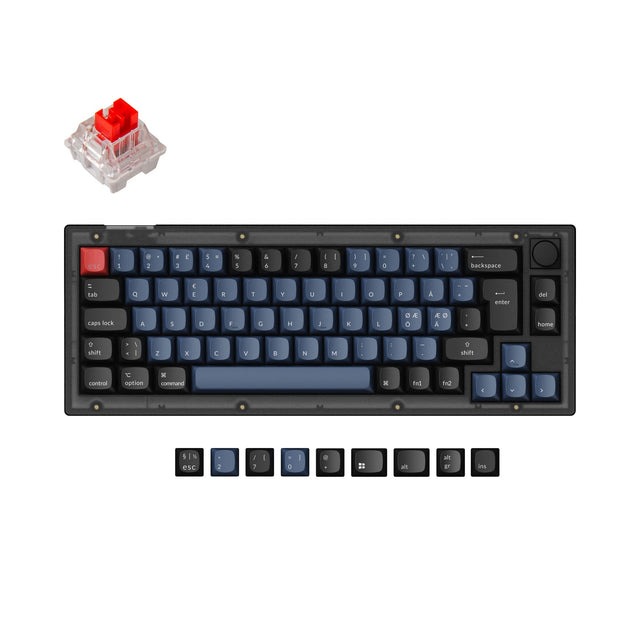

🇩🇰 🇫🇮 🇮🇸 🇳🇴 🇸🇪 Nordic-ISO Layout

Nordic-ISO Layout Keychron V2 QMK/VIA Custom Mechanical Keyboard

🇩🇪 German DE-ISO Layout

German ISO Layout Keychron V2 QMK/VIA Custom Mechanical Keyboard

🇬🇧 UK-ISO Layout

UK-ISO Layout Keychron V2 QMK/VIA Custom Mechanical Keyboard

🇫🇷 French-ISO Layout

French-ISO Layout Keychron V2 QMK/VIA Custom Mechanical Keyboard

🇪🇸 Spanish-ISO Layout

Spanish ISO Layout Keychron V2 QMK/VIA Custom Mechanical Keyboard

All-Around Customizable Keyboard

To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every parts the way you want.

Keychron V2 QMK/VIA Custom Mechanical Keyboard ISO Layout

Note: The screw heads are molded into the case, so they have a very strong grip and won’t fall out.

Keychron V2 QMK/VIA Custom Mechanical Keyboard ISO Layout

An Epic Core Inside The Keyboard

A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz out of the box, which makes latency non-existent for the competitive game.

OSA Profile ABS Backlight Shine-Through Keycaps

To further leverage your typing experience, the V2 ISO version comes with our unique OSA profile (OEM profile with spherical angle) and ABS keycaps that aim to provide a more comfortable fingertip feel and a fantastic backlight shine-through effect.

Keychron V2 QMK/VIA Custom Mechanical Keyboard ISO Layout

Switch layouts between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V2 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Programmable Knob

Designed to enhance your creative workflow, its aluminum rotary encoder allows you to customize your favorite keys and macros on the knob through the VIA software with ease.

Rotary encoder Keychron V2 QMK/VIA Custom Mechanical Keyboard ISO Layout

You can easily customize the V2's knob to your desired key or macro commands like zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.

Program with QMK & Launcher.

Endless possibilities for a fluid workflow thanks to its ability to remap any key, and create macro commands, shortcuts, or key combinations through the Keychron Launcher Web App.

Click here to use Keychron Launcher

* Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.

Hot-swappable.

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.

South-facing RGB LED Lights.

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

Barebone ISO Layout Keychron V2 Custom Mechanical Keyboard

Pre-lubed Keychron K Pro Switch

By optimizing the switch mold, the K Pro switch wobbles less than a standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed process on all the K Pro switches (exclude the clicky ones), no doubt this will ensure the best smoothness at your fingertips when typing.

Keychron K Pro Switch Features
All New Screw-In PCB Stabilizers

All New Screw-In PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron V2 also supports third-party screw-in PCB stabilizers.

What's in the box?

Package list of Keychron V2 QMK/VIA Custom Mechanical Keyboard ISO Layout

Specs

Width123.25 mm
Length329.9 mm
Front Height20.23 mm  (without keycaps)
Back Height26.75 mm (without keycaps)
Feet Height2.4 mm
Angle3.5° / 7.91° / 10.88°
Weight855 ± 10 g
Body MaterialABS Plastic
PlateSteel
Polling Rate1000Hz
Mount StyleTray Mount Design
Keycaps (Fully Assembled Version)OSA Profile ABS backlight shine-through keycaps
SwitchesKeychron K Pro
BacklightSouth-facing RGB LED
Switch SupportHot-swappable (5 pin & 3 pin)
StabsScrew-in PCB stabs
ConnectivityType-C cable
CableType-C cable + Type-A to Type-C adapter
MCUUltra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)
Operating Environment-10℃ to 50℃
LayoutDE-ISO, UK-ISO, Swiss-ISO, Nordic-ISO, FR-ISO, and ES-ISO
Keychron V2 User Guide

Learn more about the Keychron V2 such as the V2 shortcuts, assembling the V2, factory reset, and more in the FAQ section.
