Gateron Lineaire schakelaar voor babywasbeer

SKU: G174
€66,00

Keuze
Aantal van één set

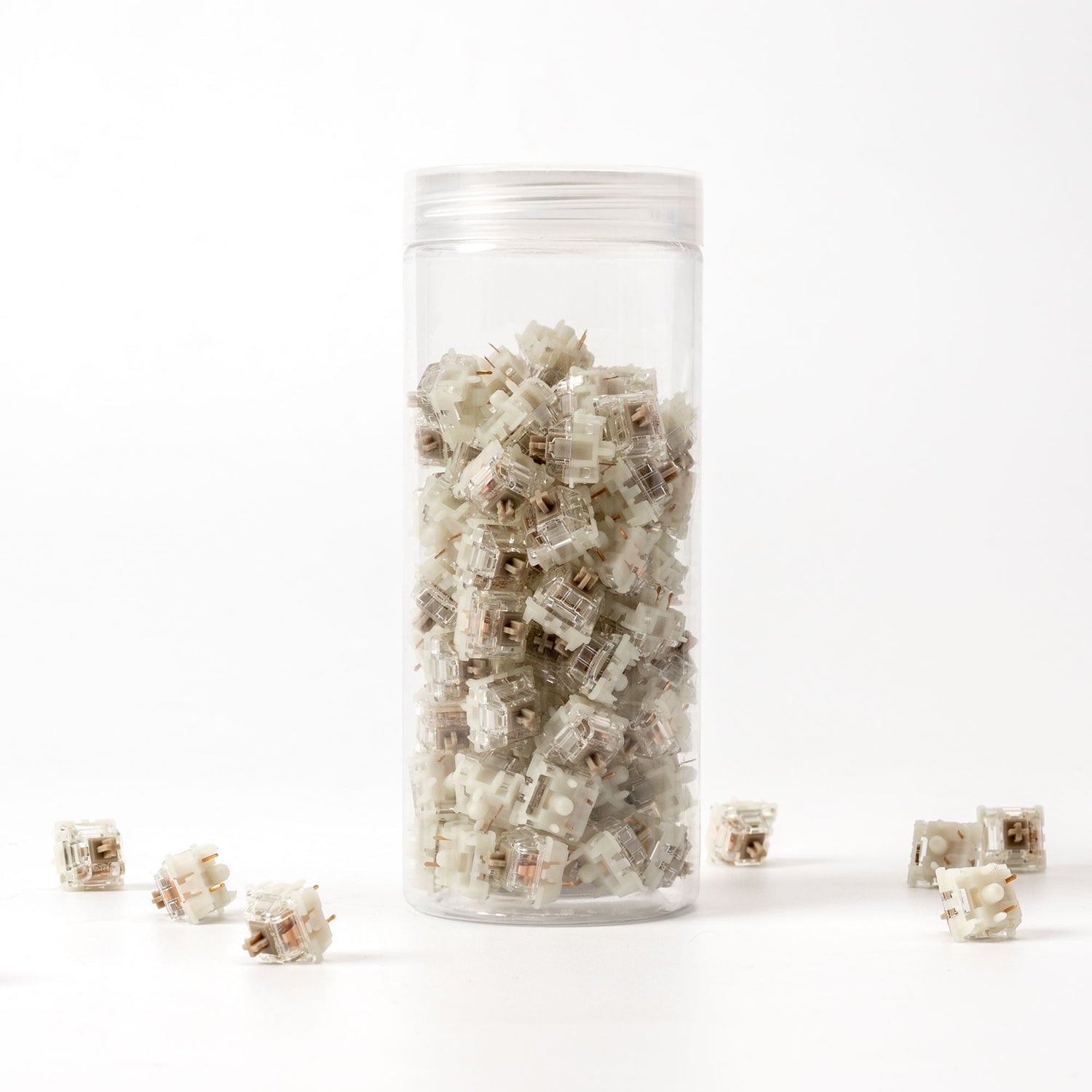

Elke Gateron Baby Raccoon lineaire schakelaarset wordt geleverd met 110 schakelaars en de fles.

Shorten Total Travel And Early Bottom-out

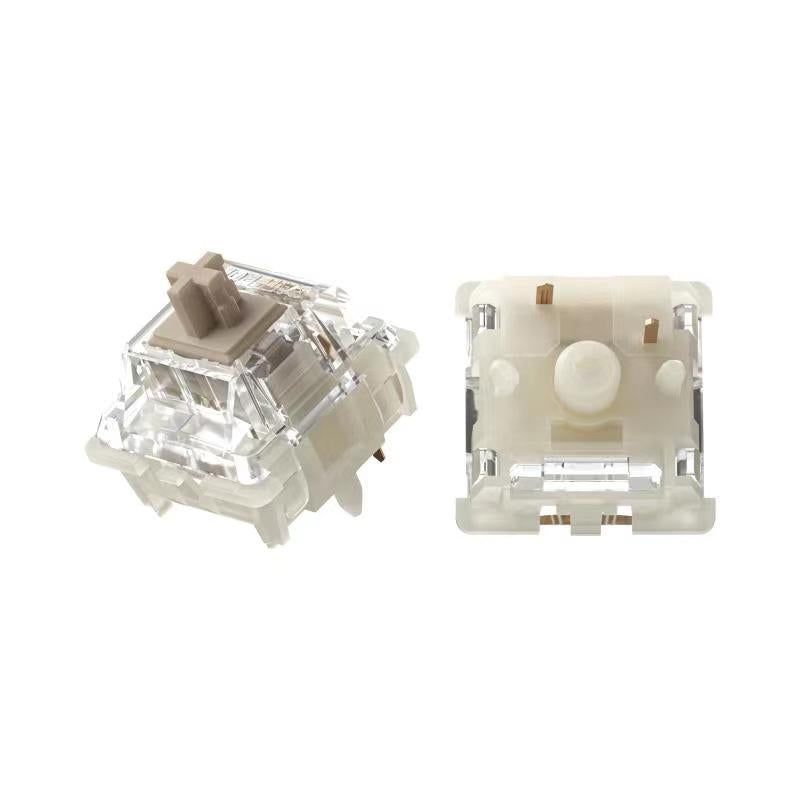

The Gateron Baby Raccoon Switch is a linear switch that features a 0.64 mm stem, which is longer than conventional switches and shortens the total travel to 3.6±0.2 mm for an early bottom-out feel. Taking into account the feel and sound, it also makes the pressing sound more concentrated and delivers a smooth and extraordinary typing experience.

gateron_baby_raccoon_linear_switch_structure__PID:59841f9e-e393-4b7a-b38c-711b53e6a6f7

Extended Gold-Plated Spring

The Baby Raccoon Switch uses a 20 mm extended gold-plated spring to not only enforce the switch’s high durability but also provide an operation pressure of 55gf, which is ideal for office and gaming use

2.0 Condenser Light Hole Scheme

It incorporates the G Pro 2.0 switch's condenser light hole and light guide column design to make the light more concentrated, perfect for displaying RGB lighting. It is compatible with SMD-LED and more than 99% of keycaps on the market.

20-condenser-light-hole-scheme-1675907736140__PID:1f9ee393-9b7a-438c-b11b-53e6a6f7cdd9
plain-and-elegant-apperance-design-1675907765447__PID:e3939b7a-338c-411b-93e6-a6f7cdd9afd3

Plain And Elegant Appearance Design

The Baby Raccoon Switch still takes the "true color" route. The upper housing and base are of natural raw material color and the stem is a light coffee color to reference the hair of the little raccoon, which brings an intriguing visual experience..

Product Information

Baby Raccoon Switch

TypeLinear
Operation Force55±8 gf
Pre-Travel2.0±0.5 mm
Total Travel3.6±0.2 mm
Sound LevelLow
Operation LifeUp to 80M cycles
Suitable ForGaming/ Office
Type FeelingVertical, strong pressing force, hard rebound
gateron-baby-kangaroo-tactile-switch-force-travel-diagram-1658549775725__PID:9b7a338c-711b-43e6-a6f7-cdd9afd36594

Specs

Product NameGateron Baby Raccoon Linear Switch
StemPOM, MX stem
Housing
PC material (Cover), PA66 material (Base)
Housing Base
Proprietary Ink Material, translucent light green housing
Spring20 mm gold-plated
Pins5-Pin switch
Lubrication
Lubed version
SMD LED SupportYes
gateron-baby-kangaroo-tactile-switchlayout-of-pcb-1658549923385__PID:cdd9afd3-6594-4d13-bcdf-d5b0fa11be5e

Product Gallery

gateron-baby-raccoon-linear-switches-1675908044447__PID:15ad91c2-9b8d-4e04-8215-8a5dcf43bbe0
gateron-baby-racoon-linear-switches2-1675908319742__PID:9b8dde04-8215-4a5d-8f43-bbe06c602193
gateron-baby-racoon-linear-switches-1675908357996__PID:60219341-f8d5-4a08-a036-af94ecdc9d2b

Compatible Keyboard:

Any K series (Gateron Mechanical Hot-Swappable or Keychron Mechanical Hot-Swappable versions only), K Pro series (Normal-profile versions only), C and C Pro series (Hot-Swappable versions only), V and V Max series, Q, Q Pro and Q Max series Keychron keyboards, and L and P Series Lemokey keyboards.
