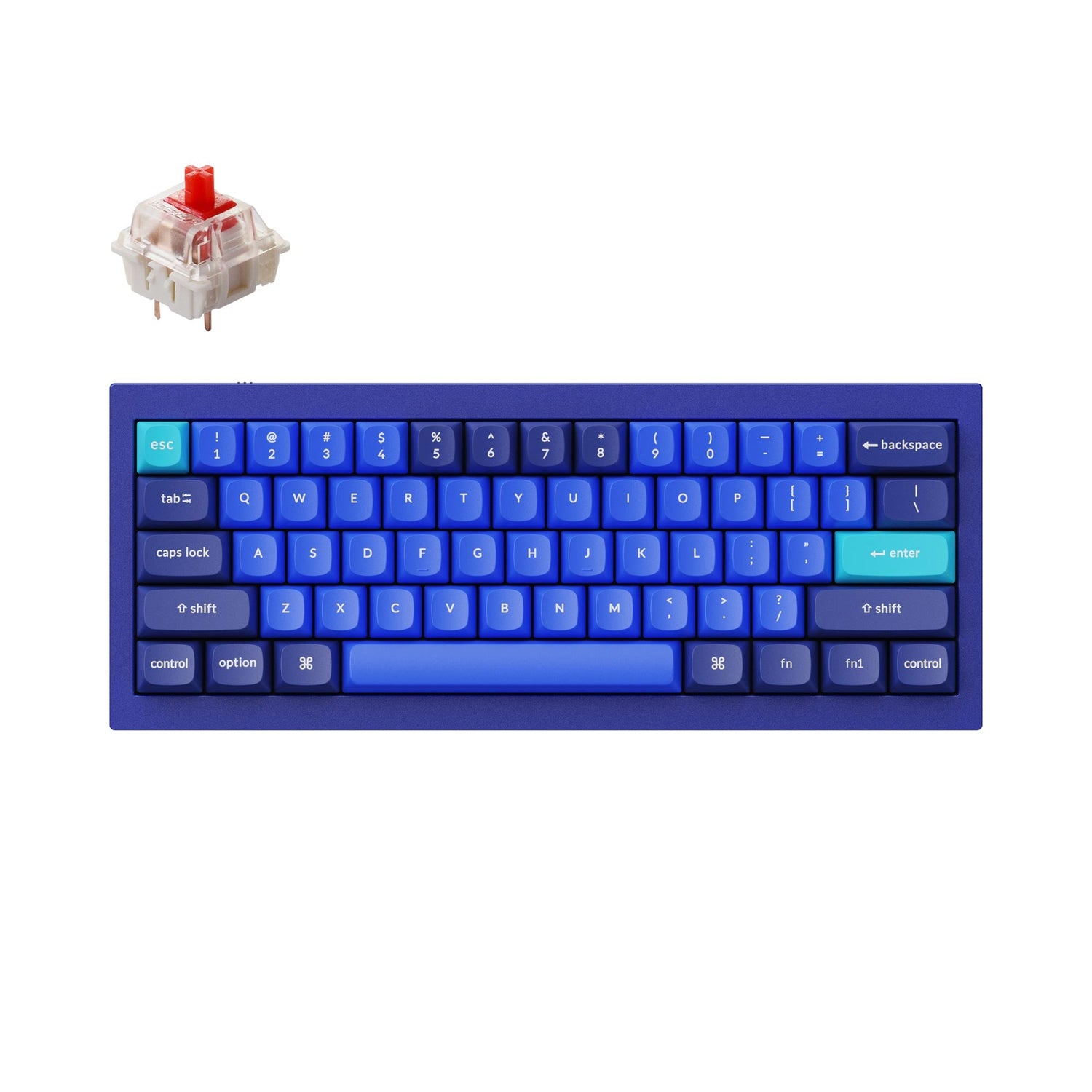

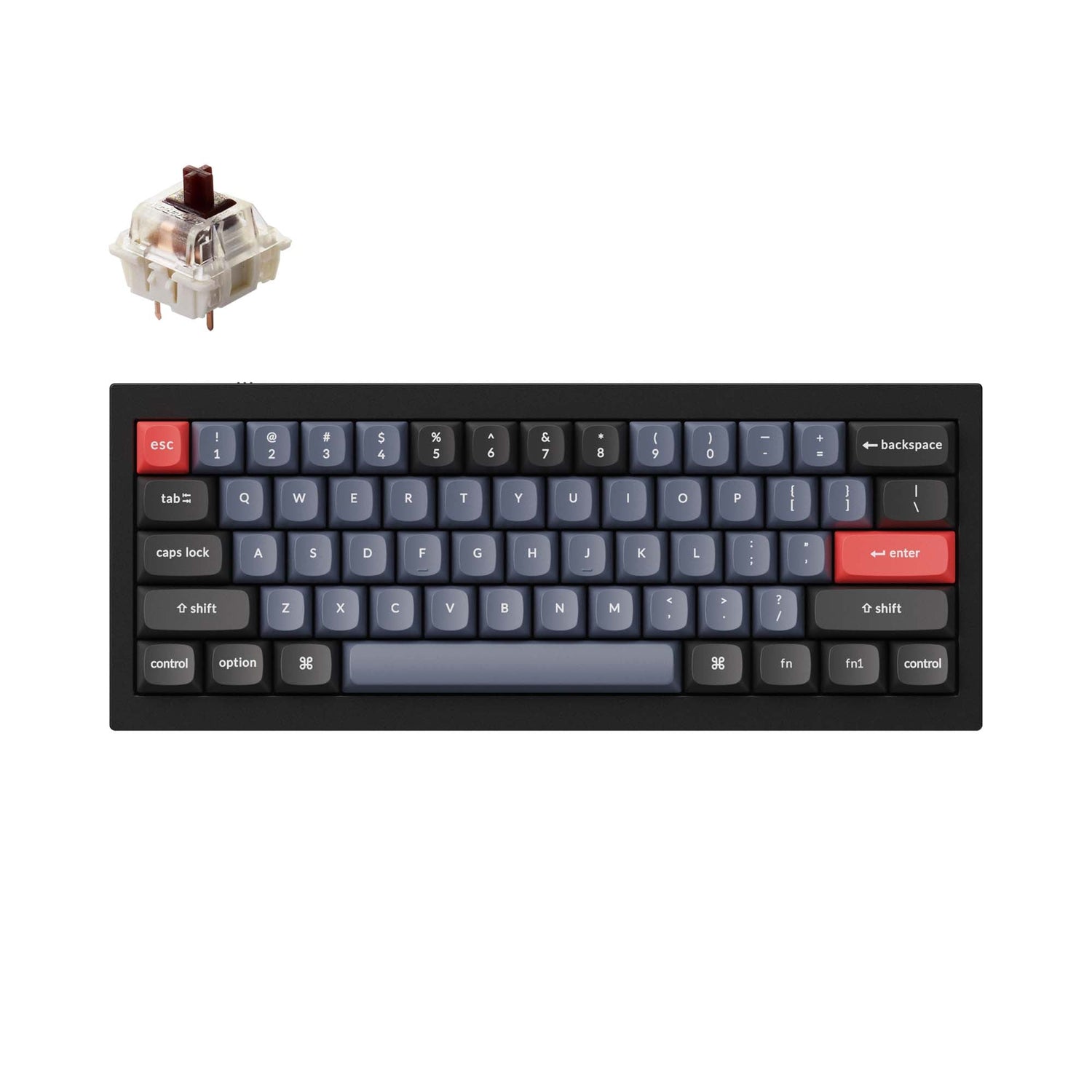

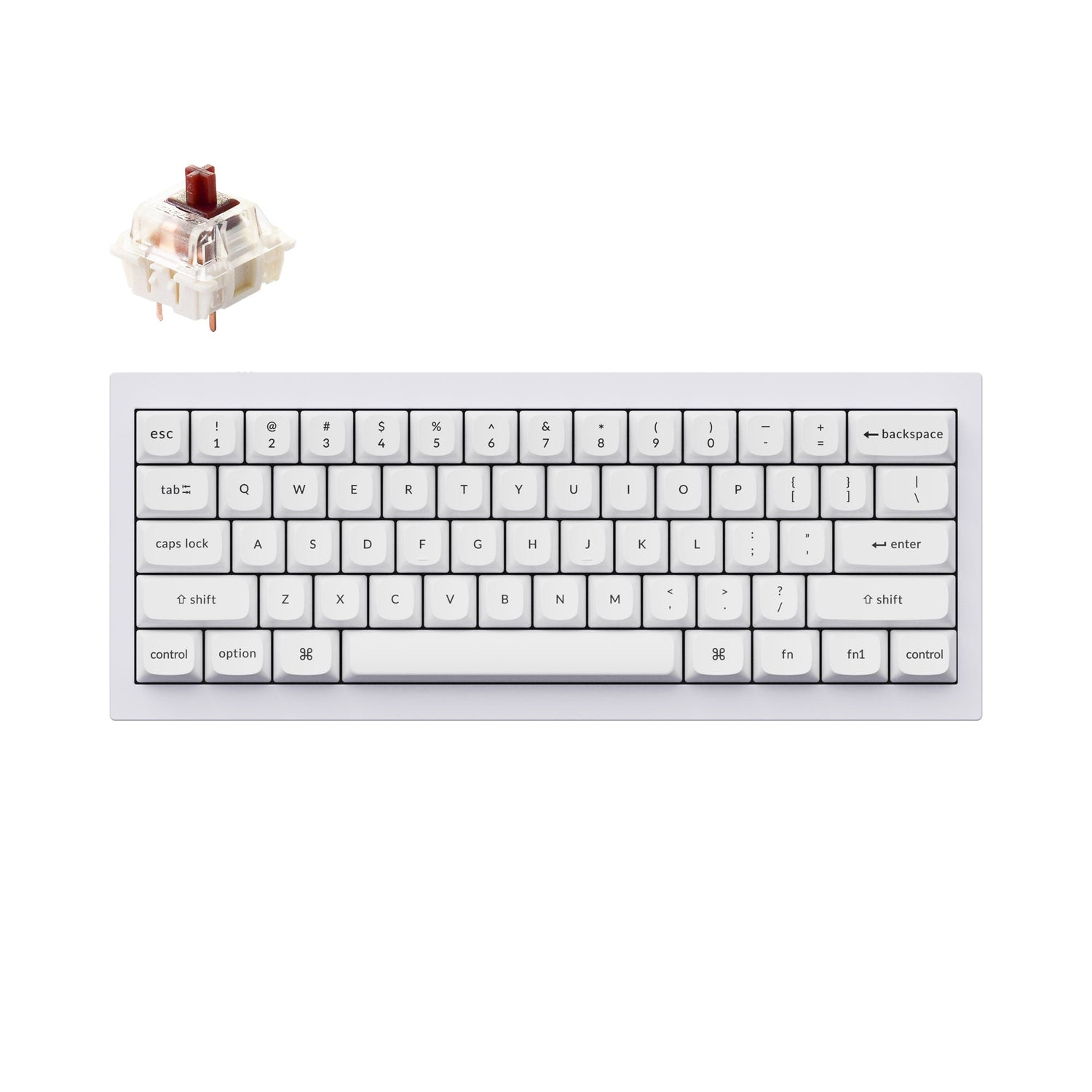

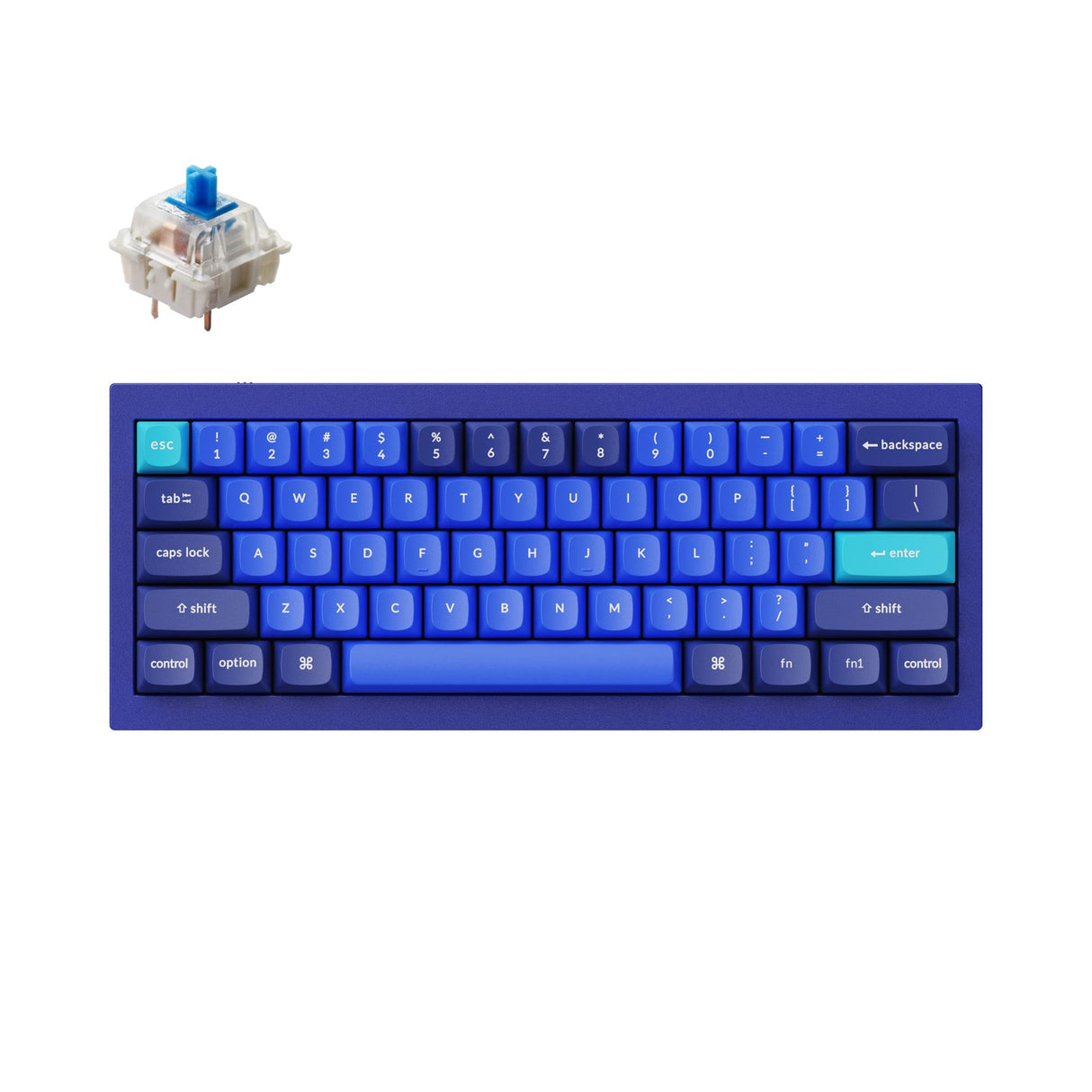

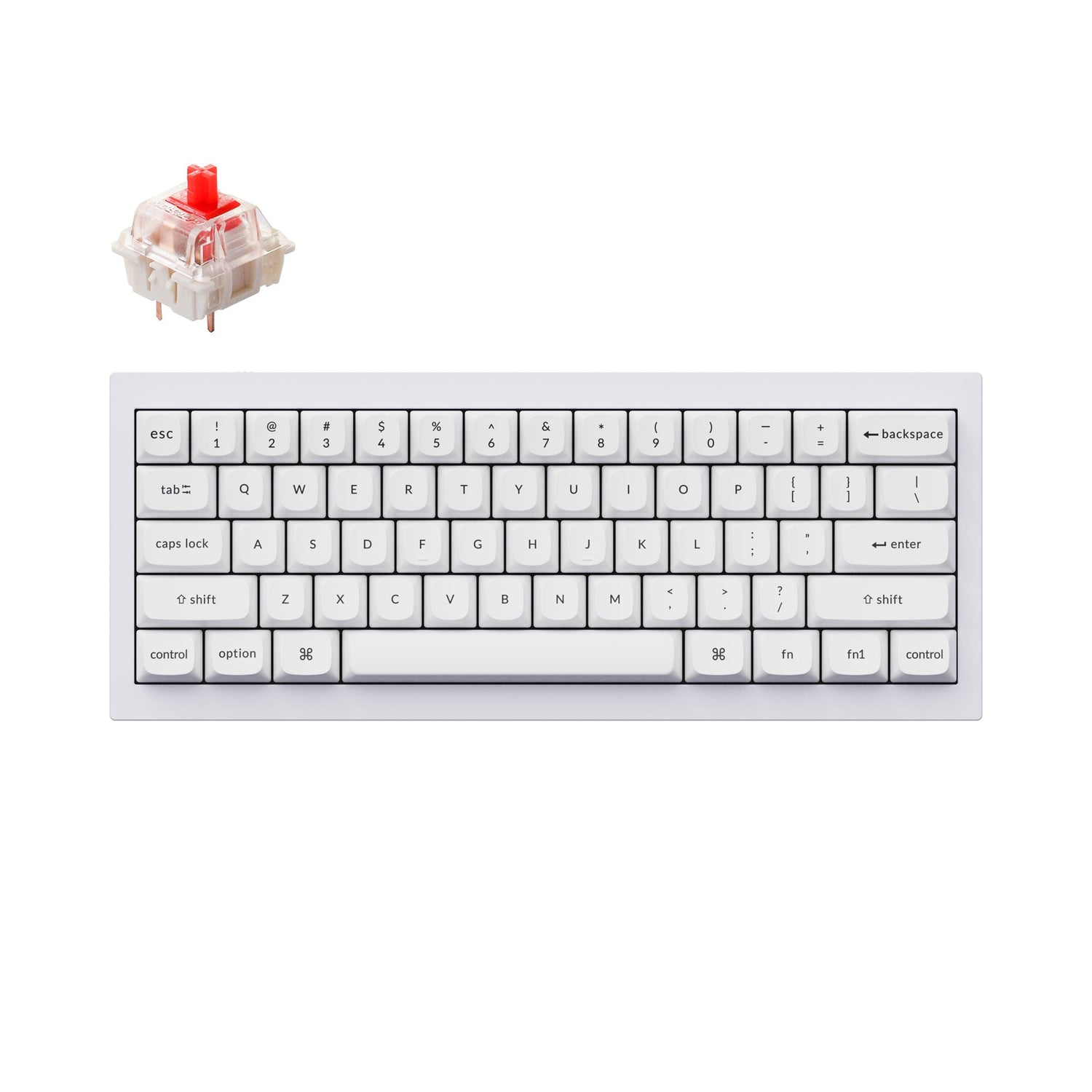

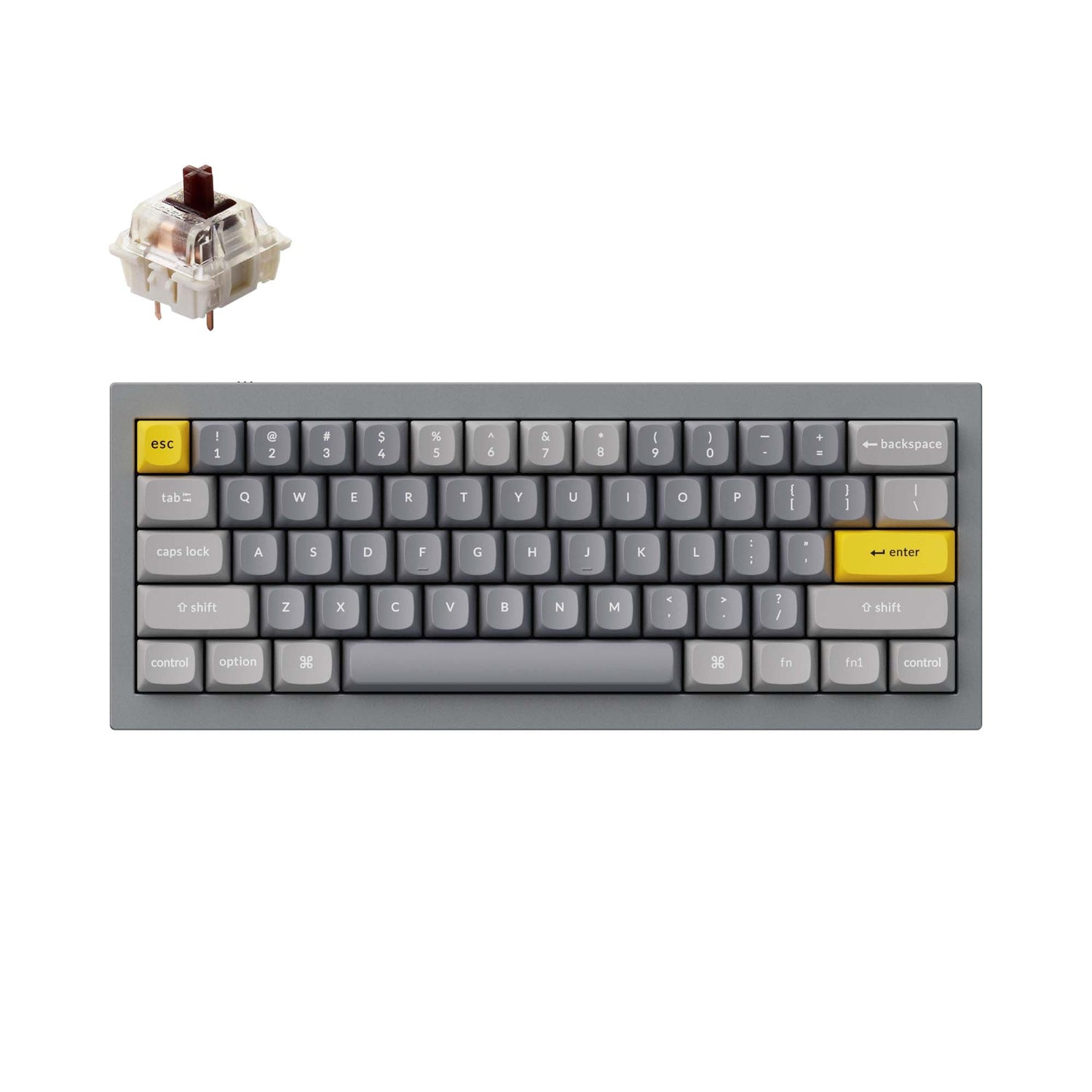

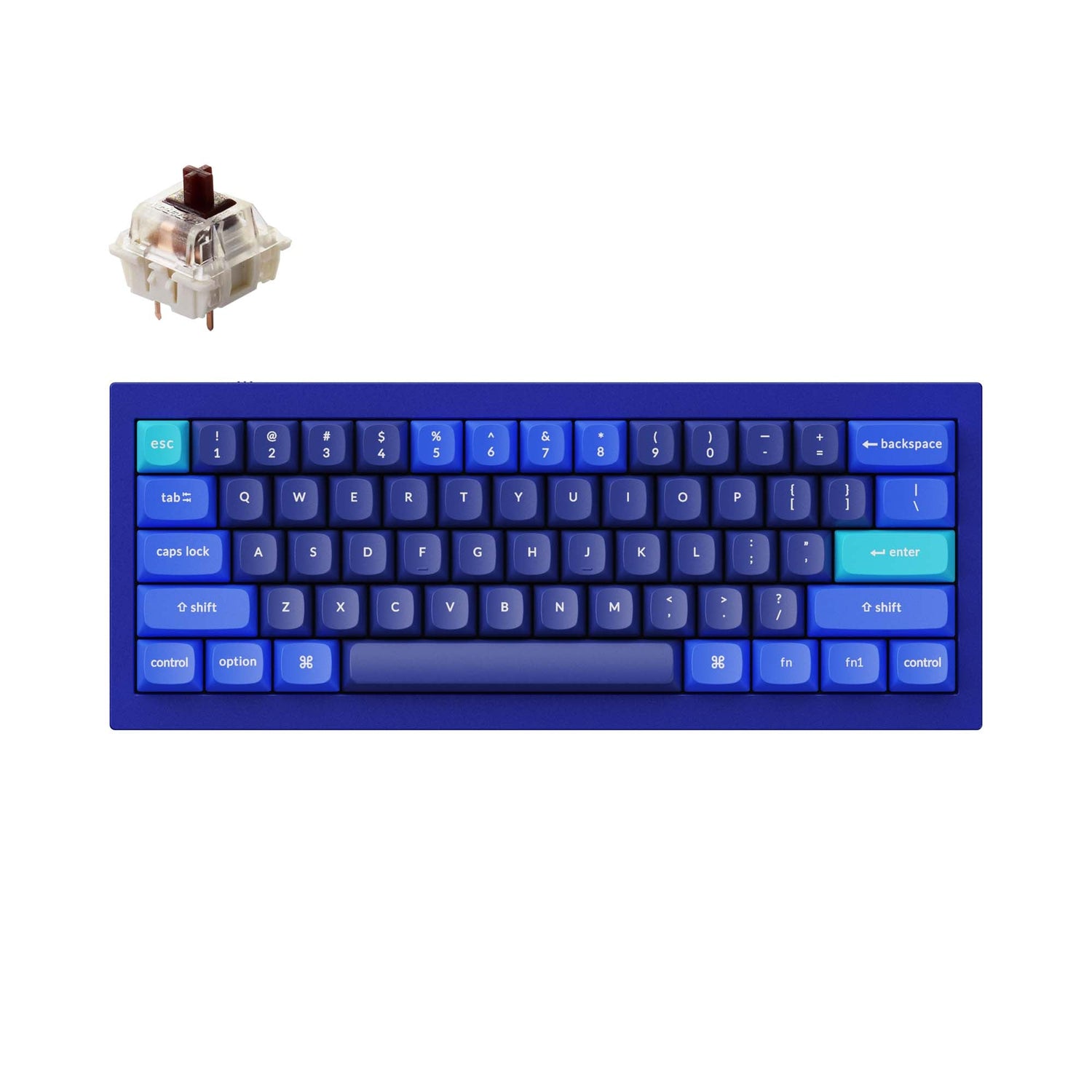

Keychron Q4 QMK Custom Mechanical Keyboard (US ANSI Keyboard)

SKU: Q4-C2
€156,00

Type
Color
Switches

The fully assembled version includes:
  • The keyboard PCB, the case, and the steel plate.
  • Double-shot OSA PBT keycaps (included Mac & Windows keycaps).
  • Gateron G Pro switches.

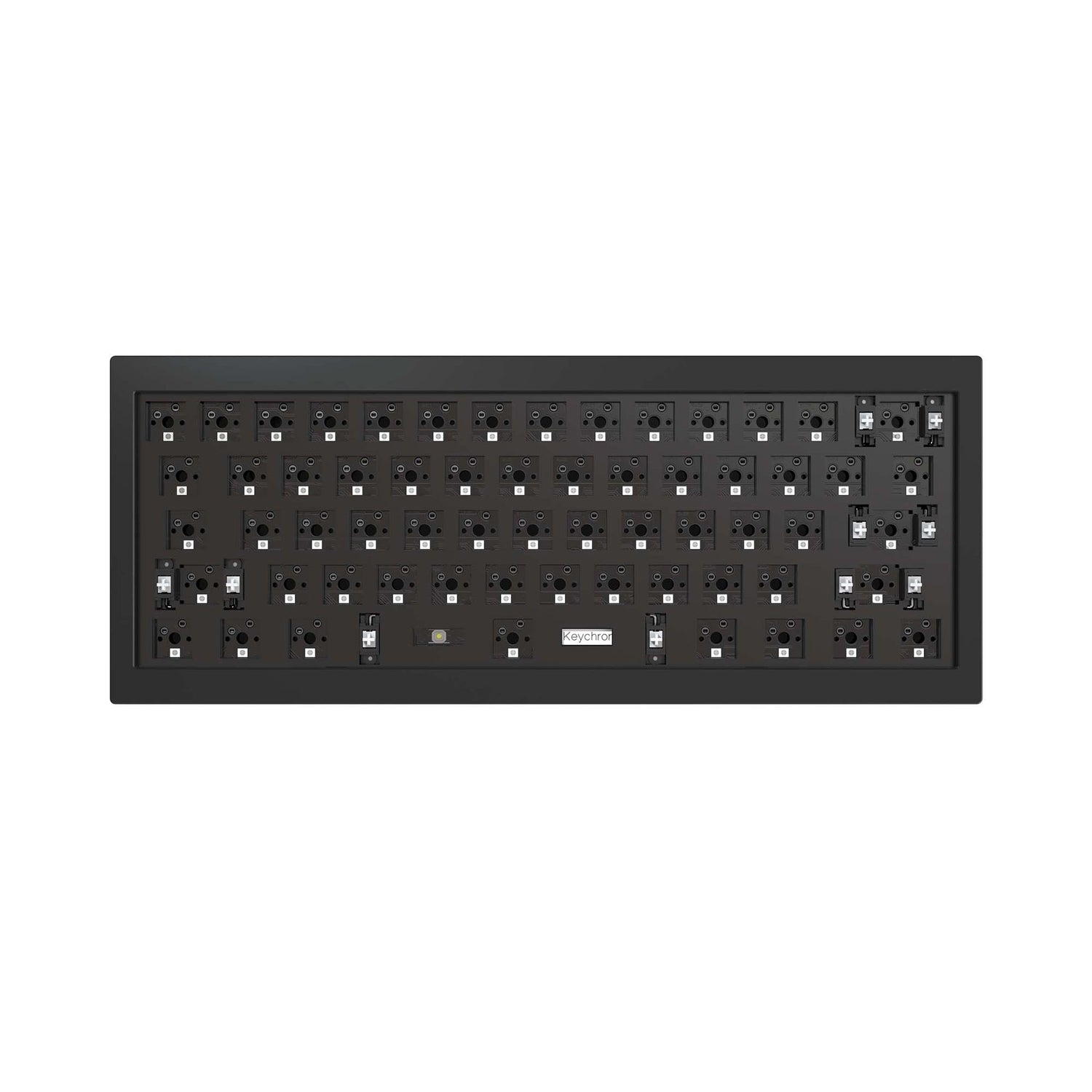

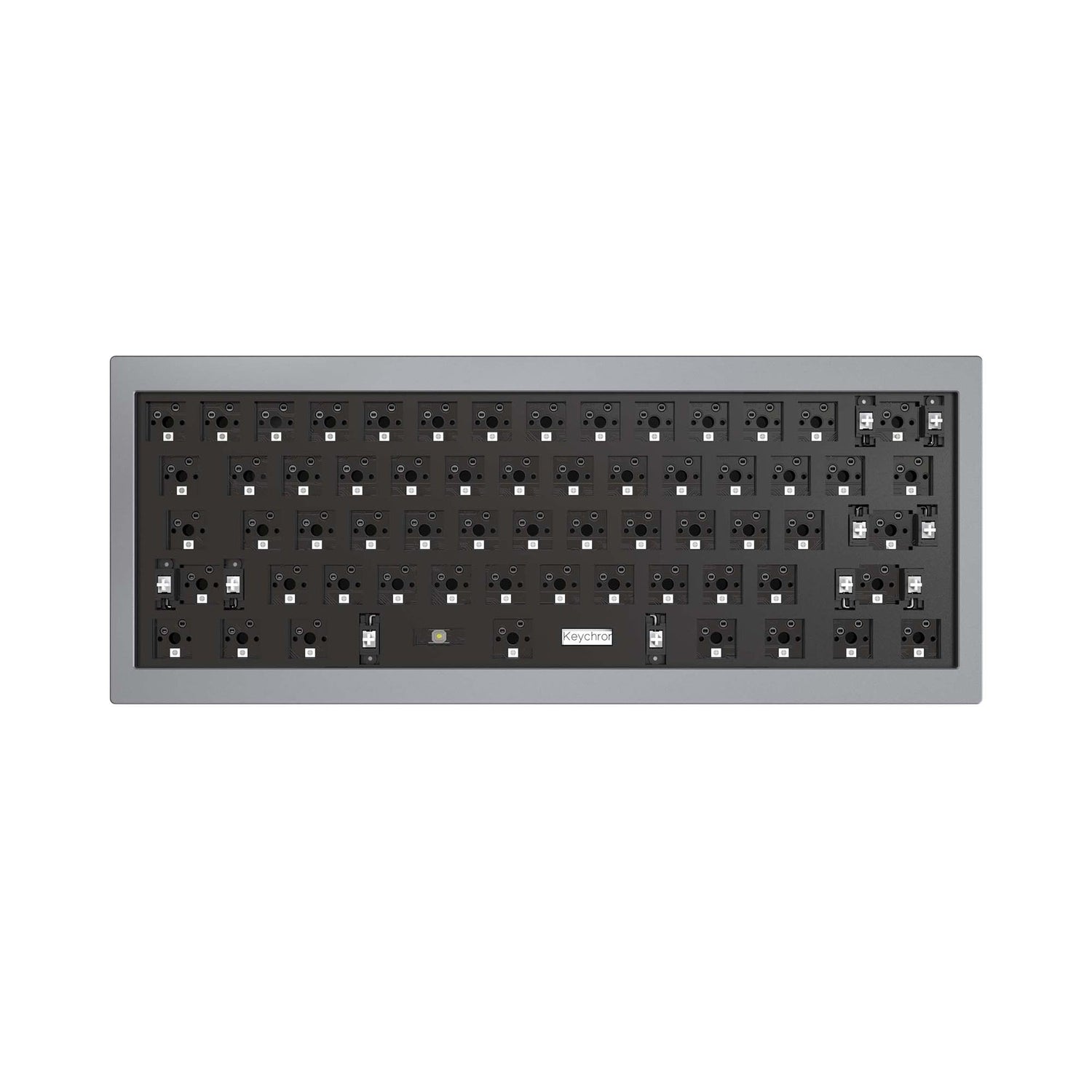

The barebone version does not include the keycaps and switches.
No discount codes can be used for Q4.

Please drop your email on "Notify Me When Available" if the product model is out of stock.


Keychron Q4 60% layout mini Custom Mechanical Keyboard

Keychron Q4

The Q4 is a mini custom all-metal keyboard ideal for a variety of situations and will upgrade your typing experience. With its 60% layout, full aluminum CNC machined body, double-gasket design, and QMK/VIA support, the Q4 is the ultimate choice for the mini keyboard.

Keychron Q4 60% layout mini Custom Mechanical Keyboard
Keychron Q4 60% layout mini Custom Mechanical Keyboard
Keychron Q4 60% layout mini Custom Mechanical Keyboard

Choose the keycaps, switches, and more accessories for your Q4

A Refined Piece Of Metal Art

The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q4.

Keychron Q4 60% layout mini Custom Mechanical Keyboard

All-Around Customizable Keyboard

To build a fully customizable keyboard, we designed every component easily assembled. Therefore, you can customize and adjust each component you want.

Keychron Q4 60% layout mini Custom Mechanical Keyboard

Double Gasket Design

The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the sound resonance between the metals and reduce the noise of the impacted metals. This design allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.

Keychron Q4 60% layout mini Custom Mechanical Keyboard
Keychron Q4 60% layout mini Custom Mechanical Keyboard

An Epic Core Inside The Keyboard

A brand new ultra-low-power MCU Arm structure that is powerful and armed with 128K Flash to provide more flexibility for developers. The polling rate is up to 1000 Hz out of the box, which makes latency non-existent for the competitive game.

OSA Profile Double-shot PBT Keycaps

For the new double-shot PBT keycaps, we built a new profile. It has a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

Keychron Q4 60% layout mini Custom Mechanical Keyboard
Program Q1 Max with QMK
launcher__PID:d730f5d3-a618-40f3-b580-f4130947594c

Program with QMK & Launcher.

Endless possibilities for a fluid workflow thanks to its ability to remap any key, and create macro commands, shortcuts, or key combinations through the Keychron Launcher Web App.

Click here to use Keychron Launcher

* Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.

Hot-swappable.

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.

South-facing RGB LED Lights.

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

Note: The Q4's top case has sharper corners to make it much more compatible with third-party keycaps.

Keychron Q4 60% layout mini Custom Mechanical Keyboard

Pre-lubed Gateron G Pro Switch

The optimized molded switch with more precise positioning and less wobble will undoubtedly improve the feel at your fingertips. With the fully assembled Q4 version fitted with factory pre-lubricated Gateron G Pro switches, a smoother travel experience is guaranteed for you.

Keychron Q4 60% layout mini Custom Mechanical Keyboard
Keychron Q4 60% layout mini Custom Mechanical Keyboard

All New Screw-in PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron Q4 also supports third-party stabilizers, including Cherry or Durock.

Looking for ISO Layout?

The Q4 ISO collection comes with fully assembled keyboards with 🇬🇧UK, 🇩🇪German, 🇩🇰🇫🇮🇮🇸🇳🇴🇸🇪Nordic, 🇨🇭Swiss, 🇫🇷French, and 🇪🇸 Spanish layout, and the “Barebone ISO" option is suitable for all ISO countries (e.g.: 🇮🇹Italy, 🇵🇹Portuguese, 🇭🇺Hungary, etc.) to build their keyboard with keycaps in their preferred languages and switches.

Keychron Q4 60% ISO layout mini Custom Mechanical Keyboard

Typing Sound Test

Keychron Q4 60% layout mini Custom Mechanical Keyboard

Different Color Ways

Keychron Q4 60% layout mini Custom Mechanical Keyboard

What's in the box?

Keychron Q4 60% layout mini Custom Mechanical Keyboard
Keychron Q4 60% layout mini Custom Mechanical Keyboard

Specs

Width121 mm
Length303 mm
Front Height19.7 mm  (without keycaps)
Back Height33.8 mm (without keycaps)
Feet Height2.7 mm
Angle6.5°
Weight1500g ± 10g (Fully assembled weight)
Body MaterialFull CNC machined aluminum
PlateSteel
Polling Rate1000 Hz
KeycapsDouble-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape) (Fully Assembled version)
MCUUltra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)
BacklightSouth-facing RGB LED
SwitchGateron G Pro (Fully Assembled version)
Switch SupportCompatible with most of the 3 pin & 5 pin MX style mechanical switches such as Gateron, Cherry MX and Kailh, etc.
ConnectivityType-C cable
CableType-C cable + Type-A to Type-C adapter
StabsScrew-in PCB Stabs
Operating Environment-10℃ to 50℃
Keychron Q4 User Guide

Learn more about the Keychron Q4 such as the Q4 shortcuts, assembling the Q4, factory reset, and more in the FAQ section.
