Keychron Q2 QMK Custom Mechanical Keyboard ISO Layout Collection
Keychron Q2 QMK Custom Mechanical Keyboard ISO Layout Collection - Fully Assembled Knob (Carbon Black) / UK-ISO / Gateron G Pro Red is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The fully assembled knob version includes:
- The keyboard PCB, the case, and the steel plate.
- OSA Profile ABS backlight shine-through keycaps (included Mac & Windows keycaps).
- Gateron G Pro switches.
Keychron Q2 QMK custom mechanical keyboard ISO layout collection comes with the UK, German, Nordic, Swiss, French, and Spanish layout.
No discount codes can be used for Q2 ISO layout version.
Please drop your email on "Notify Me When Available" if the product model is out of stock.
Keychron Q2
ISO Layout Version
The Q2 is a fully customizable mechanical keyboard with a compact layout that pushes your typing experience to the next level. With a 65% layout, full metal body, and double-gasket design, the Q2 is designed for a personalized experience and premium typing comfort.
Choose the keycaps, switches, and more accessories for your Q2 ISO layout keyboard
Q2 ISO Layout Version
The Keychron Q2 QMK custom mechanical keyboard ISO layout collection comes with the UK, German, Nordic, Swiss, French, and Spanish layouts. Each Q2 ISO layout keyboard is also equipped with extra keycaps that fully satisfy your needs.

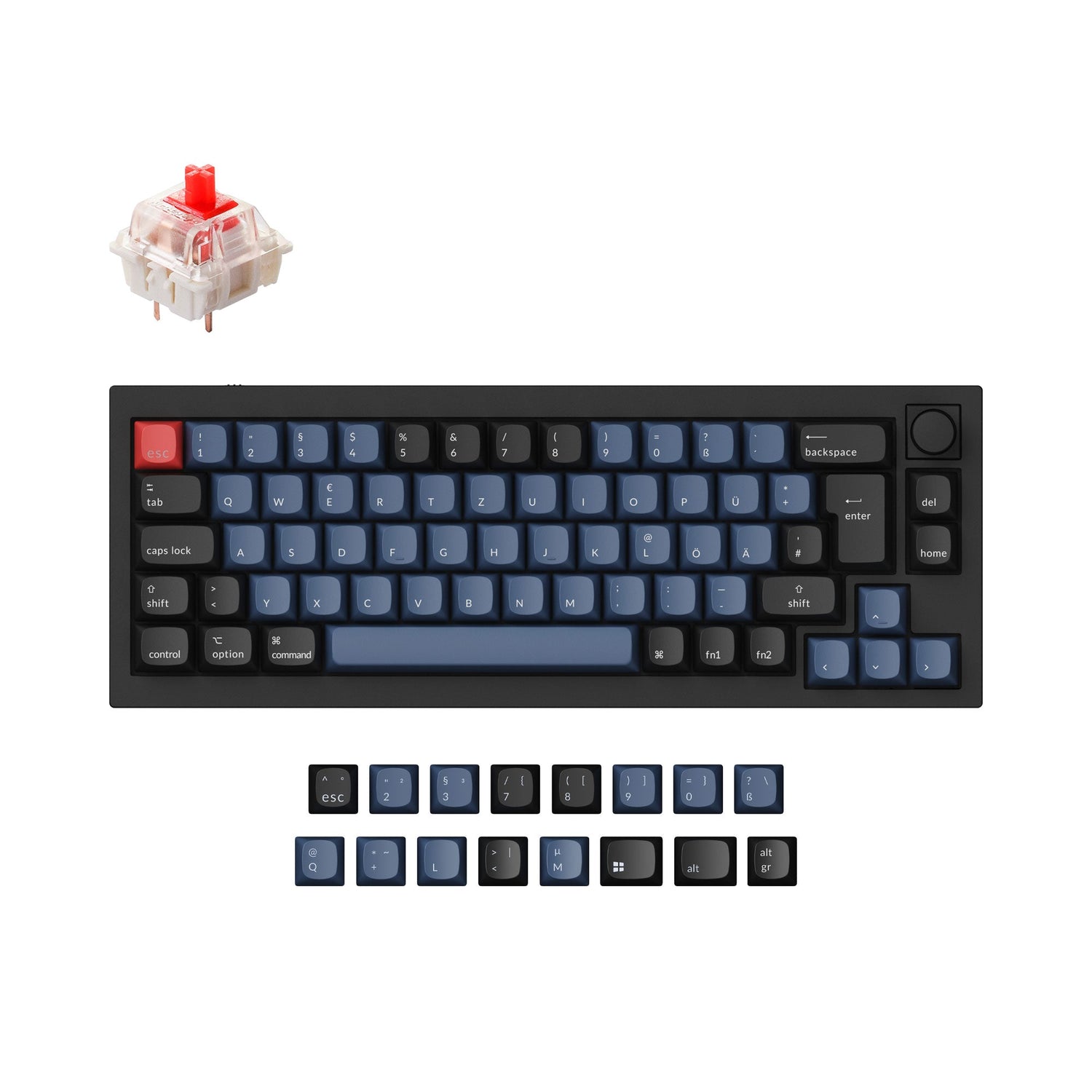

🇩🇪 DE-ISO Layout

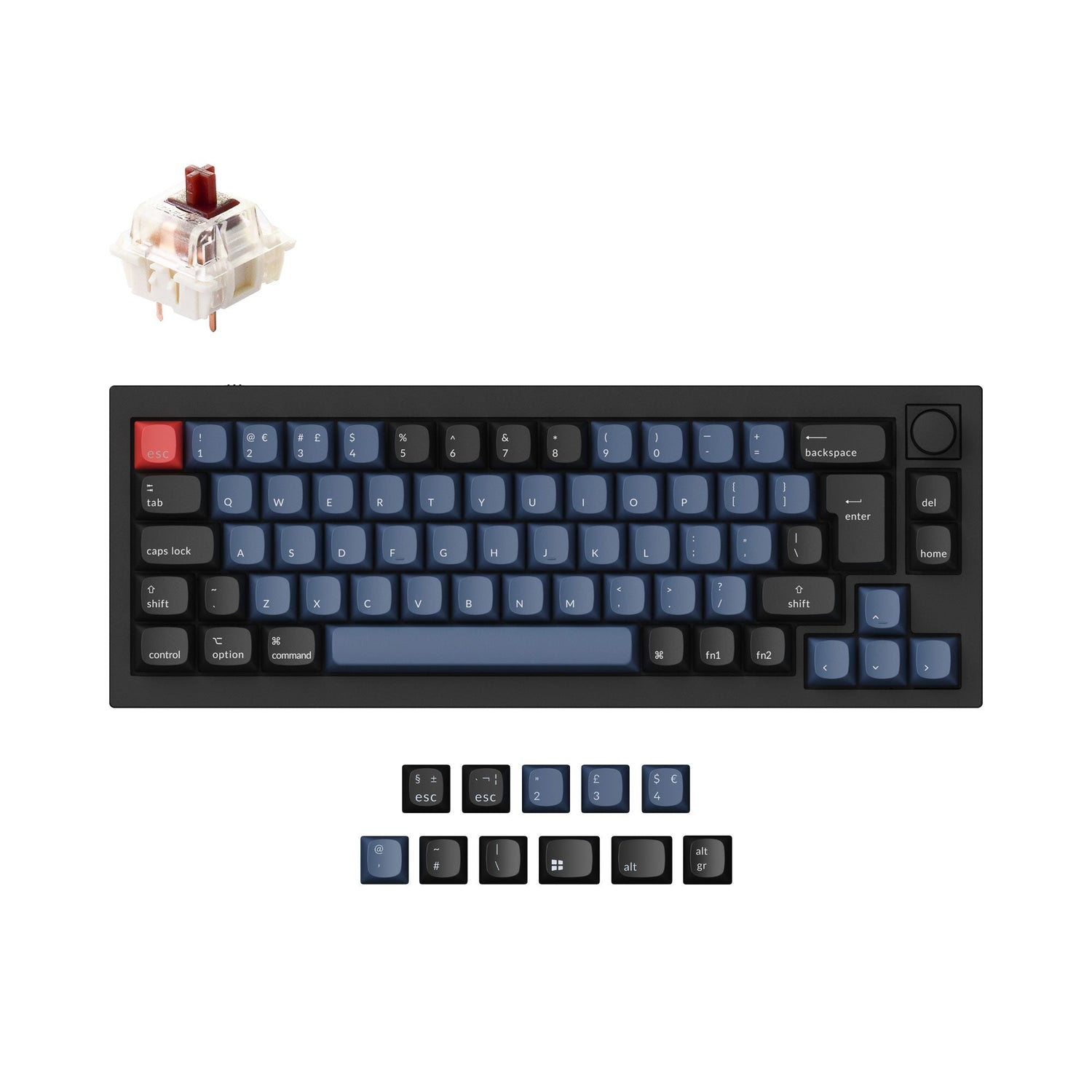

🇬🇧 UK-ISO Layout

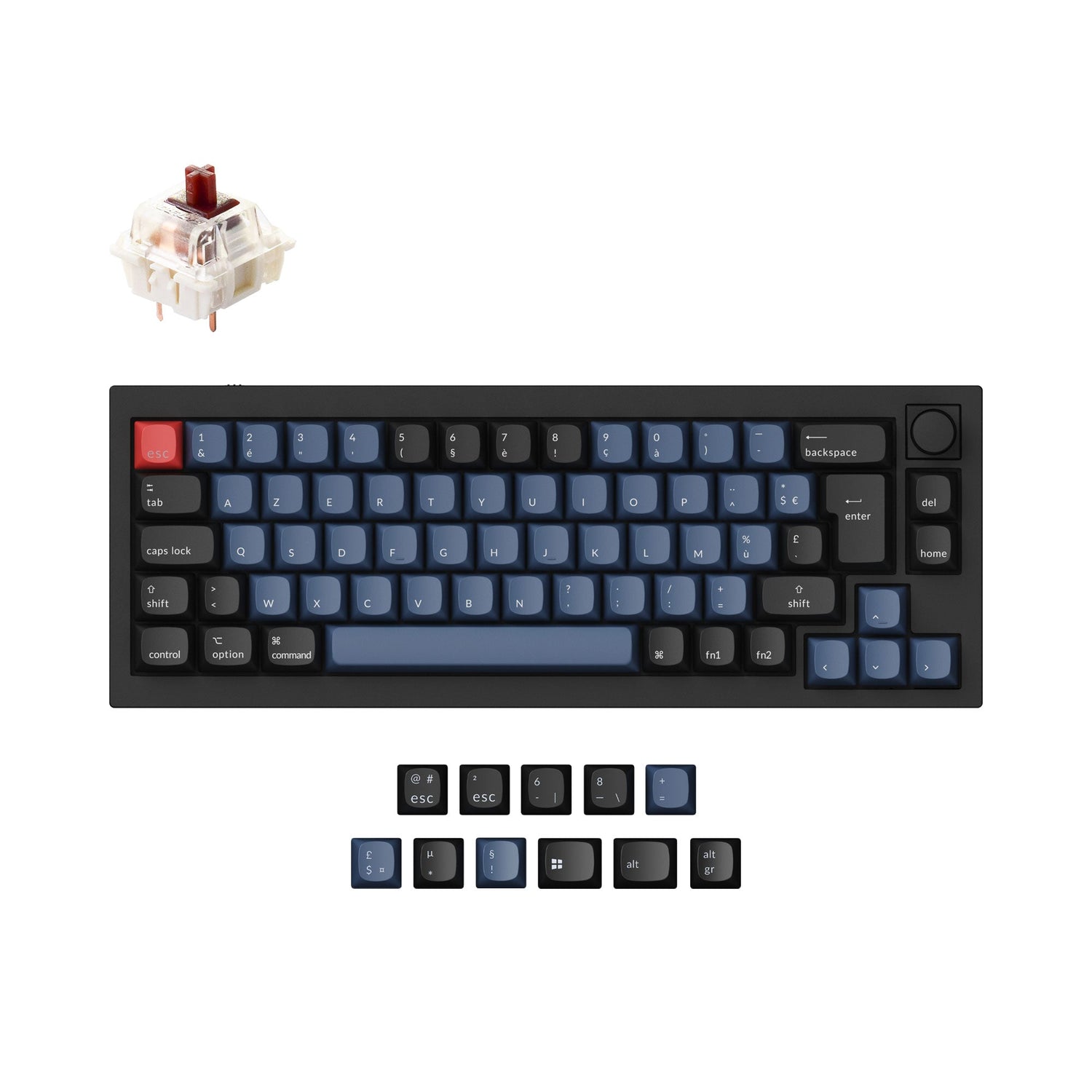

🇫🇷 FR-ISO Layout

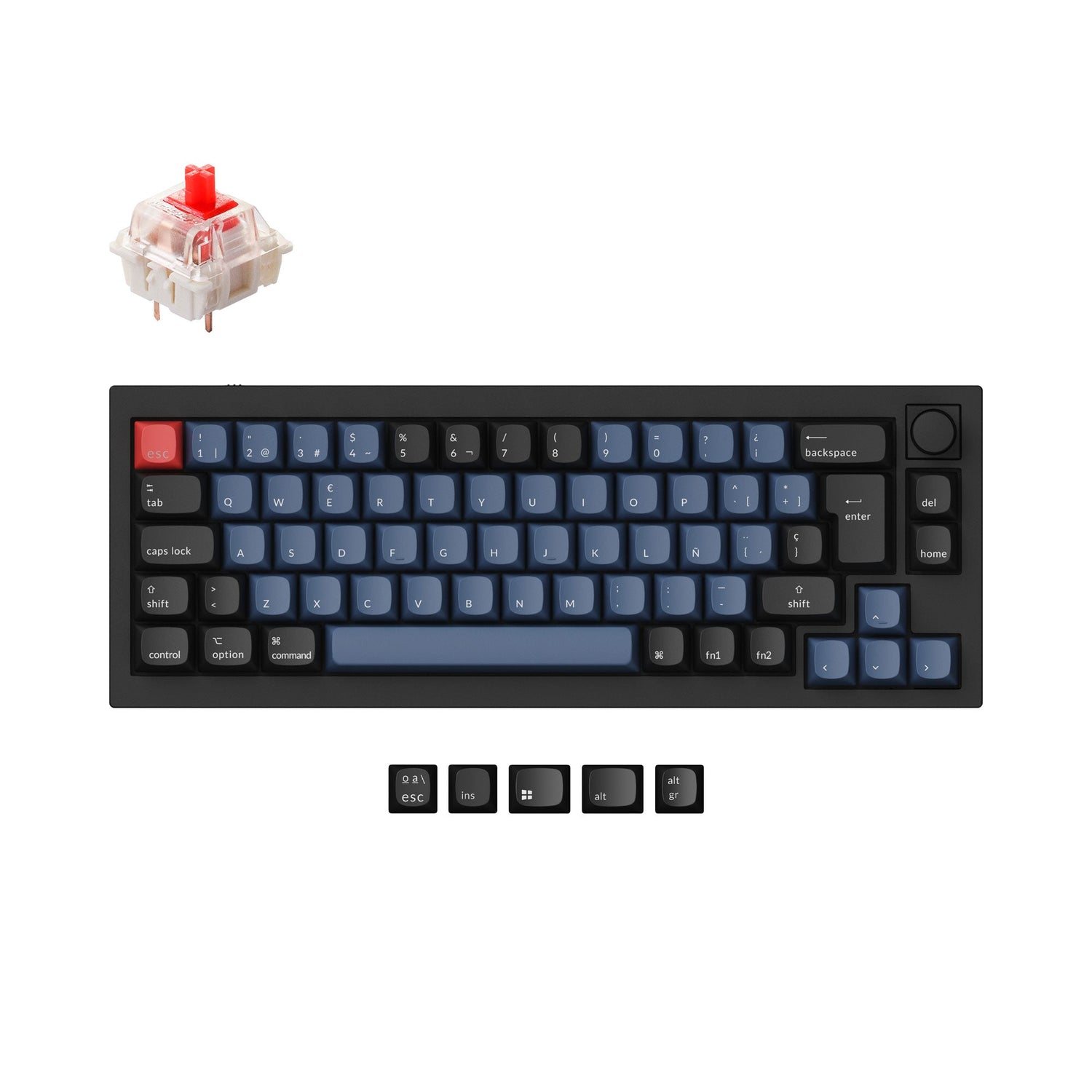

🇪🇸 ES-ISO Layout

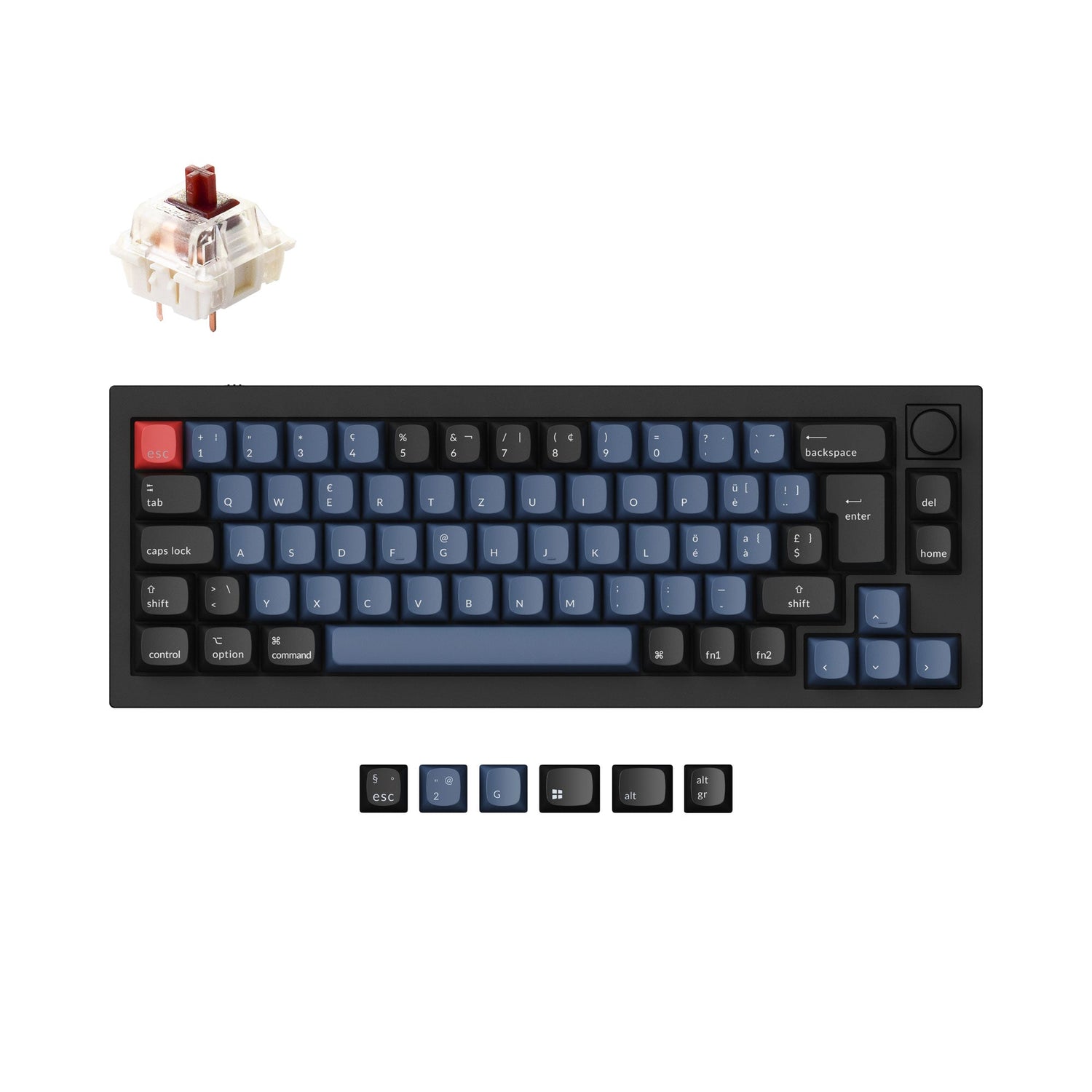

🇨🇭 Swiss-ISO Layout

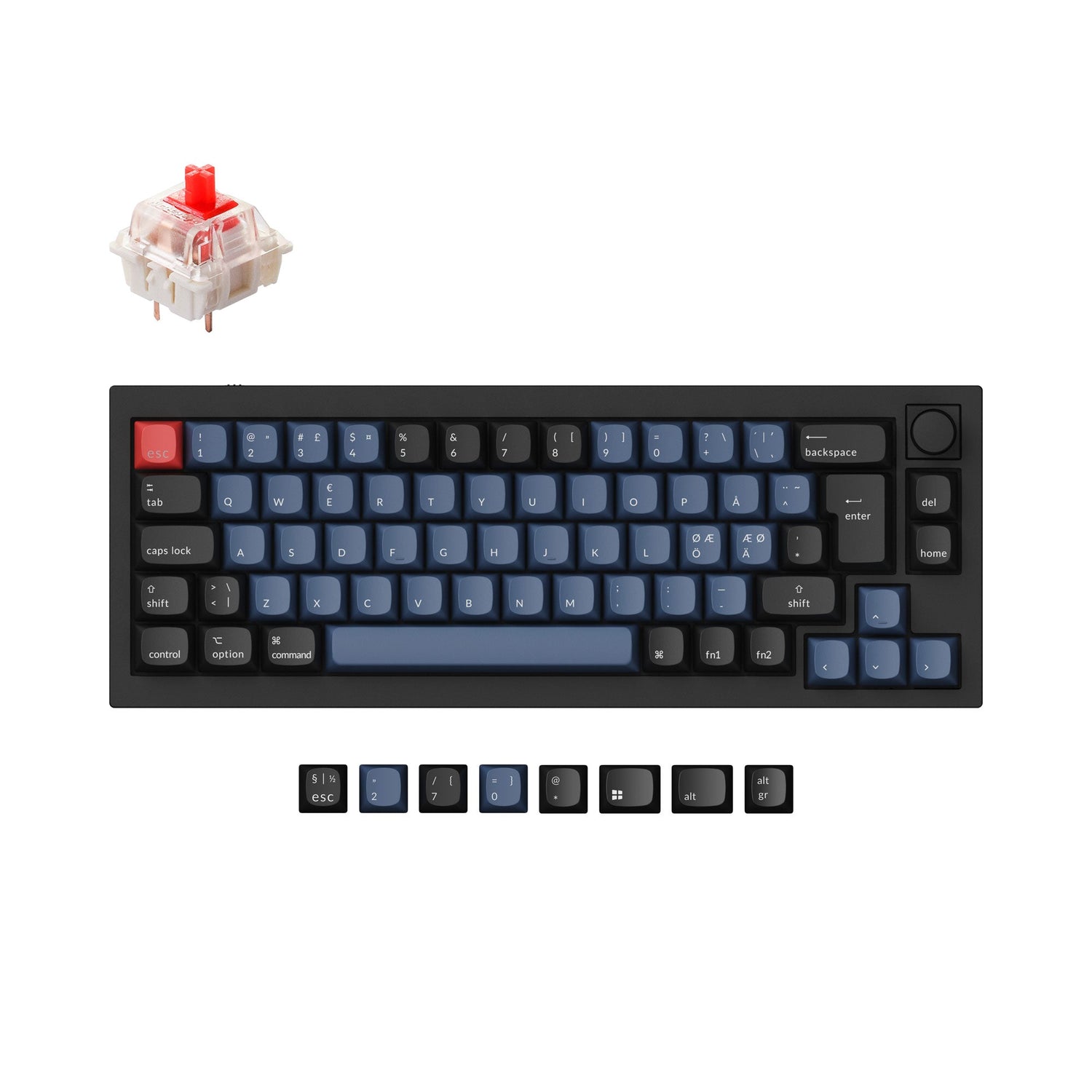

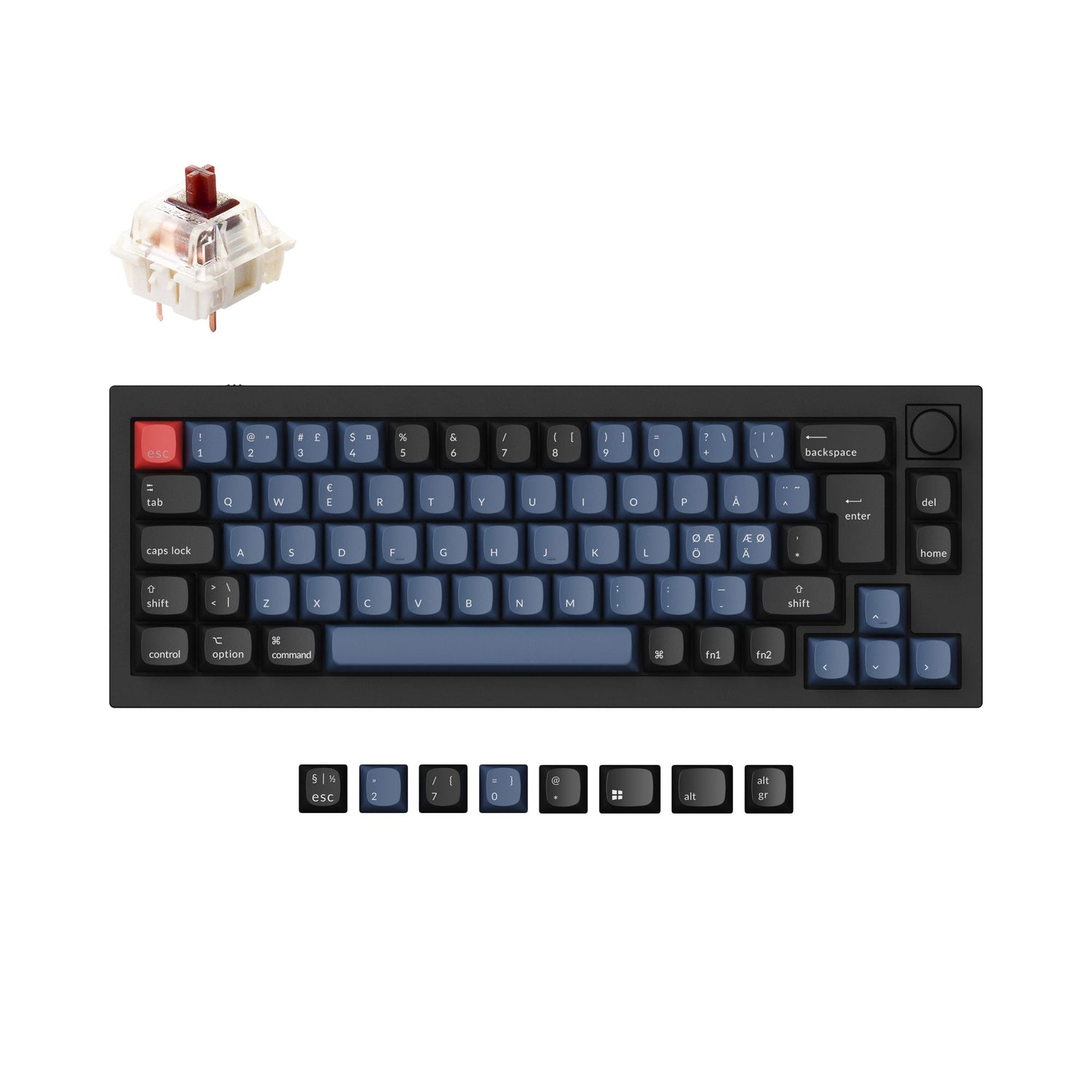

🇩🇰🇫🇮🇮🇸🇳🇴🇸🇪 Nordic-ISO Layout
With keycaps for macOS installed on Q2 DE-ISO layout.
With keycaps for Windows installed on Q2 DE-ISO layout.
Expertly Crafted And Compact
To create a more compact and smaller keyboard for your desk, we bring you the Q2. The entire piece is crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make the work of art that is the Q2.
All-Around Customizable Keyboard
To build a fully customizable keyboard, we designed every component to be able to assemble easily. Therefore, you can customize and adjust each component you want.
Double-Gasket Design
The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the sound resonance between the metals and reduce the noise of the impacted metals. This Double-Gasket Structure allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.
Programmable Knob
Designed to enhance your creative workflow, the premium rotary encoder allows you to customize your favorite keys and macros through the innovative VIA software with ease.
You can easily customize the Q2's knob to your desired key or macro commands like zooming in/out, adjusting screen brightness, brush size, opacity, volume, selecting video clips or photos, or backlight hue.
Editing keymap on VIA
Zoom in and out via the knob controller
OSA Profile ABS Backlight Shine-Through Keycaps
To further leverage your typing experience, the Q2 ISO version comes with our unique OSA profile (OEM profile with spherical angle) and ABS backlight shine-through keycaps that aim to provide a more comfortable fingertip feel and a fantastic backlight shine-through effect.
Switch layouts between macOS & Windows
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron Q2 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
Program Q2 with QMK & VIA
With full QMK and VIA support, you can program and remap each key on the keyboard with ease. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob and more.
A brand new ultra-low-power Arm Cortex-M4 32-bit STM32L432 MCU which is powerful, and armed with 128K Flash will provide more flexibility for developers.

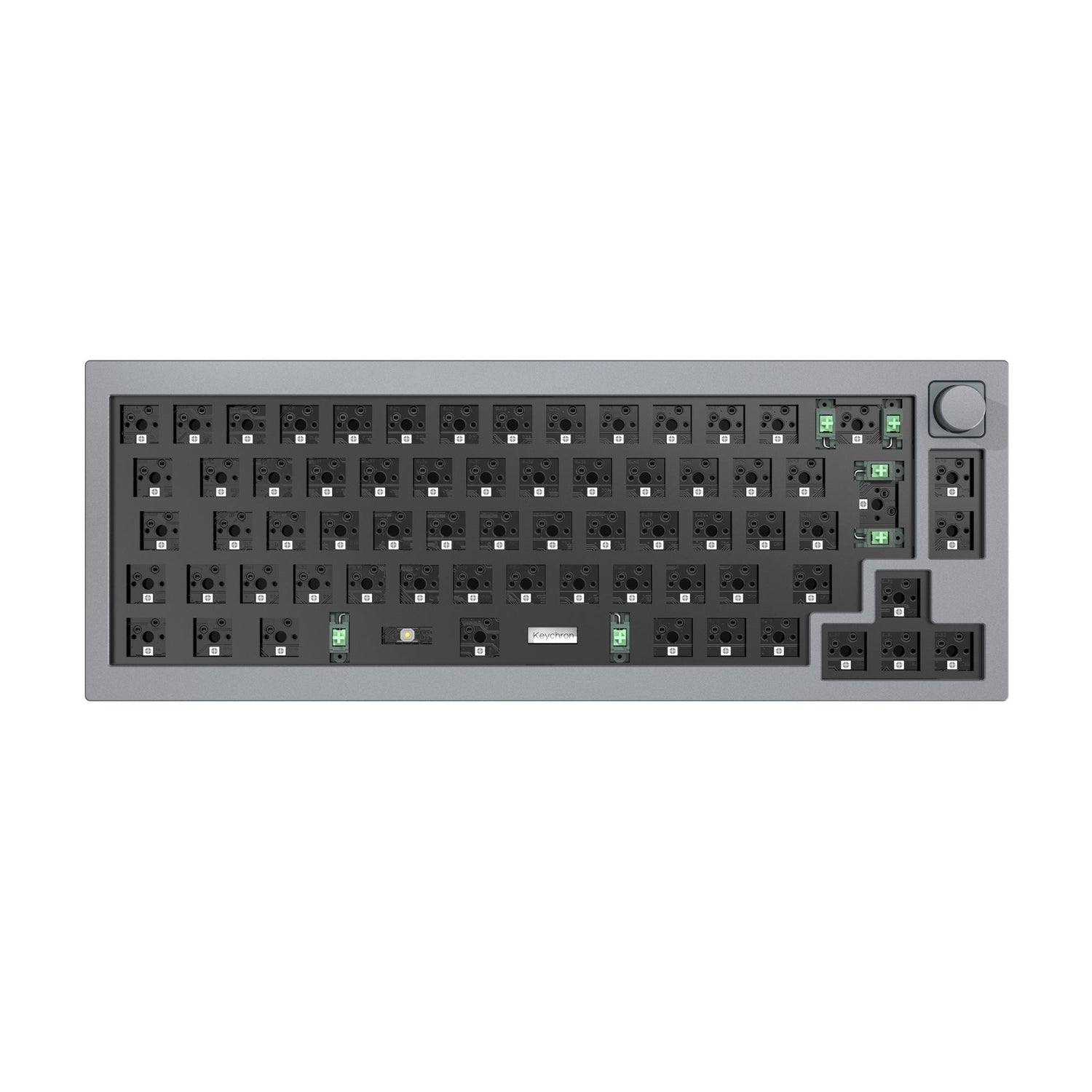

Hot-swappable
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.
South-facing RGB LED Lights
The south-facing RGB is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the user installs OEM or Cherry-profile alternative keycaps on their keyboard.
Note: The Q2's top case has sharper corners to make it much more compatible with third-party keycaps.
Pre-lubed Gateron G Pro Switch
Every detail counts when it comes to a premium typing experience. An optimized mold with more precise positioning and less wobbliness will certainly improve your fingertip feel. Pair that together with factory pre-lubed Gateron G Pro switches, a smooth travel experience is guaranteed.
All New Screw-In PCB Stabilizers
The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less wobbly. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron Q2 also supports third-party stabilizers including Cherry or Durock.
Typing Sound Test
What's in the box?
Specs
Width | 121 mm |
---|---|
Length | 327.5 mm |
Front Heigh | 20 mm (without keycaps) |
Back Height | 33.8 mm (without keycaps) |
Feet Height | 2.7 mm |
Angle | 6.5° |
Weight | 1645 g ± 10g (Fully Assembled Version) |
Body Material | Full CNC machined aluminum |
Plate Material | Steel |
Polling Rate | 1000Hz |
Layout | DE-ISO, UK-ISO, Swiss-ISO, Nordic-ISO, FR-ISO, and ES-ISO |
Keycaps (fully assembled version) | OSA Profile ABS backlight shine-through keycaps |
---|---|
MCU | Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash) |
Switches | Gateron G Pro (Fully Assembled Version) |
Backlight | South-facing RGB LED |
Switch Support | Hot-swappable (5 pin & 3 pin) |
Stabs | Screw-in PCB stabs |
Connectivity | Type-C cable |
Cable | Type-C cable + Type-A to Type-C adapter |
Learn more about the Keychron Q2 such as the Q2 shortcuts, assembling the Q2, factory reset, and more in the FAQ section.
