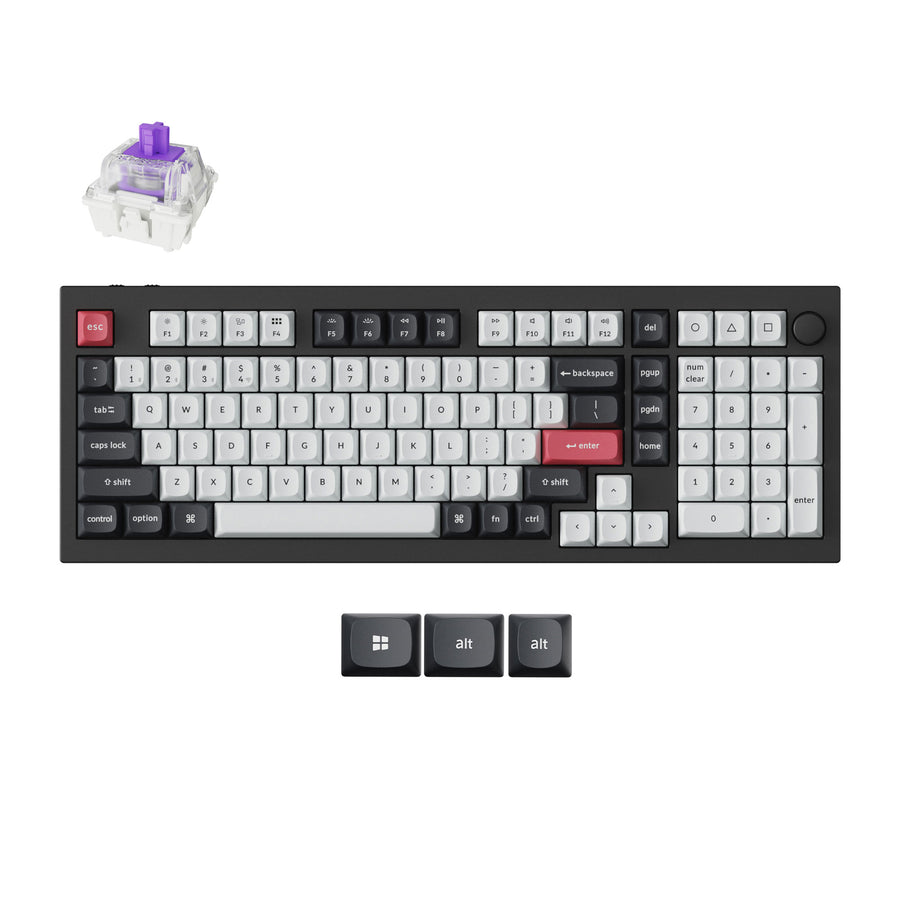

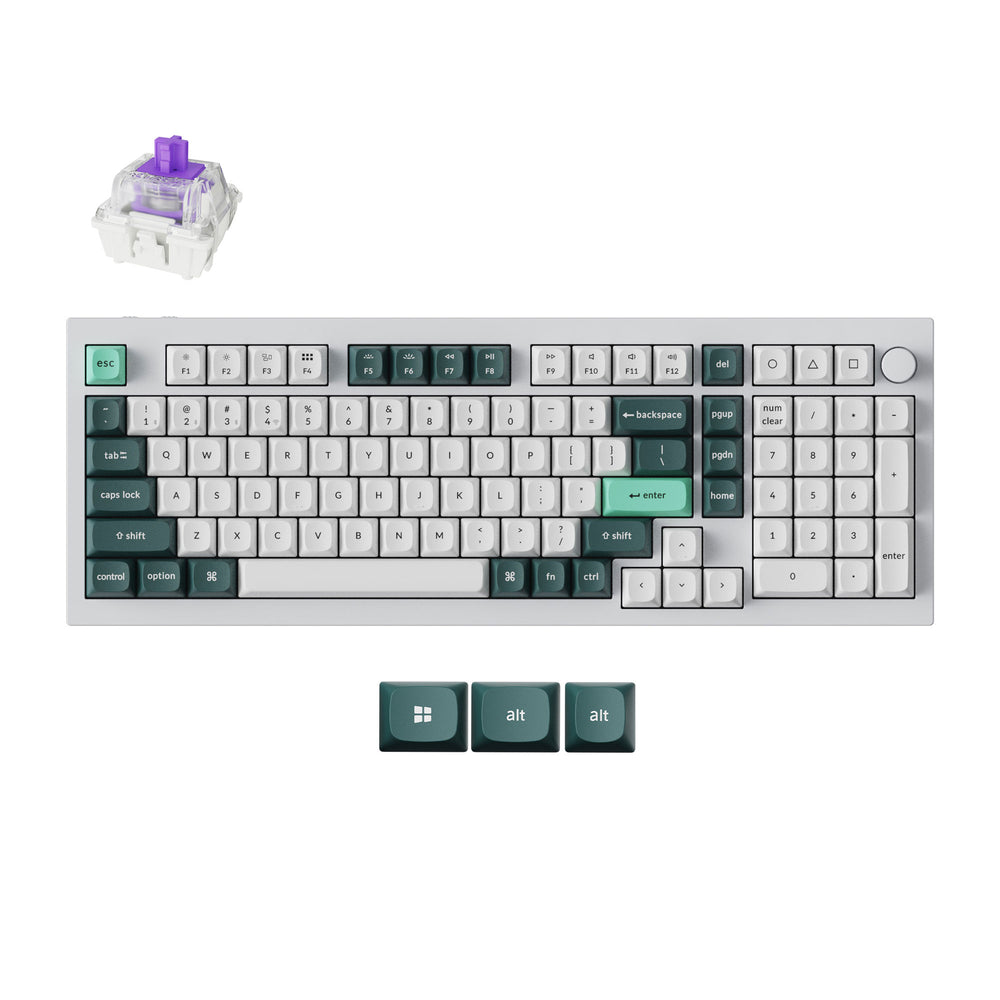

Keychron Q5 HE QMK Wireless Custom Keyboard (US Layout)

SKU: Q5H-M1
€223,00

Type
Color
Switches

The Fully Assembled version includes:

  • The keyboard PCB, the case, and the aluminum plate.
  • Keycaps (included Mac & Windows keycaps).
  • Adjustable-actuation-point Gateron 2.0 magnetic switches.

The Q5 HE is compatible exclusively with the Gateron Double-Rail Magnetic Switch. It does not support other magnetic switches such as the Gateron Magnetic Jade or Gateron KS-20 Magnetic switches.



          No discount codes can be used for the Q5 HE.




                Keychron Q5 HE Wireless QMK Custom Magnetic Switch Keyboard

                Keychron Q5 HE

                Meet the Q5 HE, a 96% layout wireless QMK custom keyboard equipped with Hall Effect Gateron double-rail magnetic switches. These switches provide a distinct advantage due to their unique mechanism, offering faster feedback, dynamic rapid triggering, and adjustable actuation points, resulting in epic enhancements for the gaming experience tailored to your individual preferences.

                Keychron Q5 HE Wireless QMK Custom Magnetic Switch Keyboard
                Keychron Q5 HE Wireless QMK Custom Magnetic Switch Keyboard

                In addition to the Hall Effect magnetic switches, the Q5 HE introduces a 2.4G connection mode with an impressive 1000Hz polling rate, further ensuring a lightning-fast gaming experience. But that's not all; it also boasts premium features such as Bluetooth connectivity, a double-gasket design, enhanced acoustic foams, an all-aluminum body, PBT keycaps, and more.

                Q1_HE_icons.webp__PID:daf7b8ca-d4c7-4793-910b-e8cc0c1a5ccd

                Choose the keycaps, switches, and more accessories for your Q5 HE.

                Gateron Double-Rail Magnetic Hall Effect Switches

                With the first invented dual-rail structure, and the special pre-lubed, these switches ensure unparalleled stability and smoothness like never before.

                Gateron 2.0 Magnetic Switch
                Gateron 2.0 Magnetic Switch

                Installed with an optimal magnetic sensor with a sensitivity of only 0.1 mm, it offers more precious feedback. You can customize actuation points and assign multiple actions to a single key based on the travel depth you personalized, enhancing gameplay and providing a customized typing sensation.

                Keychron Q3 HE QMK Wireless Custom Keyboard

                Adjustable Actuation Point

                Customize each key with ultra-precise 0.1 mm sensitivity and adjustable actuation points ranging from 0.2 to 3.8 mm. Setting the actuation point to 0.8 mm or 1.0 mm shortens the trigger and increases sensitivity. The reset occurs once you release the key, ensuring a faster response.

                Dynamic Rapid Trigger

                Activate or deactivate keys based on travel distance rather than fixed points. They activate precisely upon pressing and deactivate upon letting go, allowing for immediate repetition of keystrokes in mod-motion. This enables you to execute a chain of actions in quick succession during gameplay.

                Keychron Q3 HE QMK Wireless Custom Keyboard

                Multiple Actions, One Keystroke

                Assign four actions to a single key based on the depth of your press. For example, lightly press a key to walk forward in a game, and press deeper to run. Additionally, releasing the key also supports two-stage settings. This allows for smoother, personalized combinations that can give you an edge in competitive gaming.

                Keychron Q3 HE Four-In-One Action Keys
                Keychron Q3 HE Four-In-One Action Keys

                Reassign Keys By The Keychron Launcher Web App

                With the Keychron Launcher web app, you can effortlessly remap keys, adjust actuation points, set the magnetic switches, create personalized macro commands, shortcuts, and key combinations for each key.

                Keychron Q5 HE Launcher

                2.4 GHz & Bluetooth Connection

                Experience peak gaming performance on the fly with the Q5 HE's 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the Q5 HE via Bluetooth 5.2 to three devices.

                Keychron Q5 HE QMK Wireless Custom Keyboard

                A Piece Of Metal Art

                The entire metal body is crafted from 6063 aluminum, a material known for its increased durability, stability, and premium feel. Not only is this aluminum more resistant to physical damage, wear, and tear, but it is also environmentally friendly and recyclable. These qualities ensure both aesthetic appeal and a commitment to sustainability.

                Keychron Q5 HE QMK Wireless Custom Keyboard

                Customize Every Part

                To build a fully customizable keyboard, we designed every component to be able to assemble easily. Therefore, you can customize and adjust each component as you wish.

                Structure of  Keychron Q5 HE QMK Wireless Custom Keyboard

                Double-Gasket Design

                Silicone pads between the top and bottom cases reduce acoustic resonance, maintaining gasket flexibility and enhancing typing sound. The keyboard's bottom has an acoustic pad, improving sound quality with a slight impact on flexibility. Users seeking more flexibility can opt to remove the acoustic pad.

                Keychron Q5 HE QMK Wireless Custom Keyboard

                An Epic Core Inside The Keyboard

                Engineered with a powerful chip (MCU) with 256K flash and QMK open-source firmware to provide more flexibility for developers. The polling rate is 1000 Hz out of the box in Type-C wired mode and 2.4 GHz mode, which greatly helps when competitively gaming.

                Suitable for All Devices

                Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Q5 HE comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

                Keychron Q5 HE QMK Wireless Custom Keyboard
                Keychron Q5 HE QMK Wireless Custom Keyboard

                OSA Profile Double-shot PBT Keycaps

                It has a similar height to that of the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

                Hot-swappable

                Unlike mechanical switches, which depend on physical contact, Hall Effect magnetic switches use magnets to detect key presses. It is effortless to swap out the switch with compatible Hall Effect magnetic switches.

                *The Q5 HE is compatible with the magnetic switches sold on the Keychron website only.

                South-facing RGB LED Lights

                The south-facing RGB is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the user installs Cherry-profile alternative keycaps on their keyboard.

                Stabilizers of Keychron Q3 HE Wireless QMK Custom Magnetic Switch Keyboard

                All New Screw-In PCB Stabilizers

                The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less wobbly. The big keys’ (space bar, shift, enter, and backspace) typing experience is now more stable and smooth.

                What's in the box?

                Pack list of Keychron Q5 HE Custom Mechanical Keyboard

                Specs

                Width144.8 mm
                Length408.05 mm
                Front Height20.73 mm (without keycaps)
                Back Height31.8 mm (without keycaps)
                Feet Height2.4 mm
                Angle5.2°
                Weight2187 g ± 10 g (Fully Assembled version)
                Body MaterialAluminum
                PlateAluminum
                Polling Rate1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)
                N-Key Rollover (NKRO)  Yes for both wireless and wired modes
                Rapid Trigger Yes
                Adjustable Actuation Points 0.2 - 3.8 mm
                Dynamic Keystrokes 4-in-1 action keys
                Sensitivity0.1 mm
                N-Key Rollover (NKRO)  Yes for both wireless and wired modes
                Keycap OSA Double-shot keycaps, not shine-through
                MCU ARM Cortex-M4 32-bit STM32F402RC (256KB Flash)
                Backlight South-facing RGB LED
                Switch Gateron double-rail magnetic switch
                Hot-swappable Support Yes, compatible with Gateron double-rail magnetic switch only.
                Stabilizer Screw-in PCB stabilizer
                Cable Type-C cable (1.8 m) + Type-A to Type-C adapter
                Connectivity 2.4 GHz / Bluetooth / Type-C wired
                Bluetooth Version
                5.2
                Bluetooth Device Name Keychron Q5 HE
                Battery 4000 mAh Rechargeable li-polymer battery
                Operating Environment -10 to 50℃
                Wireless Working Time (Backlit off)   Up to 100 hours
                Keychron Q5 HE User Guide

                Learn more about the Keychron Q3 HE such as the Q3 HE shortcuts, assembling the Q3 HE, factory reset, and more in the FAQ section.
