Keychron V1 Max QMK Wireless Custom Mechanical Keyboard ISO Layout Collection

SKU: V1M-D1-DE
€103,00

Type
Layout Version
Switches

 The fully assembled version includes:
  • ABS plastic housing
  • The keyboard PCB, screw-in stabs, and the PC plate
  • Double-shot OSA PBT keycaps (including Mac & Windows keycaps)
  • Gateron Jupiter switches




No discount codes can be used for V1 Max.

ISO options: German, UK, Nordic, Swiss, Spanish, and French layouts.

Please drop your email on "Notify Me When Available" if the product model is out of stock.

Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout

Keychron V1 Max
ISO Layout Collection

The V1 Max is a fully customizable mechanical keyboard, offering both 2.4 GHz wireless and Bluetooth 5.1 connectivity. Its compact 75% layout, gasket mount design, sound absorbing foam, double-shot PBT keycaps, and more take your typing experience to a new level, delivering heightened levels of comfort and productivity.

Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout
Features of Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout
Customize Your V1 Max ISO

Choose the keycaps, switches, and more accessories for your V1 Max ISO.

V1 Max ISO Layout Versions

These versions include the UK, German, Swiss, and Nordic layouts, all with extra keycaps suitable for Mac and Windows devices.

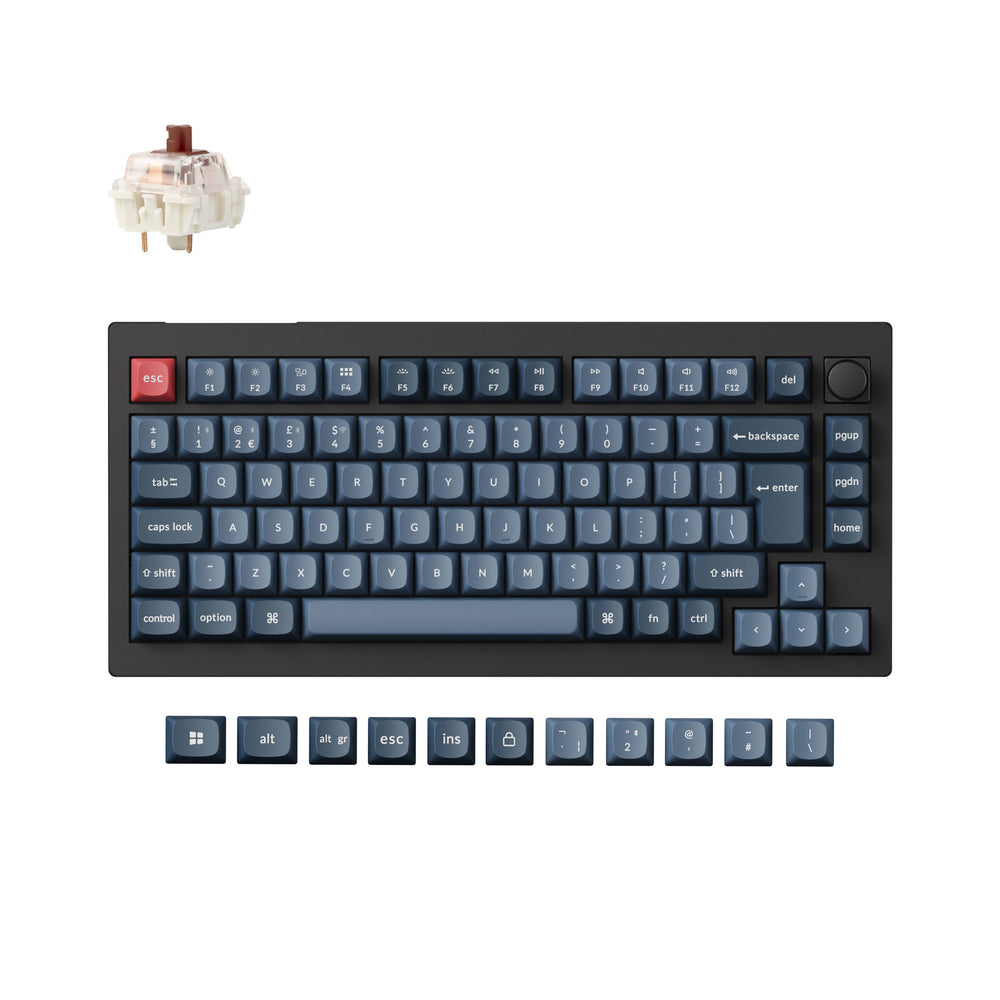

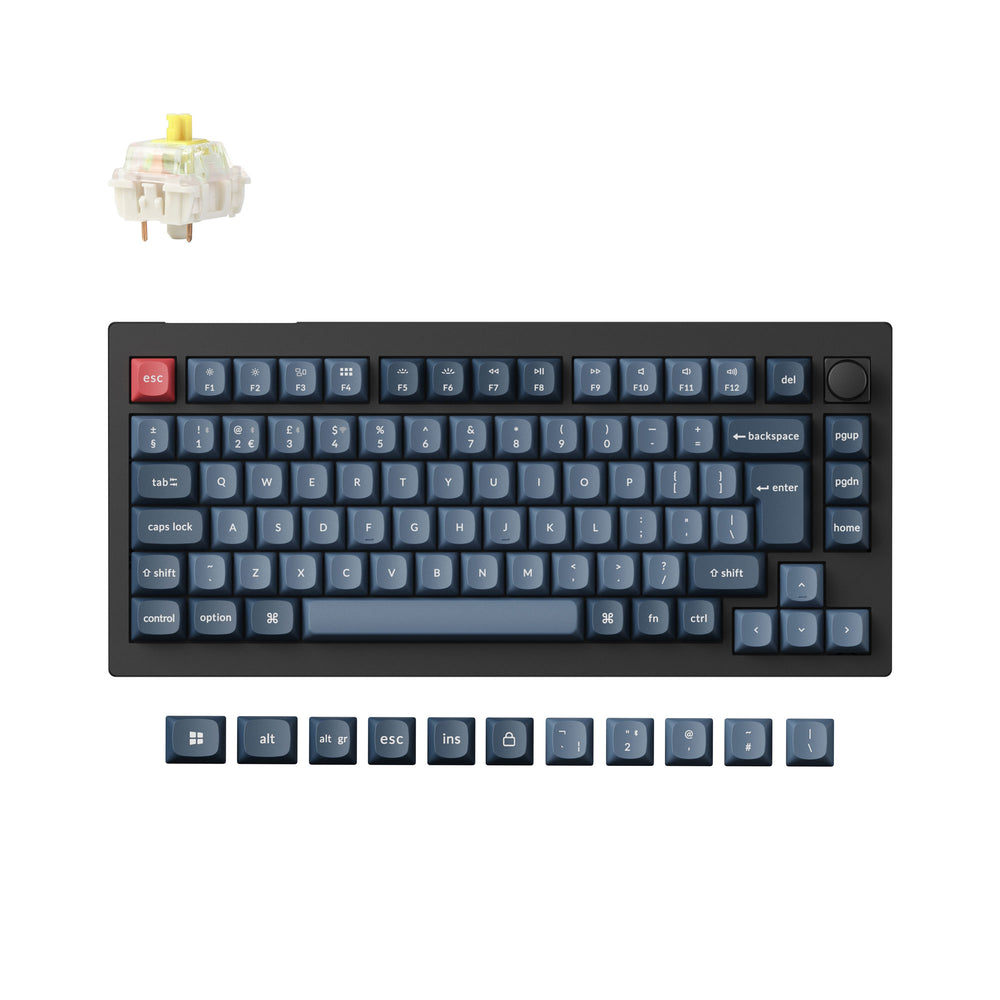

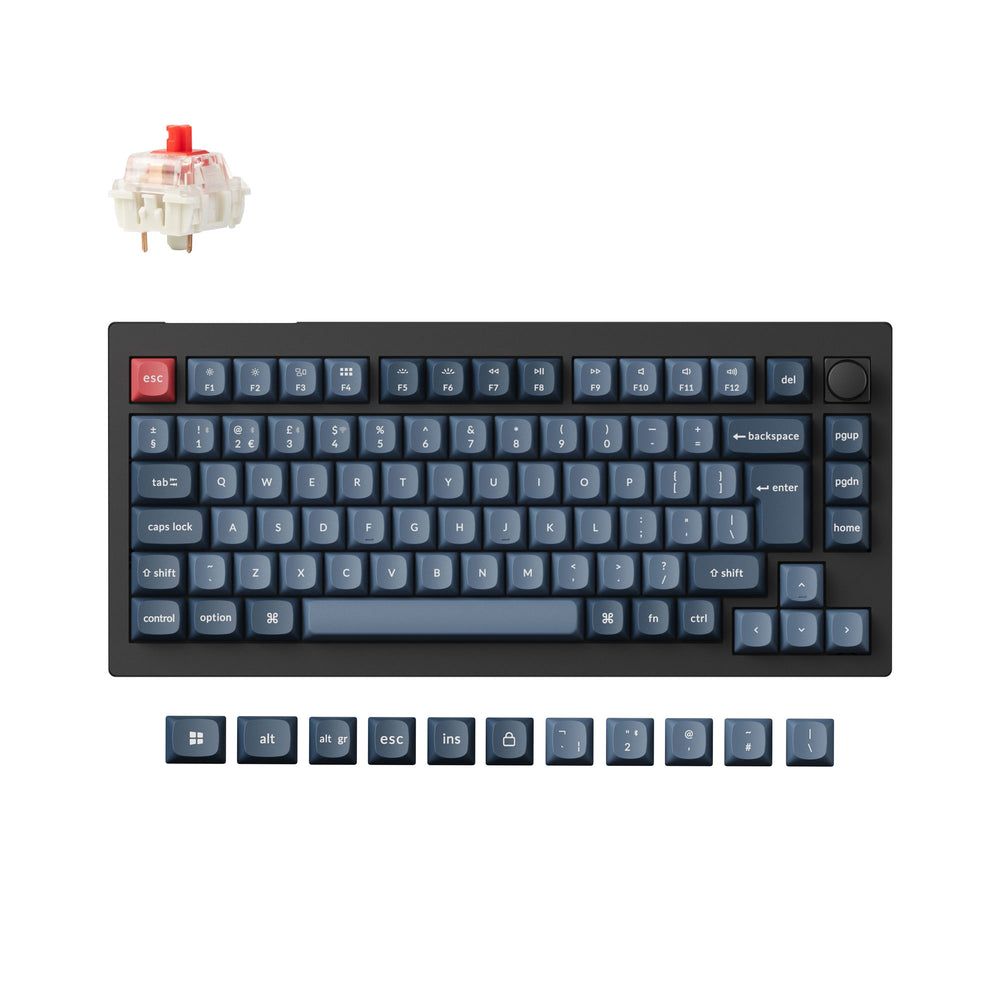

🇬🇧 UK-ISO Layout

Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout

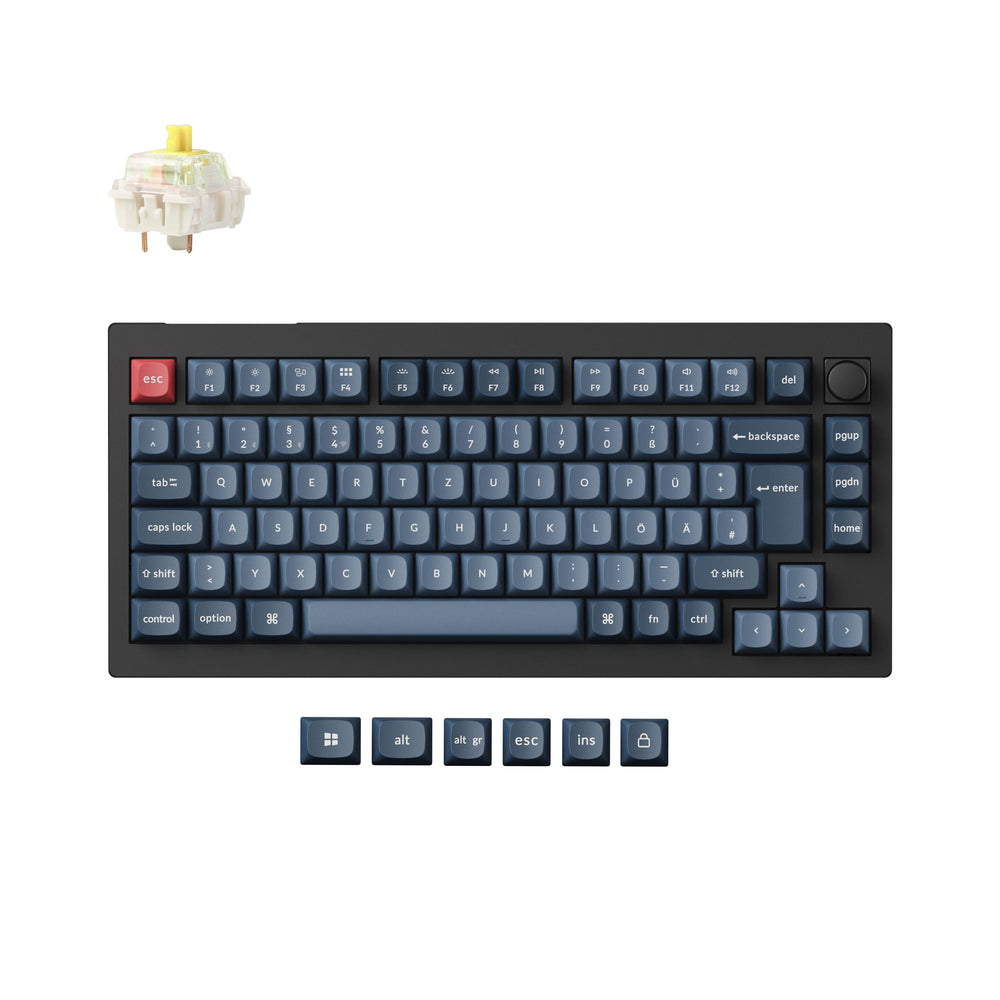

🇩🇪 German DE-ISO Layout

Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout

🇨🇭Swiss-ISO Layout

Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout

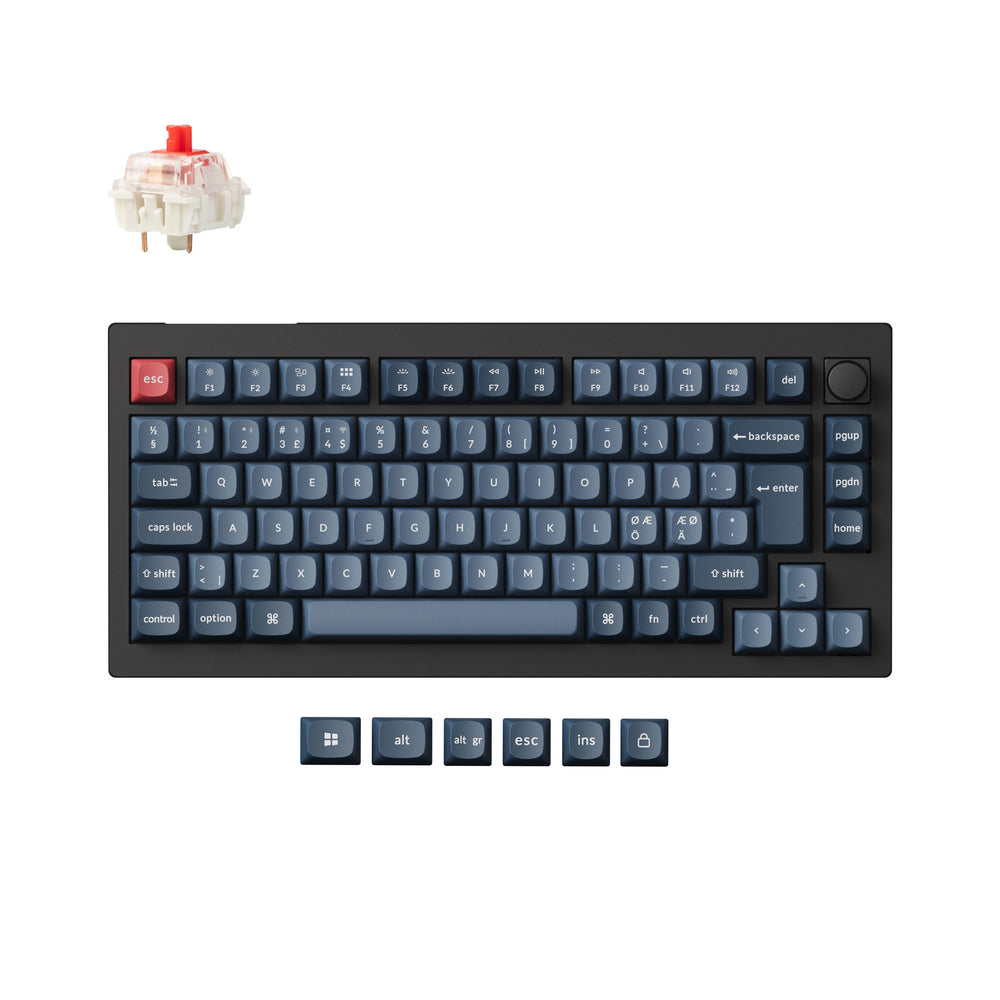

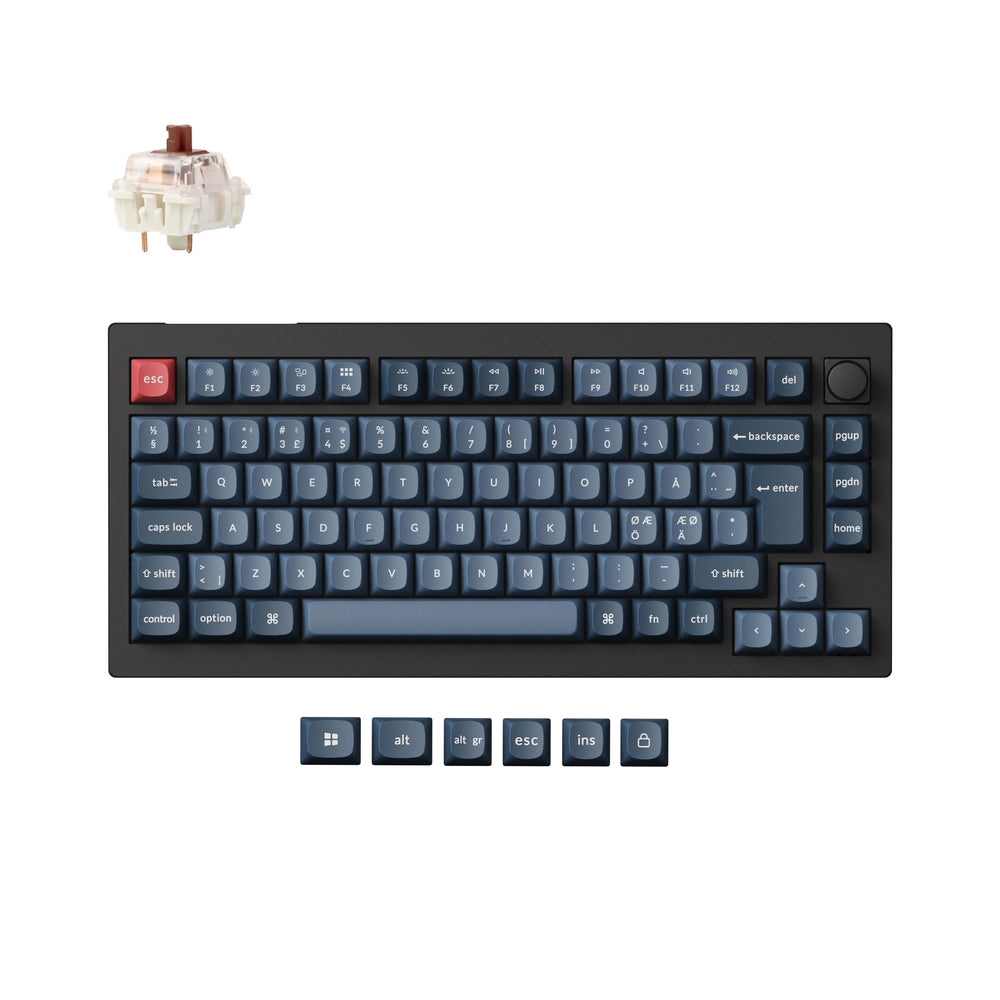

🇩🇰 🇫🇮 🇳🇴 🇸🇪 Nordic-ISO Layout

Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout

All-Around Customizable Keyboard

To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every parts the way you want.

Structure of Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout
Structure of Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout

2.4 GHz & Bluetooth Connection

Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the V1 Max via Bluetooth 5.1 to three devices.

Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout

Dual Receivers

For a better 2.4 GHz wireless experience, the V1 Max comes with Type-C and Type-A receivers. Enjoy the quick plug-and-play time. Or, put them away in the keyboard magnetic storage slot at the top right corner.

Type C and Type A Receivers
Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout

An Epic Core Inside The Keyboard

A powerful ARM architecture MCU equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box, which makes the latency hardly noticeable even in competitive games.

OSA Profile Double-shot PBT Keycaps

These double-shot PBT keycaps have a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout
Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout

Switch Layouts Between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V1 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Gasket Mount Design

By adopting a gasket mount design along with a PC (Polycarbonate) plate, the V1 Max reduces acoustic resonance, delivering a softer and quieter typing experience with enhanced flexibility.

Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout
launcher__PID:c85e7e7c-70c5-4168-a7ef-813f0fde4736

Program V1 Max with Keychron Launcher Web App

Equipped with QMK firmware, the V1 Max offers endless customization possibilities. The Keychron Launcher web app allows you to easily remap any key, create macro commands, shortcuts, and key combinations for a seamless workflow.

Launcher screen capture of Keychron V1 Max ISO

Check out the video above demonstrating how to remap the F16 key to an Eject key with the VIA software to create a shortcut to put your Mac to sleep (Command-Option-Eject).

Hot-Swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.

Hot swappable feature

South-facing RGB LED Lights

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

Gateron Jupiter Switch

Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 3-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.
The banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.

Gateron Jupiter Switch Features of Keychron V1 Max QMK/VIA Wireless Cuustom Mechanical Keyboard 75% Layout ISO Layout

Screw-In PCB Stabilizers

Even small part matters for your fingertip feel. We’ve integrated the PCB-mounted screw-in stabilizers for a smoother typing experience with less wobbliness on the big keys such as space bar, shift, enter, and delete. The Keychron V1 Max also supports third-party screw-in PCB stabilizers.

All New Screw In PCB Stabilizers of Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout

What's in the box?

Package list of Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout
Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout

Specs

Width148.7 mm
Length328.5 mm
Front Height21.5 mm (without keycaps)
Back Height29.4 mm (without keycaps)
Feet Height 2 mm
Polling Rate 1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)
Body Material ABS Plastic
Angle 3.5° / 7.1° / 9.5°
Plate Material PC
Weight 770 g ± 10 g (Fully Assembled Version)
Battery 4000 mAh Rechargeable li-polymer battery
Wireless Working Time (Backlit off)  Up to 225 hours (Lab test result may vary by actual use)
Wireless Working Time (RGB)  Up to 100 hours (Lowest brightness)
Charging Time  Around 5 hours
Bluetooth Version  5.1
Compatible System  Windows/macOS/Linux
N-Key Rollover (NKRO)  Yes for both wireless and wired modes
Hot-swappable  Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX, Kailh, etc.
Keycaps (Fully Assembled Version) Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
MCU ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
Switches Gateron Jupiter (Fully Assembled Version)
Backlight South-facing RGB LED
Stabilizer Screw-in PCB stabs
Charging Port USB Type-C
Cable Type-C cable + Type-A to Type-C adapter
Operating Environment -10℃ to 50℃
Mount Style Gasket Mount Design
Keychron V1 Max User Guide

Learn more about the Keychron V1 Max such as the V1 Max shortcuts, assembling the V1 Max, factory reset, and more in the FAQ section.
