Keychron S1 QMK Custom Mechanical Keyboard
Keychron S1 QMK Custom Mechanical Keyboard - RGB Backlight / Low Profile Gateron Mechanical / Red is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The fully assembled version includes:
- Full CNC aluminum body, steel plate, and PCB
- Low profile Double-shot PBT LSA (low profile spherical-angled) keycaps (including Mac & Windows keycaps).
- Gateron low profile mechanical switches.
Please drop your email on "Notify Me When Available" if the product model is out of stock.
Keychron S1
Keychron S1 is the first 75% layout all-metal low profile custom mechanical keyboard. With its all-metal ultra-slim CNC machined body, QMK/VIA support, and low profile double-shot PBT keycaps, the S1 gives you a high-end typing experience, a unique design setup, and endless possibilities. One of a kind.
Choose the switches and more accessories for your S1
Full Metal And Ultra-Slim Body
It’s incredible to make such a slim keyboard with a solid piece of aluminum. The whole body of the keyboard is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make the S1 slim, elegant and solid.
A Customizable Low Profile Keyboard
To build a customizable low profile keyboard, we designed every part that is easy to assemble. Therefore, you can customize and adjust each component if you want.
An Epic Core Inside The Keyboard
A powerful MCU ARM structure that is armed with 128K Flash provides more flexibility for developers. The polling rate is 1000 Hz out of the box, which makes latency non-existent for the competitive game.
Low Profile Double-Shot PBT Keycaps
We created a new low profile double-shot PBT keycaps set for the S1. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading.
Switch Layouts Between macOS & Windows
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron S1 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
Adjustable In Two Angles
The S1 has two extra feet that allow you to adjust the tilt angle of the keyboard. One is 3°, and another is 6°, enabling you to find the most comfortable angle for your wrist.
Program S1 With QMK & VIA
With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, and more.
Get The S1 Keymap Working On VIA
Since the VIA code for the S1 is still awaiting approval from Github, it is not yet automatically recognized, you will need to manually download and import the S1 keymap.
To get started, please follow the steps: Download the appropriate keymap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the S1 keymap working on VIA.
S1 Keymap JSON Files
Hot-swappable (Option)
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB only supports Gateron low profile mechanical switches.
22 RGB Light Effects
Comes with up to 22 types of RGB backlight effects, you can choose the one fit your mood. And you can further fine-tune the RGB hue, saturation, brightness, effect speed with ease.

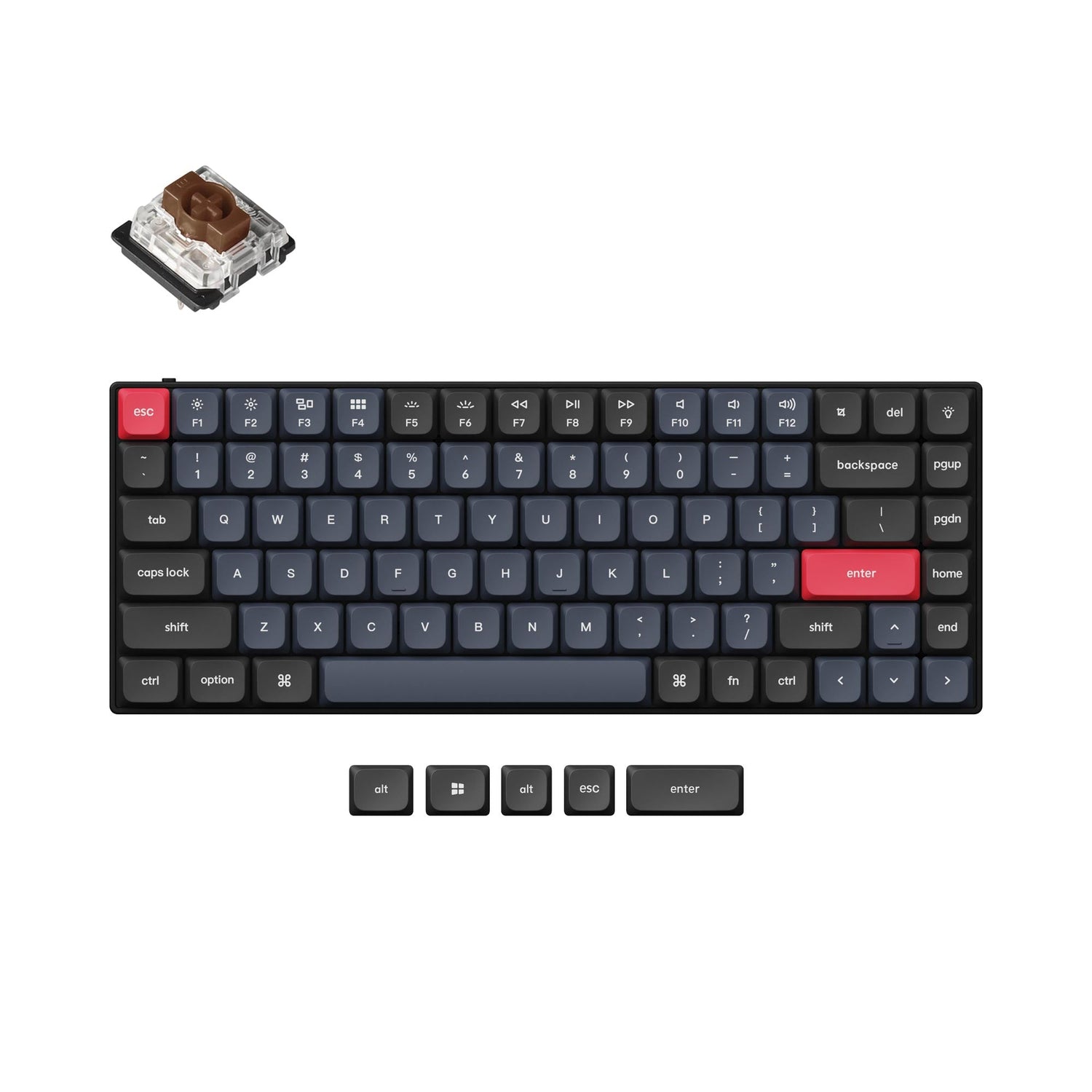

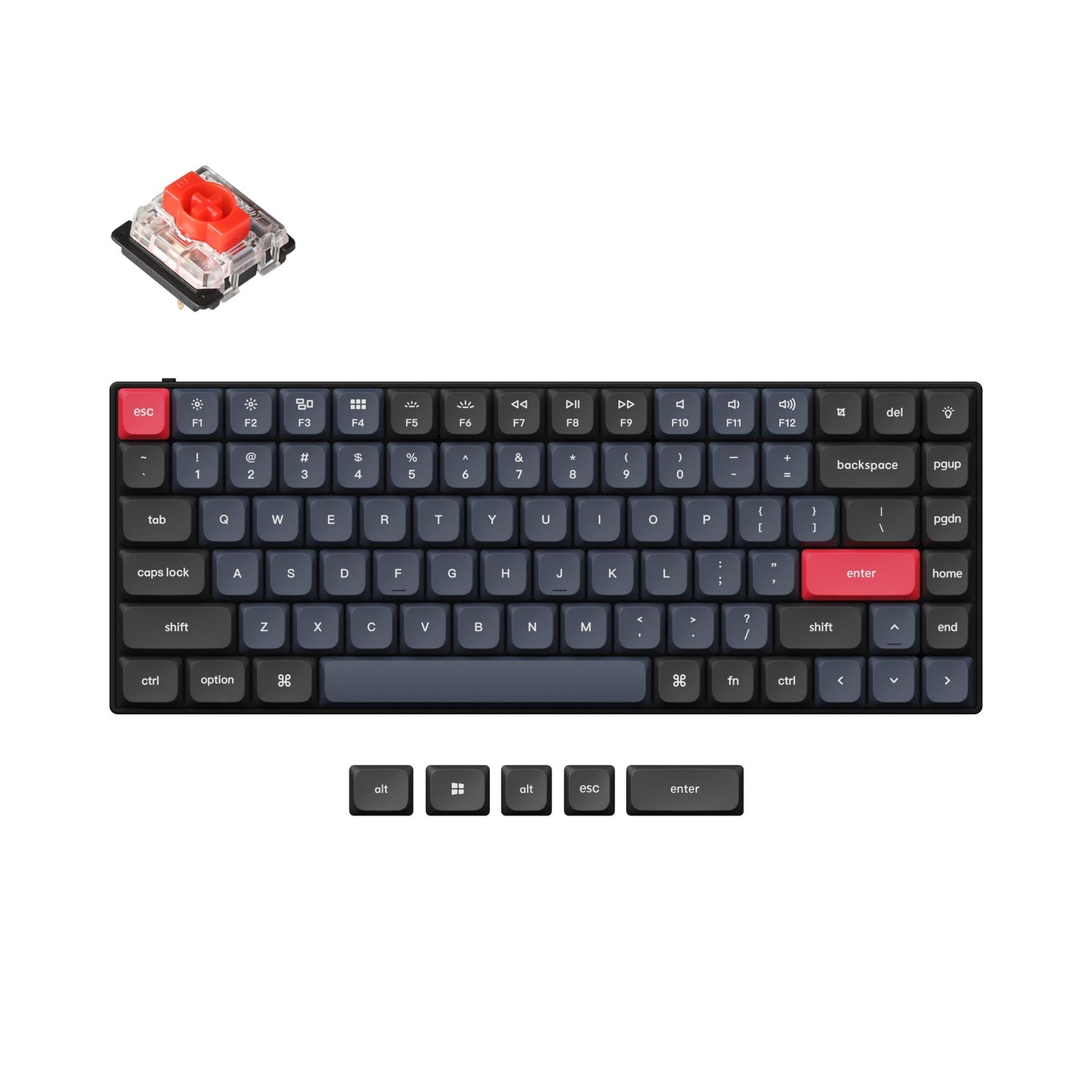

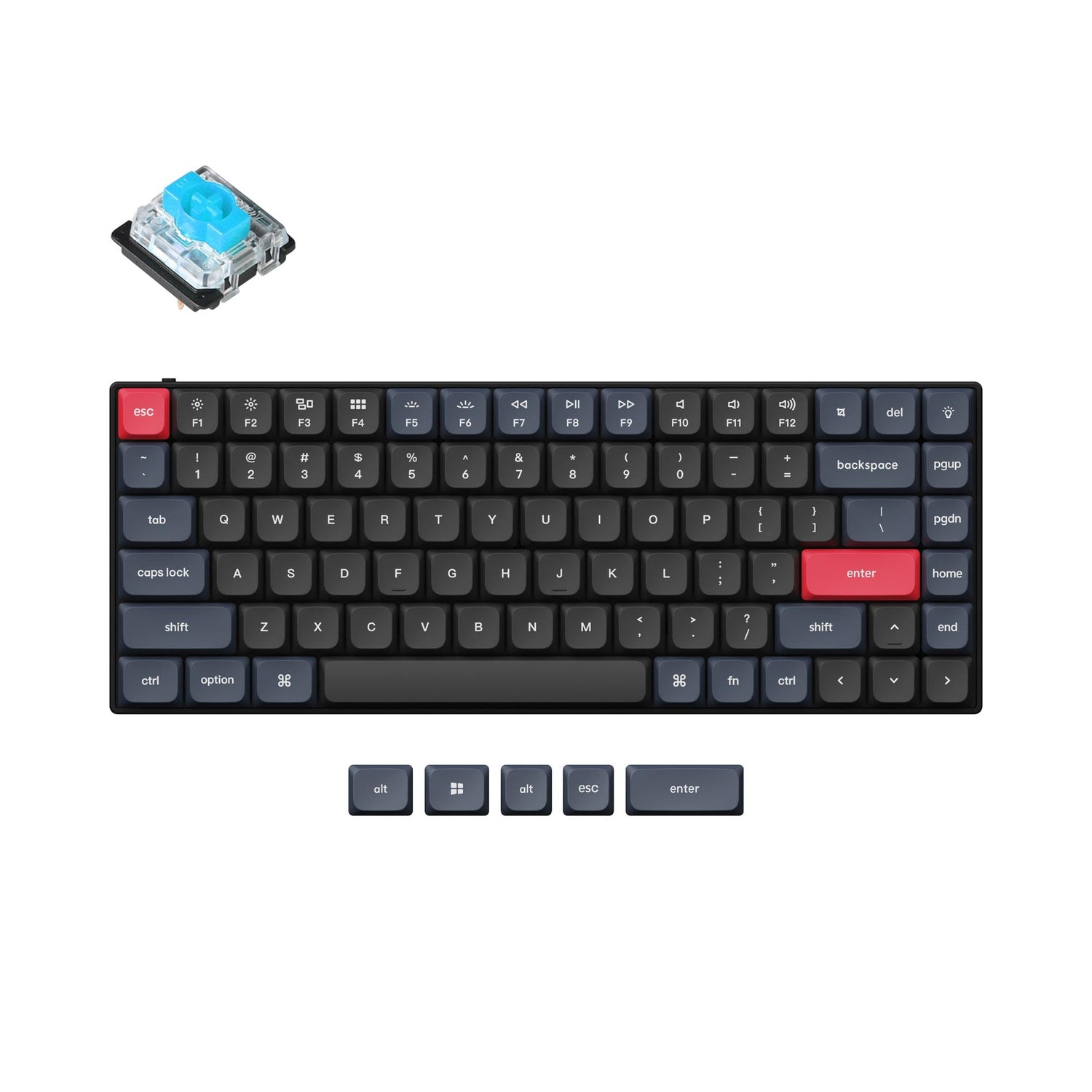

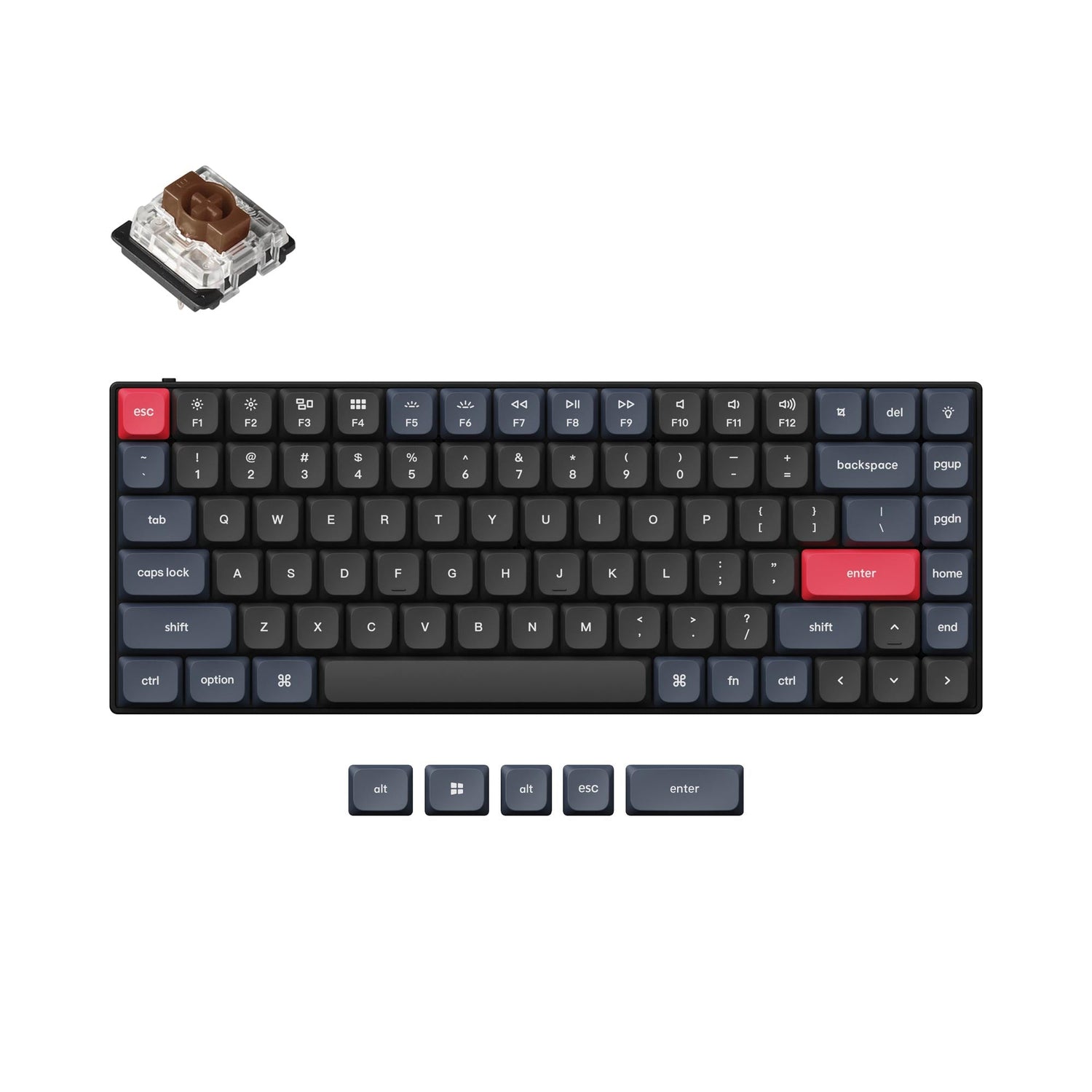

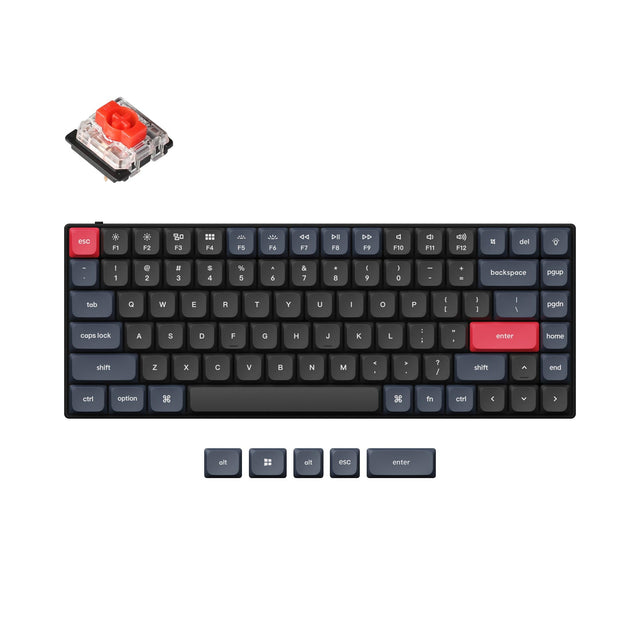

Gateron Low Profile Mechanical Switch
The optimized molded Gateron low profile MX Mechanical switch is designed to enhance reliability. Gateron's reputable switches are your best choice for a precise, smooth, and reliable fingertip feel, whether you prefer linear (red), clicky (blue), or something in between (brown).
What's in the box?
Specs
Width | 118.4 mm |
---|---|
Length | 310.4 mm |
Front Height | 7.8mm (without keycaps) |
Back Height | 13.7 mm (without keycaps) |
Feet Height | 2.7 mm |
Angle | 3° / 6° |
Weight | 960 g ± 10g |
Body Material | Full CNC machined aluminum |
Plate | Steel |
Polling Rate | 1000 Hz |
Keycaps (Fully Assembled Version) | Double-shot PBT low profile keycaps, not shine-through |
---|---|
MCU | Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash) |
Backlight | North-facing RGB LED |
Switch | Gateron Low Profile MX Mechanical |
Switch Support | Hot-swappable (Gateron Low Profile MX Mechanical) |
Connectivity | Type-C |
Cable | Type-C cable + Type-A to Type-C adapter |
Operating Environment | -10℃ to 50℃ |
Stabs | Plate stabs |
Learn more about the Keychron S1 such as the S1 shortcuts, assembling the S1, factory reset, and more in the FAQ section.
