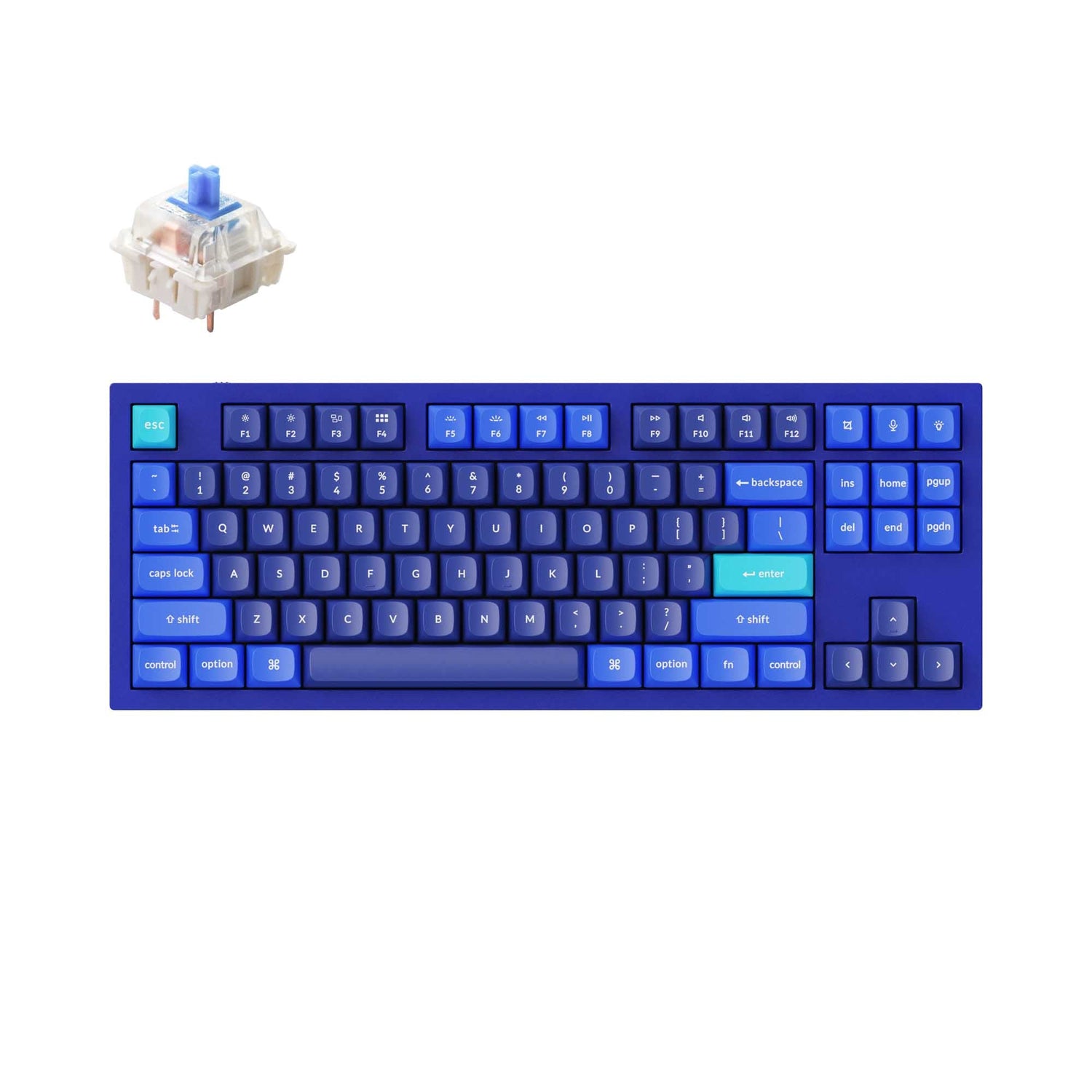

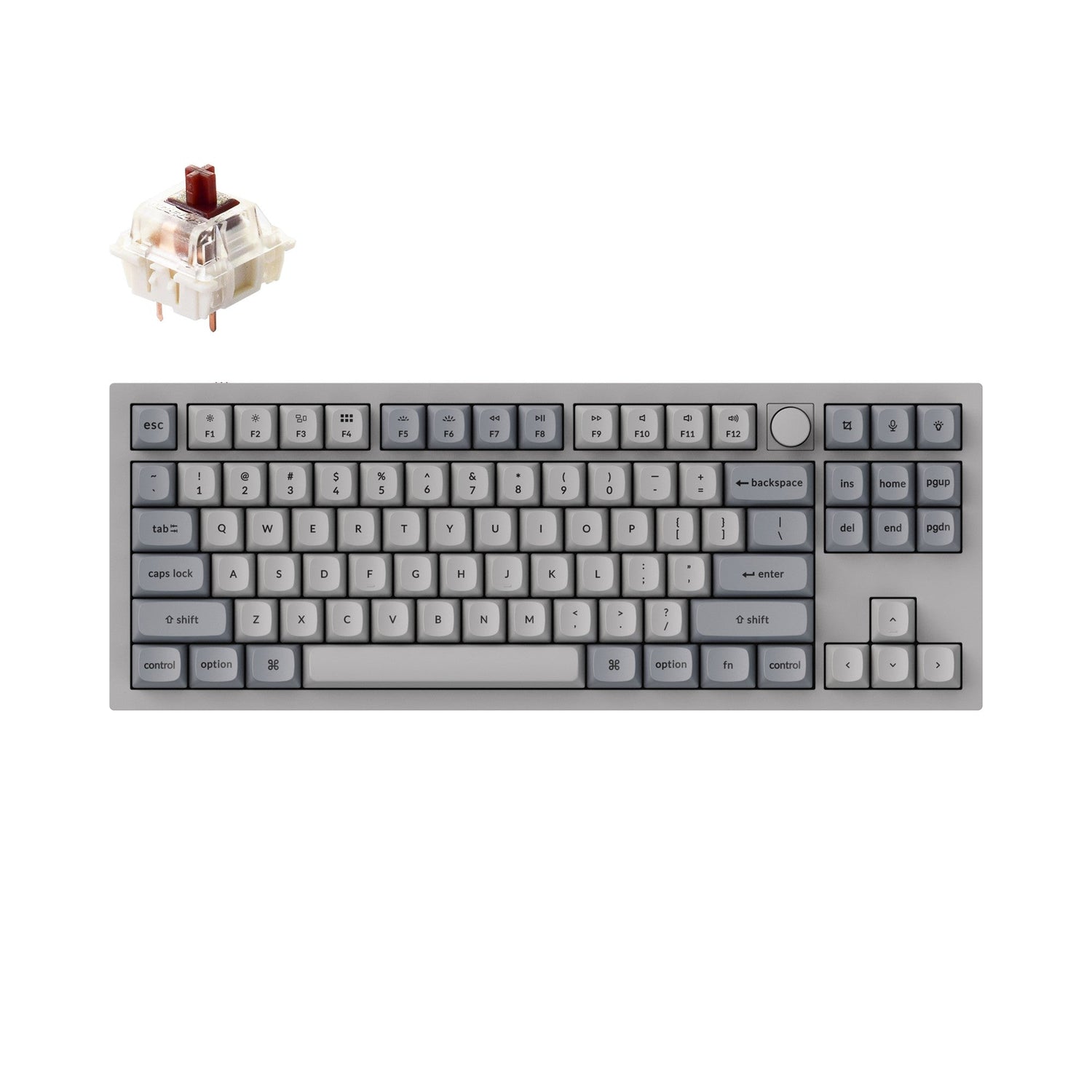

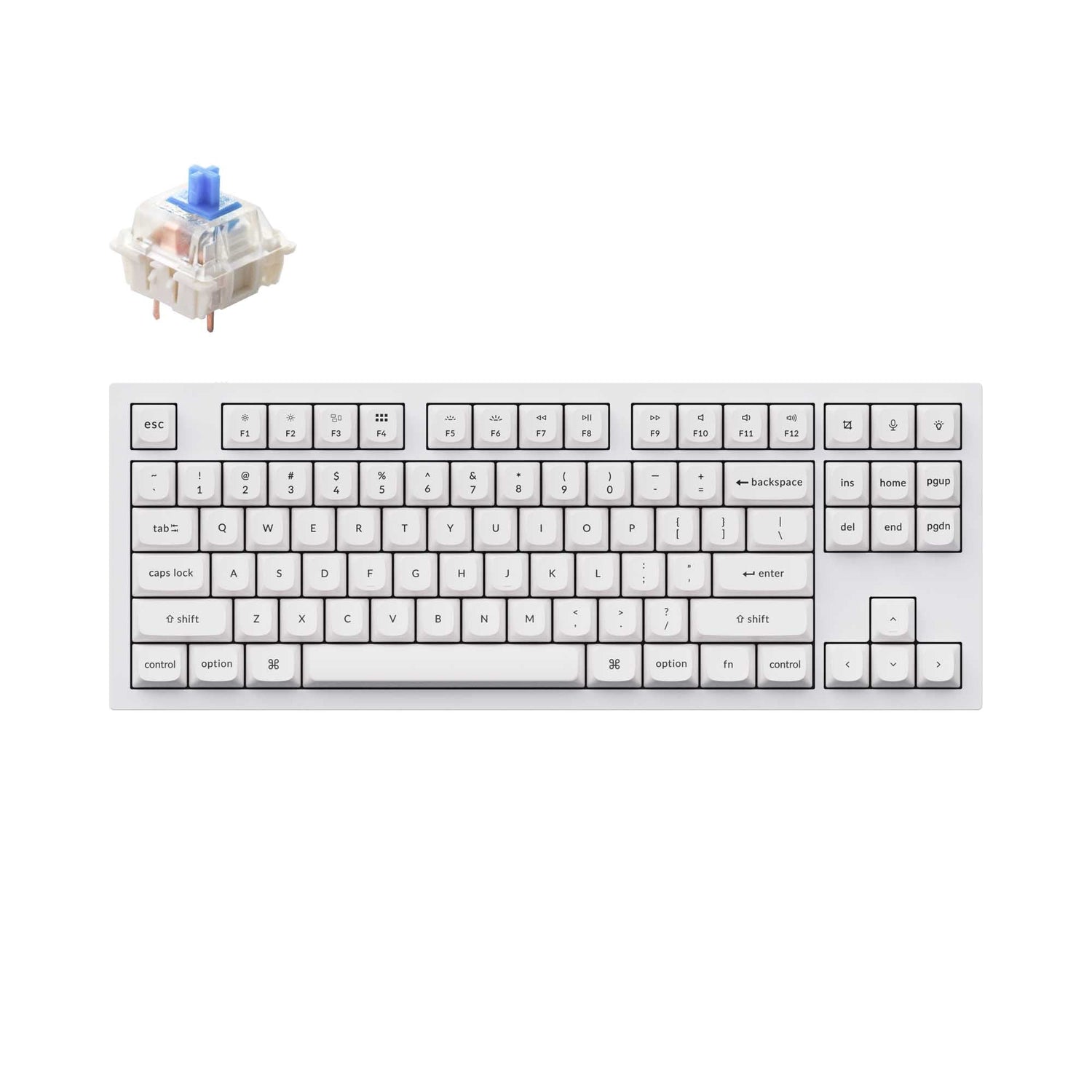

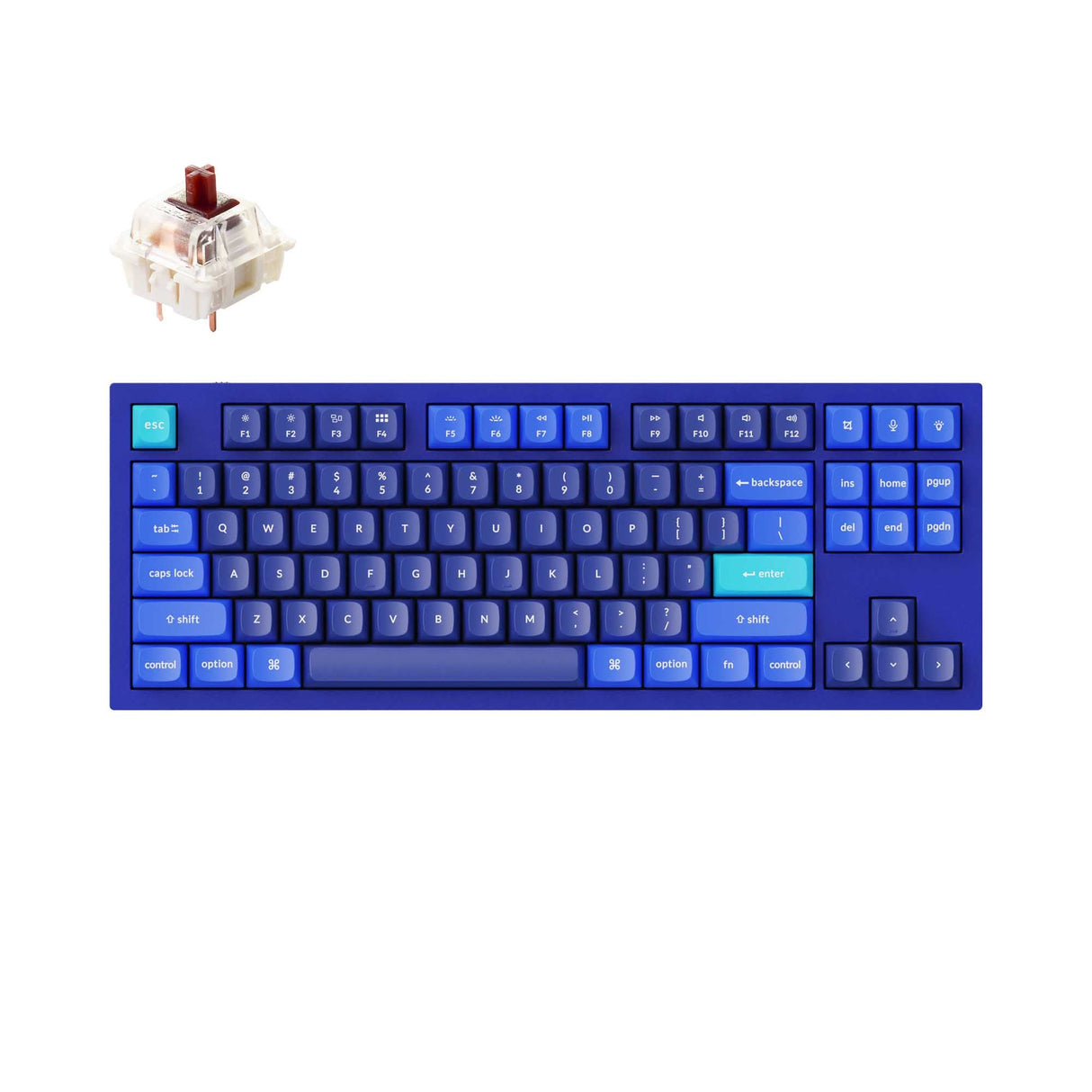

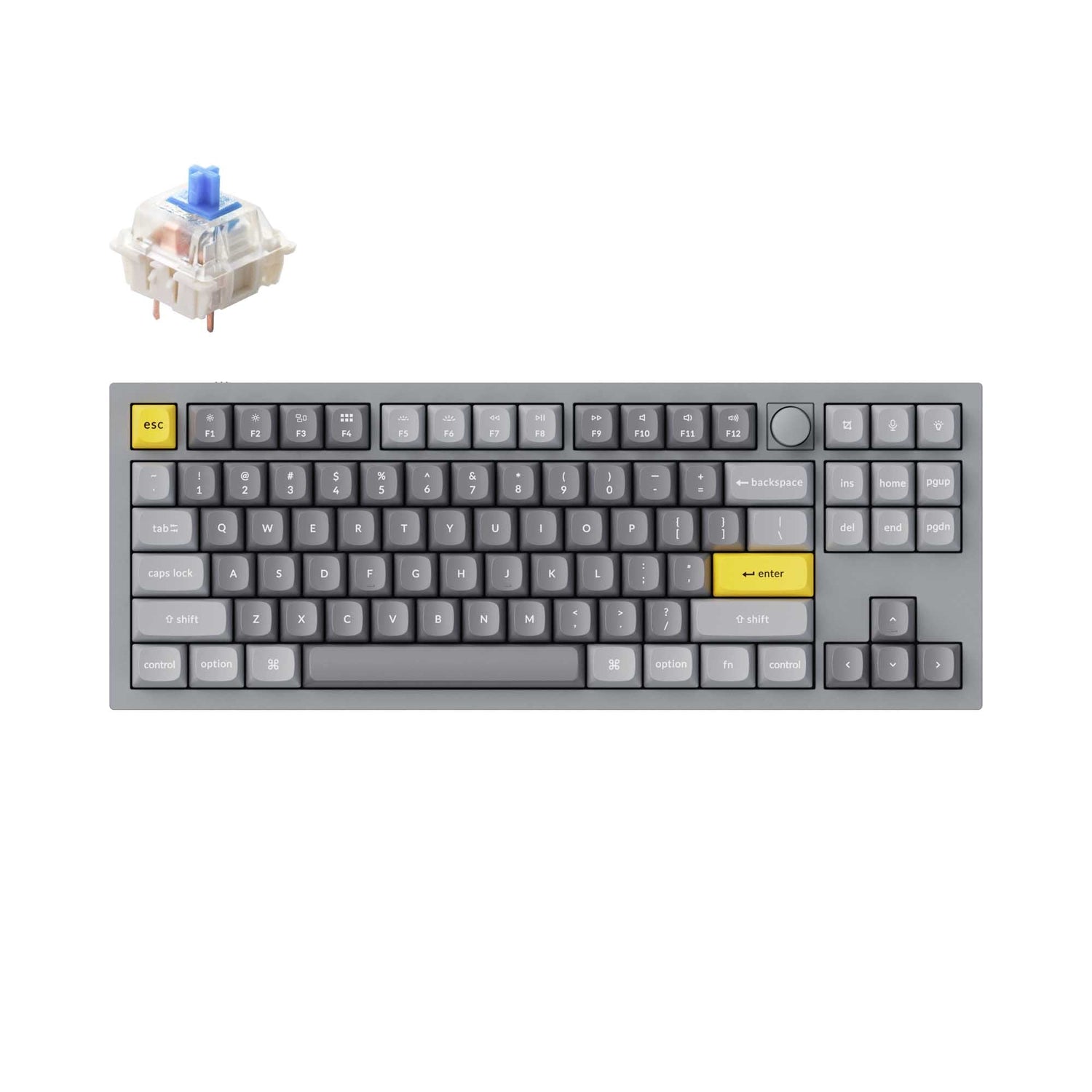

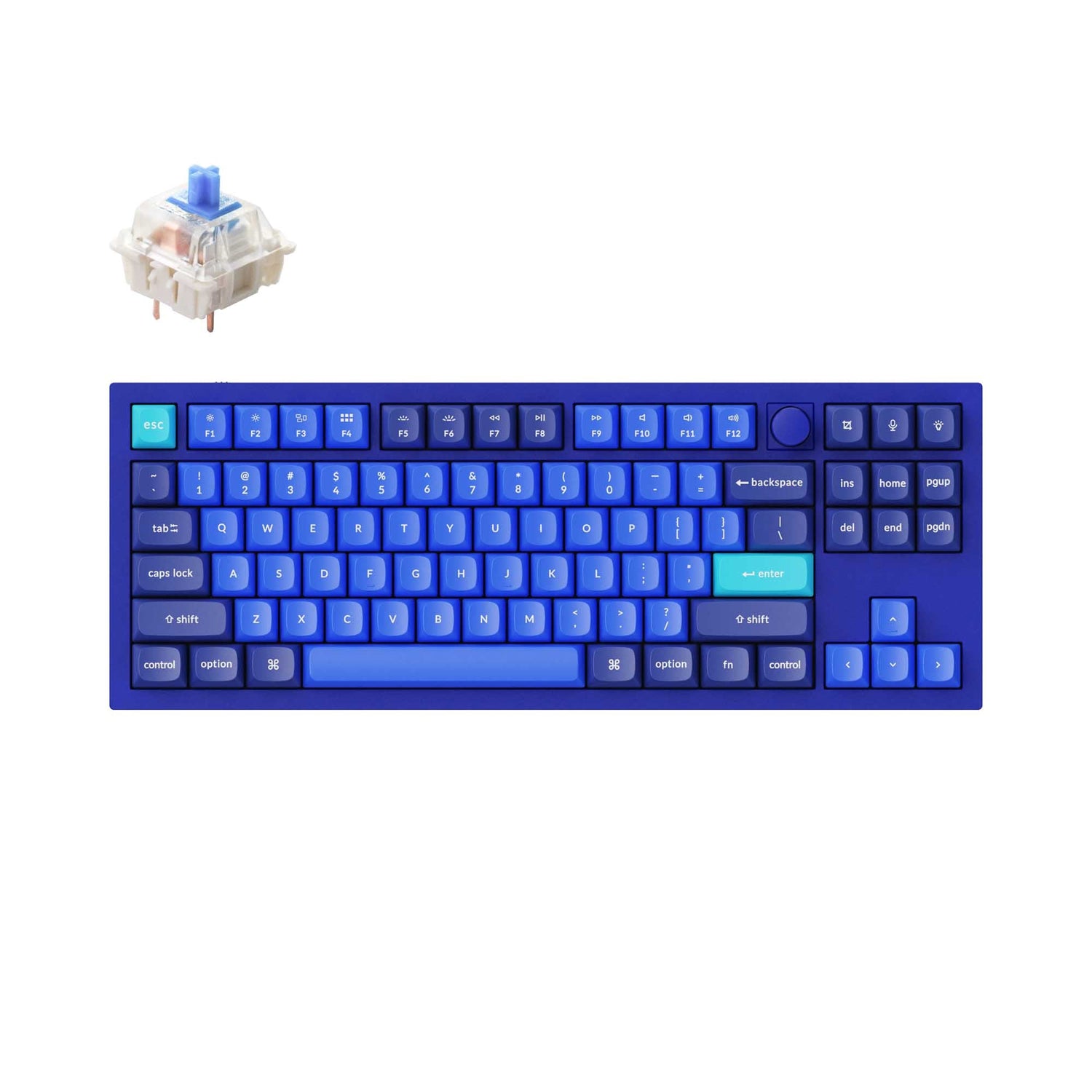

Keychron Q3 QMK Custom Mechanical Keyboard (US ANSI Keyboard)
Keychron Q3 QMK Custom Mechanical Keyboard (US ANSI Keyboard) - Fully Assembled / Navy Blue - B / Gateron G Pro Red is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

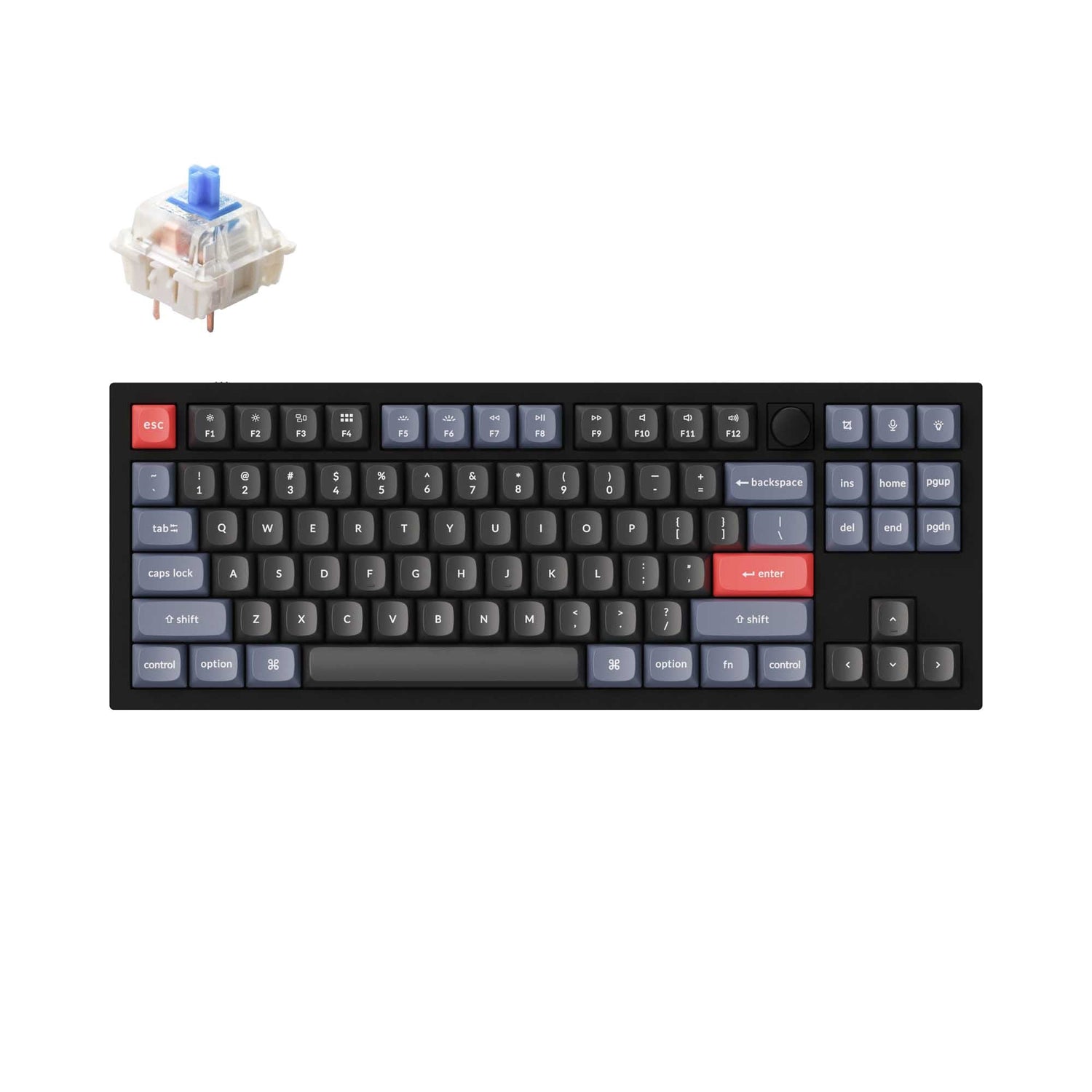

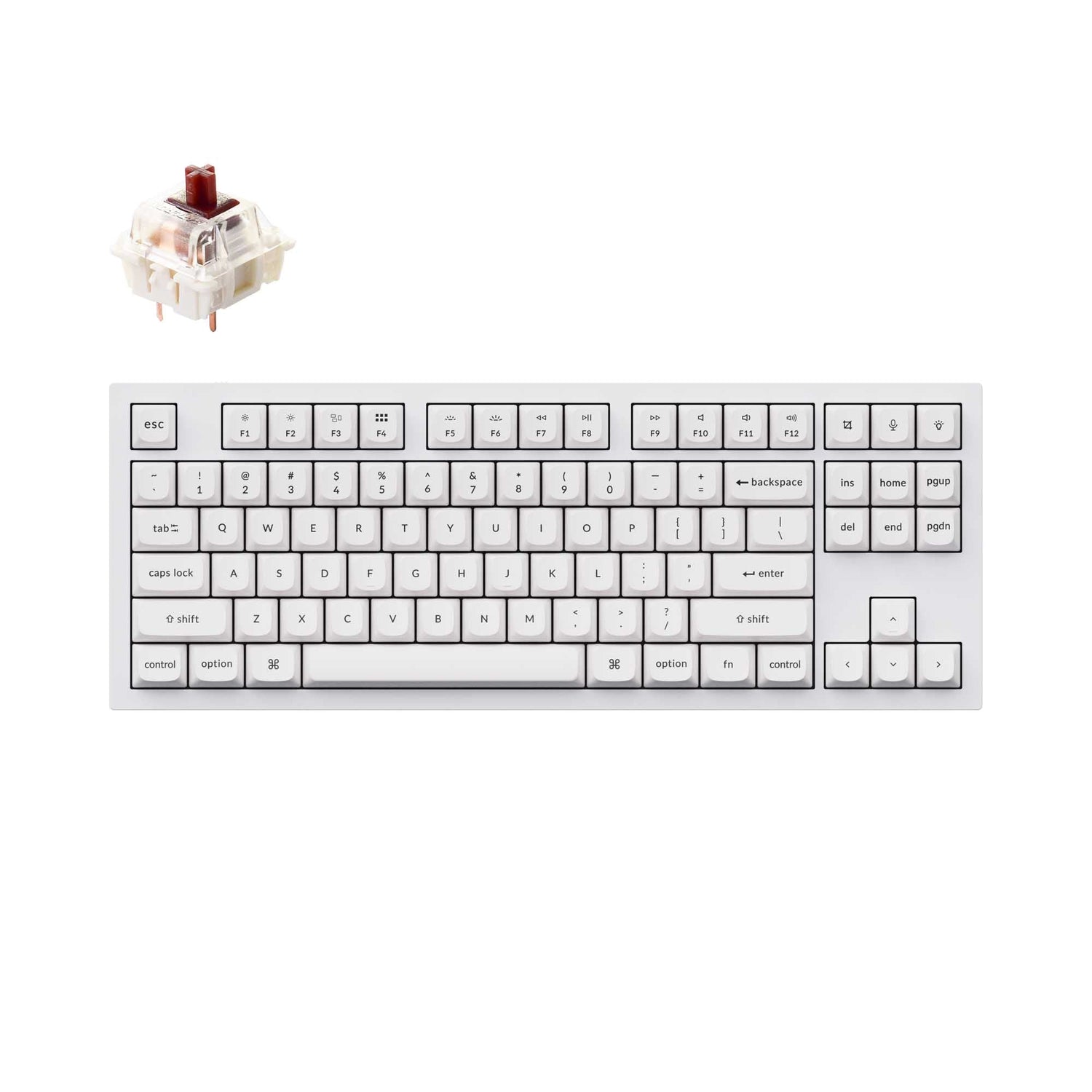

The fully assembled version includes:
- The keyboard PCB, the case, and the steel plate.
- Double-shot OSA PBT keycaps (included Mac & Windows keycaps).
- Gateron G Pro switches.

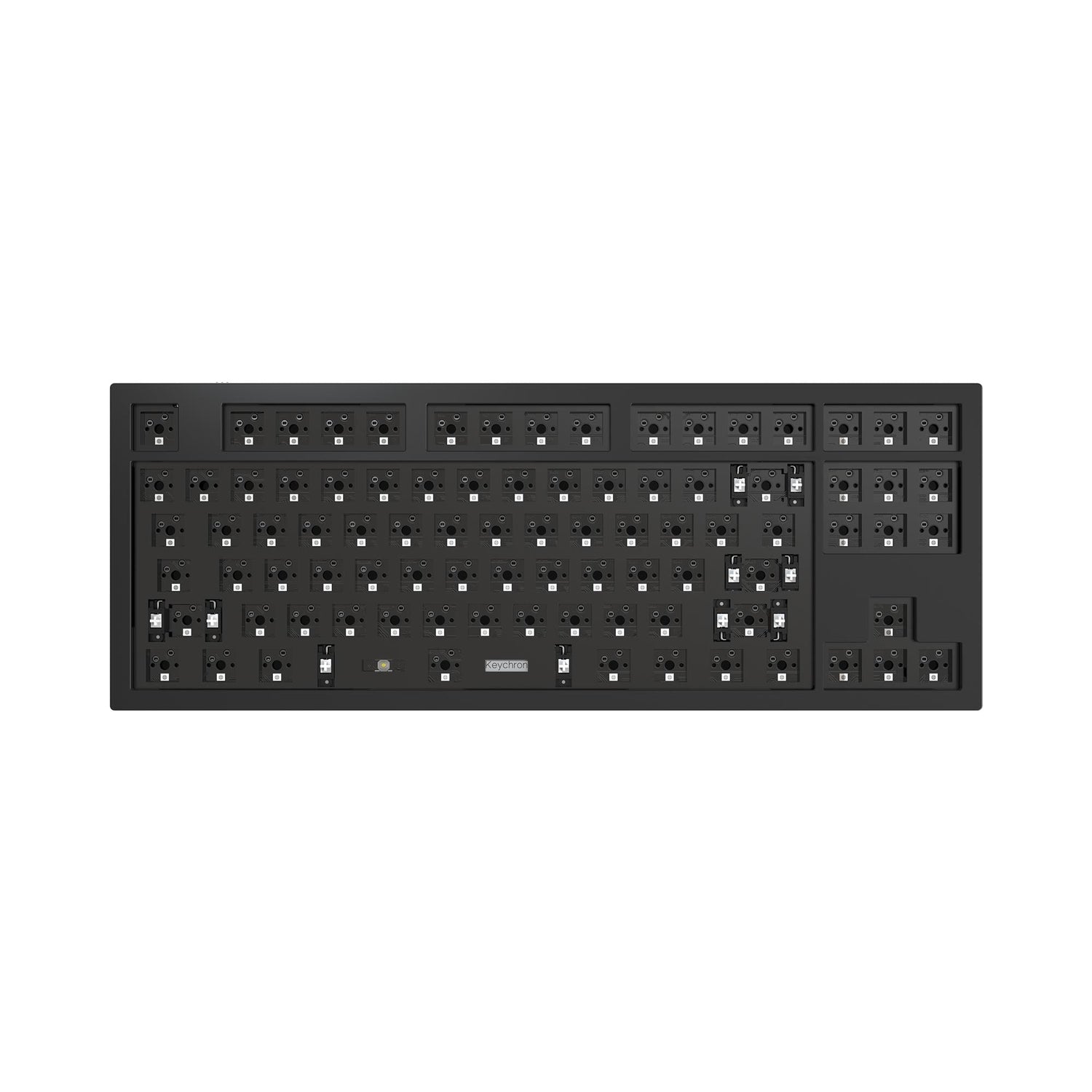

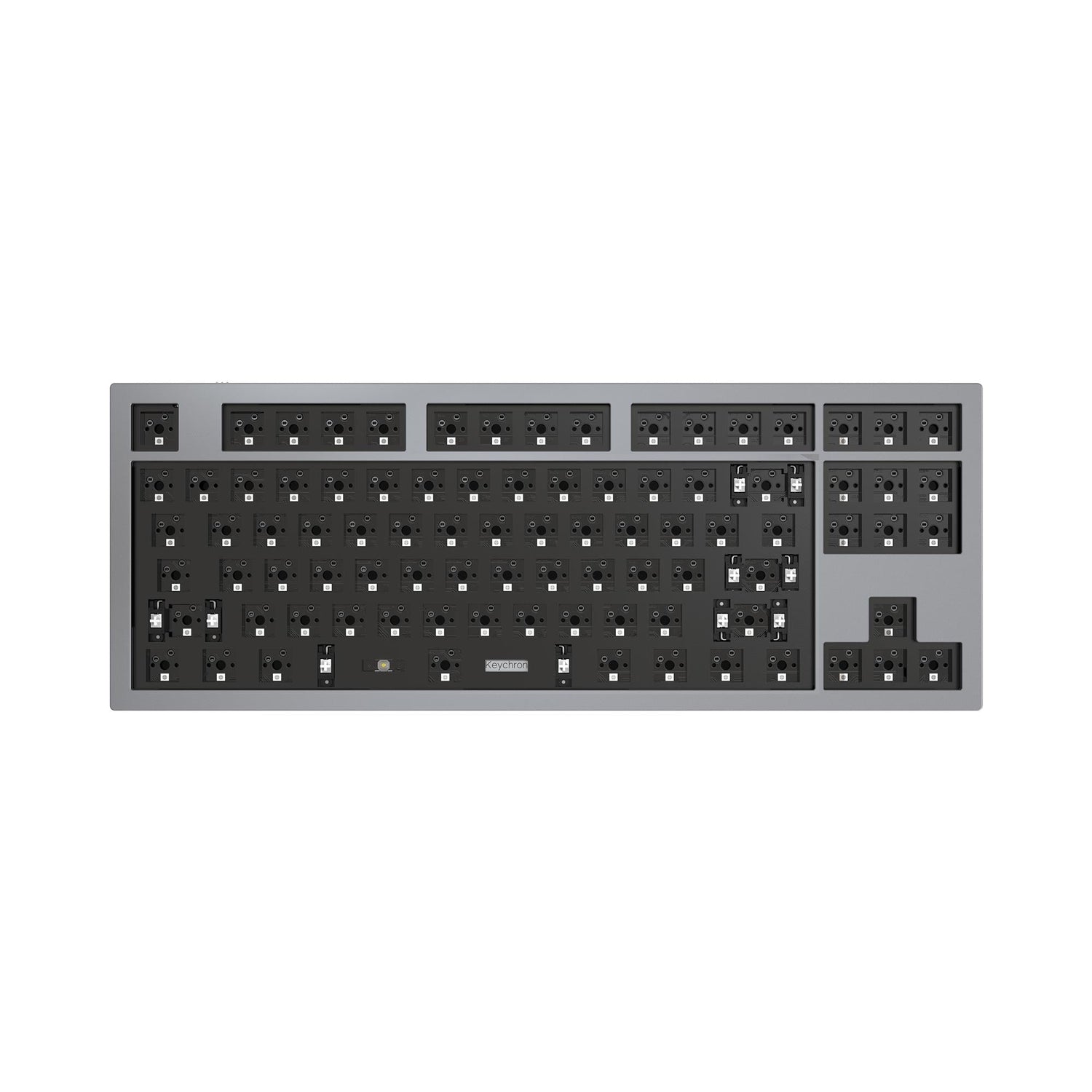

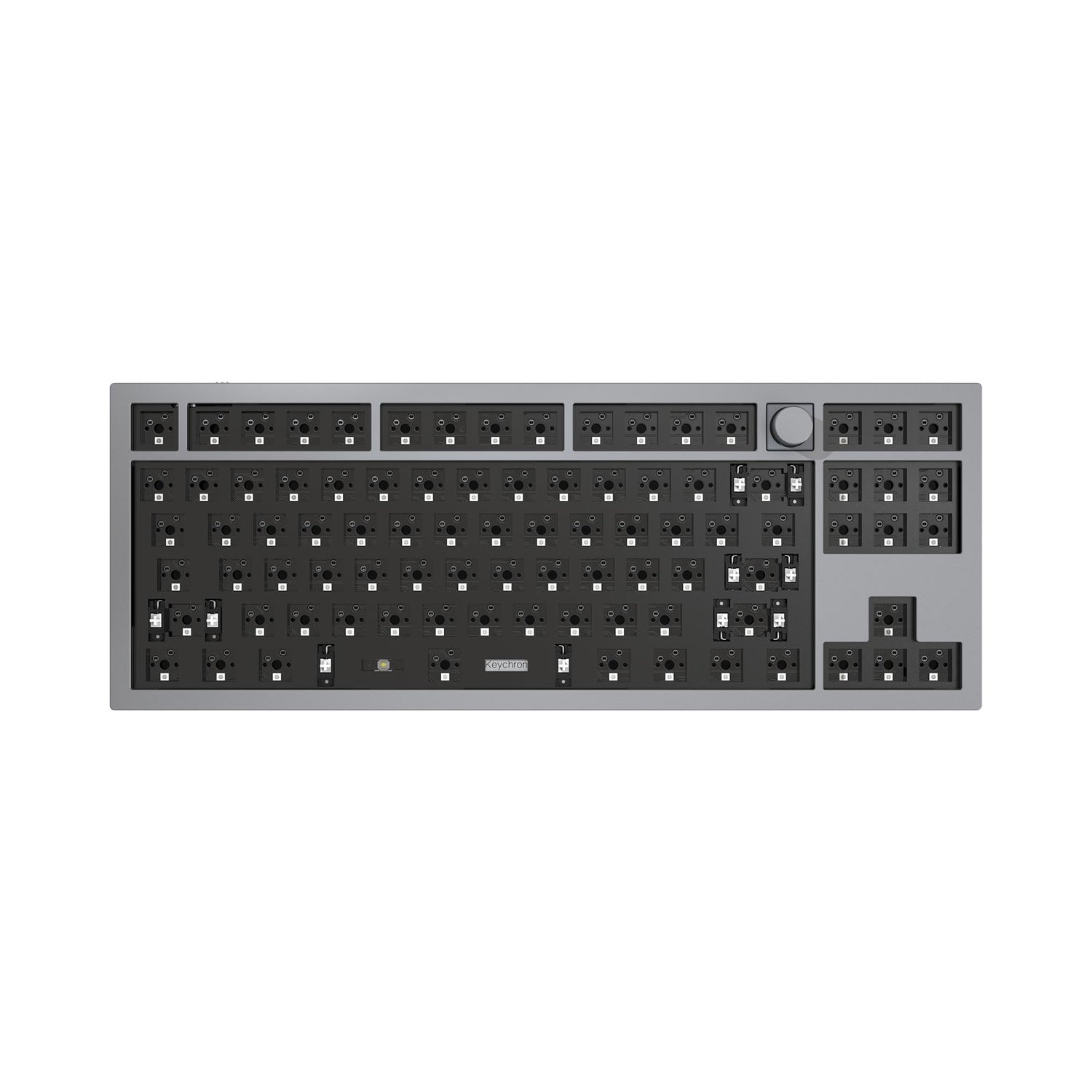

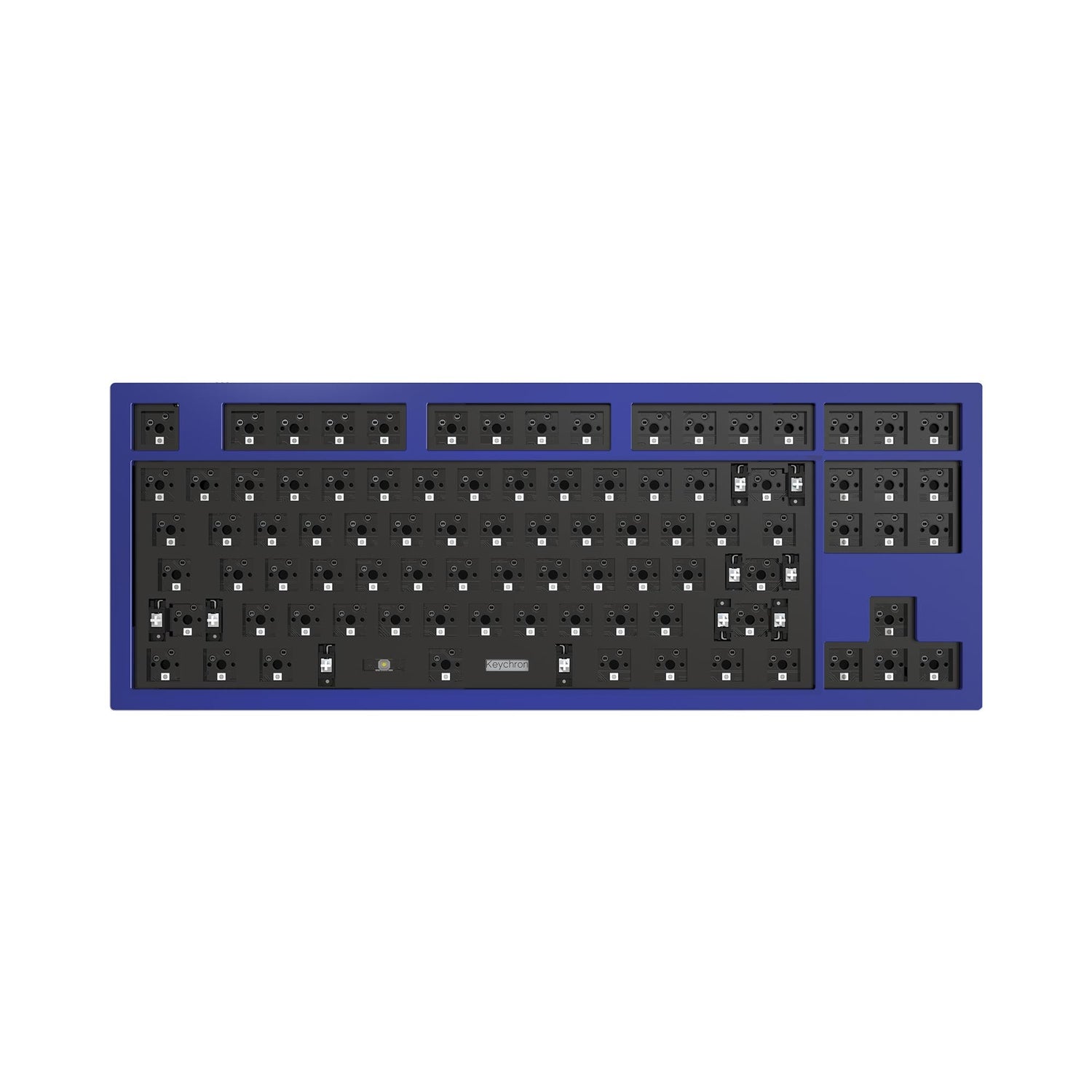

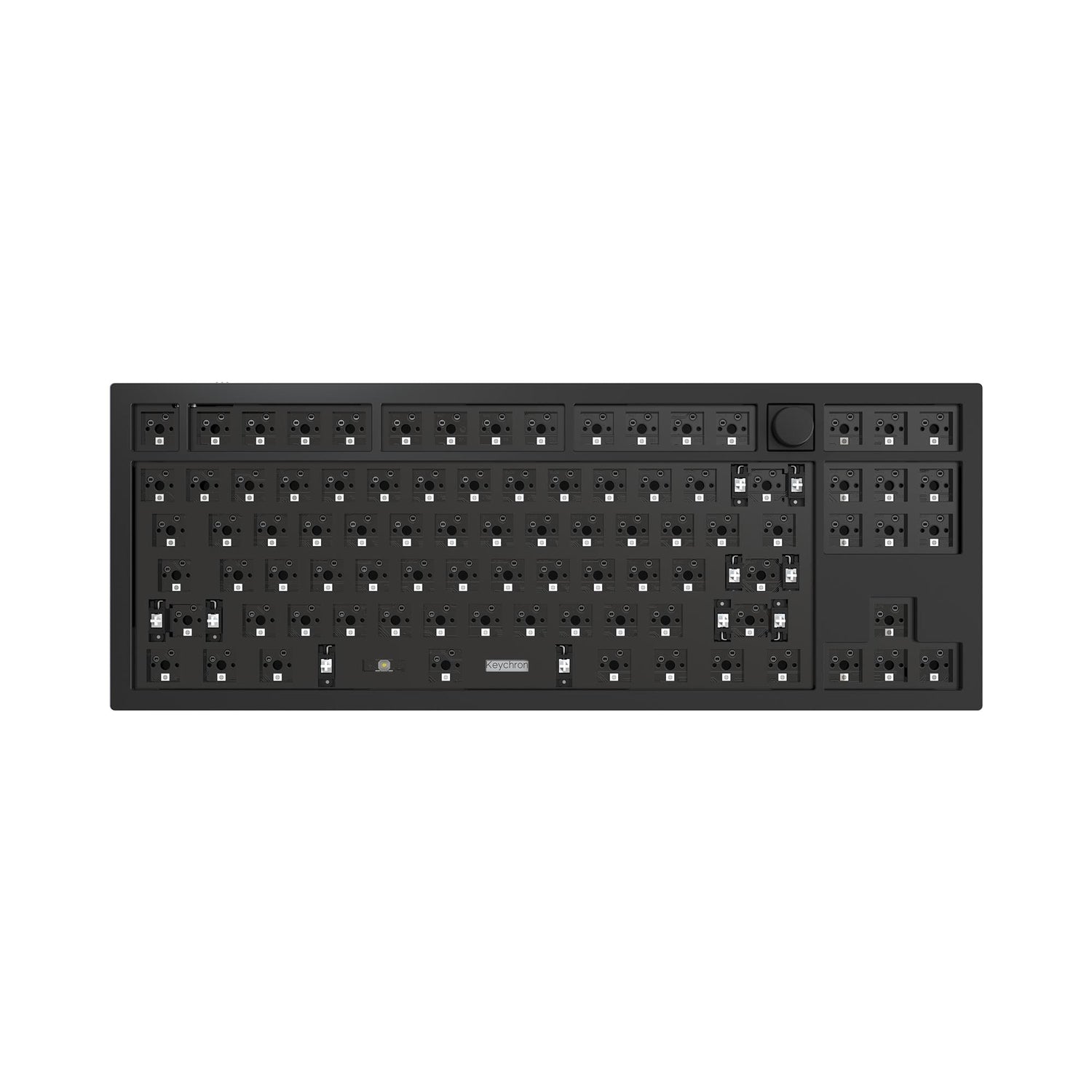

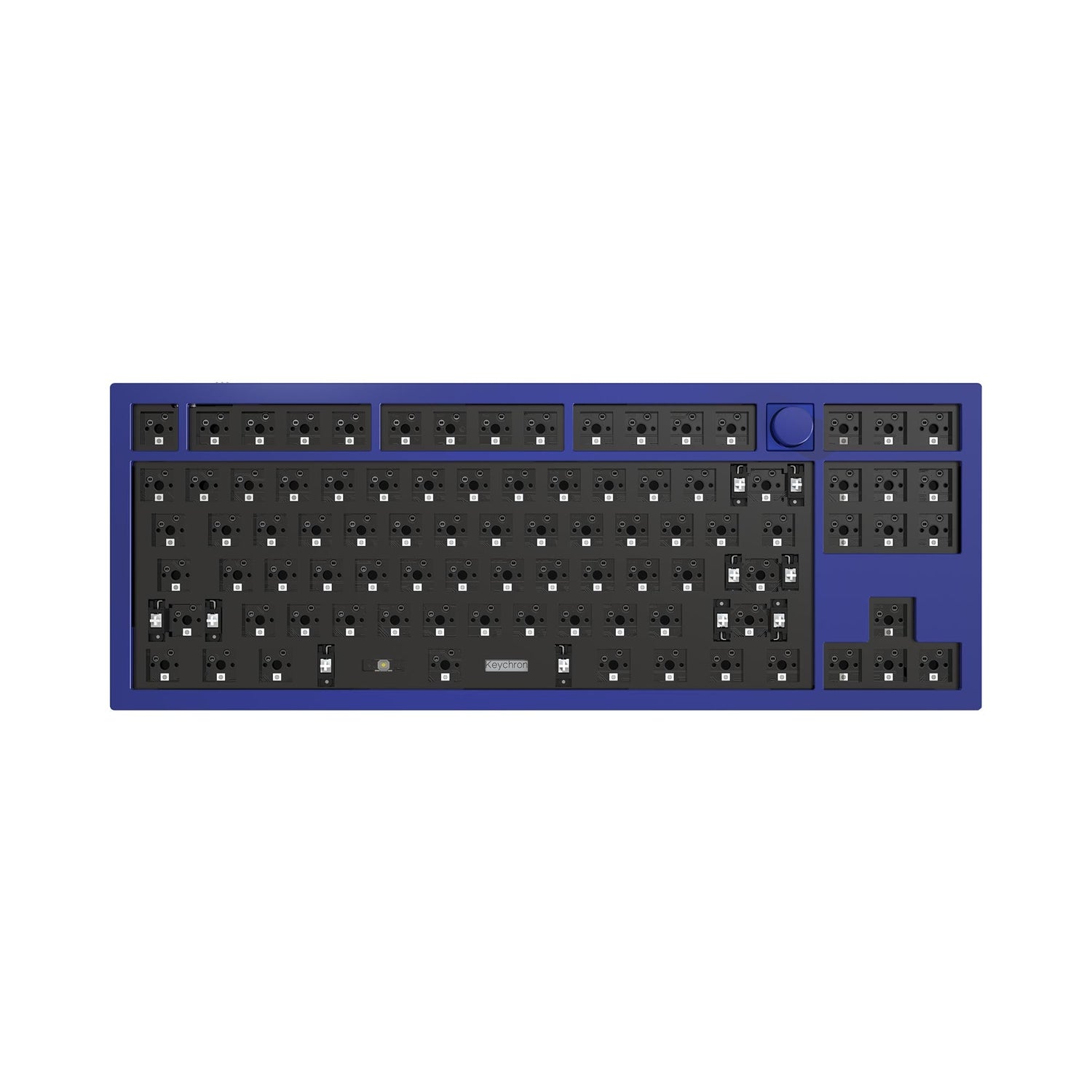

The barebone version does not include the keycaps and switches.
No discount codes can be used for Q3.
Please drop your email on "Notify Me When Available" if the product model is out of stock.
Please note that the knob color may be slightly different from the case (the blue and grey only) as these parts are manufactured separately.
Keychron Q3
The Q3 is a fully customizable mechanical keyboard to push your typing experience to the top. With the classic tenkeyless layout, full aluminum CNC machined body, double-gasket design, and QMK/VIA support, the Q3 is designed for premium typing comfort and endless possibility.
Choose the keycaps, switches and more accessories for your Q3
Refined Metal Art
The entire piece metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make a solid metal art on the desk that is the Q3.
All-Around Customizable Keyboard
To build a fully customizable keyboard, we designed every component easily assembled. Therefore, you can customize and adjust each component you want.
Double-Gasket Design
The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the sound resonance between the metals and reduce the noise of the impacted metals. This design allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.
Programmable Knob
Designed to enhance your creative workflow, the premium rotary encoder allows you to easily customize your favorite keys and macros on the knob through the VIA software.
You can easily customize the Q3's knob to your desired key or macro commands such as: zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.
Setting the macros for "zoom in/out"
Using the knob as "zoom in/out"
OSA Profile Double-shot PBT Keycaps
For the new double-shot PBT keycaps, we built a new profile. It has a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.
Switch layouts between macOS & Windows
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron Q3 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
Program Q3 with QMK & VIA
With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more. A brand new ultra-low-power Arm structure MCU which is powerful, and armed with 128K Flash will provide more flexibility for developers.
VIA is a keyboard keymap programming software. Using VIA, you can define every key and even write MACROS for the key combinations you want on your Q1. VIA supports macOS, Windows & Linux.
Hot-swappable.
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.
South-facing RGB LED Lights.
The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.
Note: The Q3's top case has sharper corners to make it much more compatible with third-party keycaps.

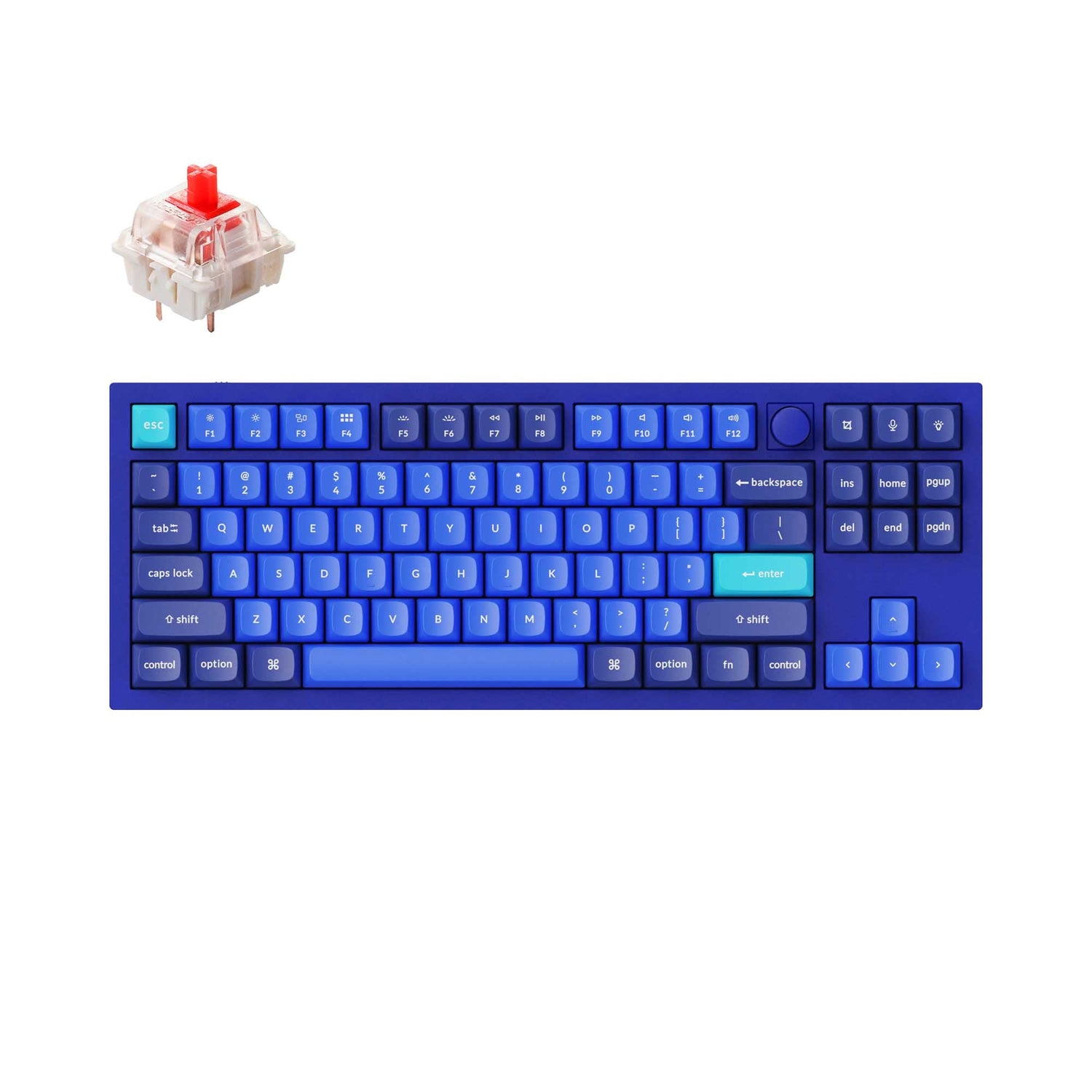

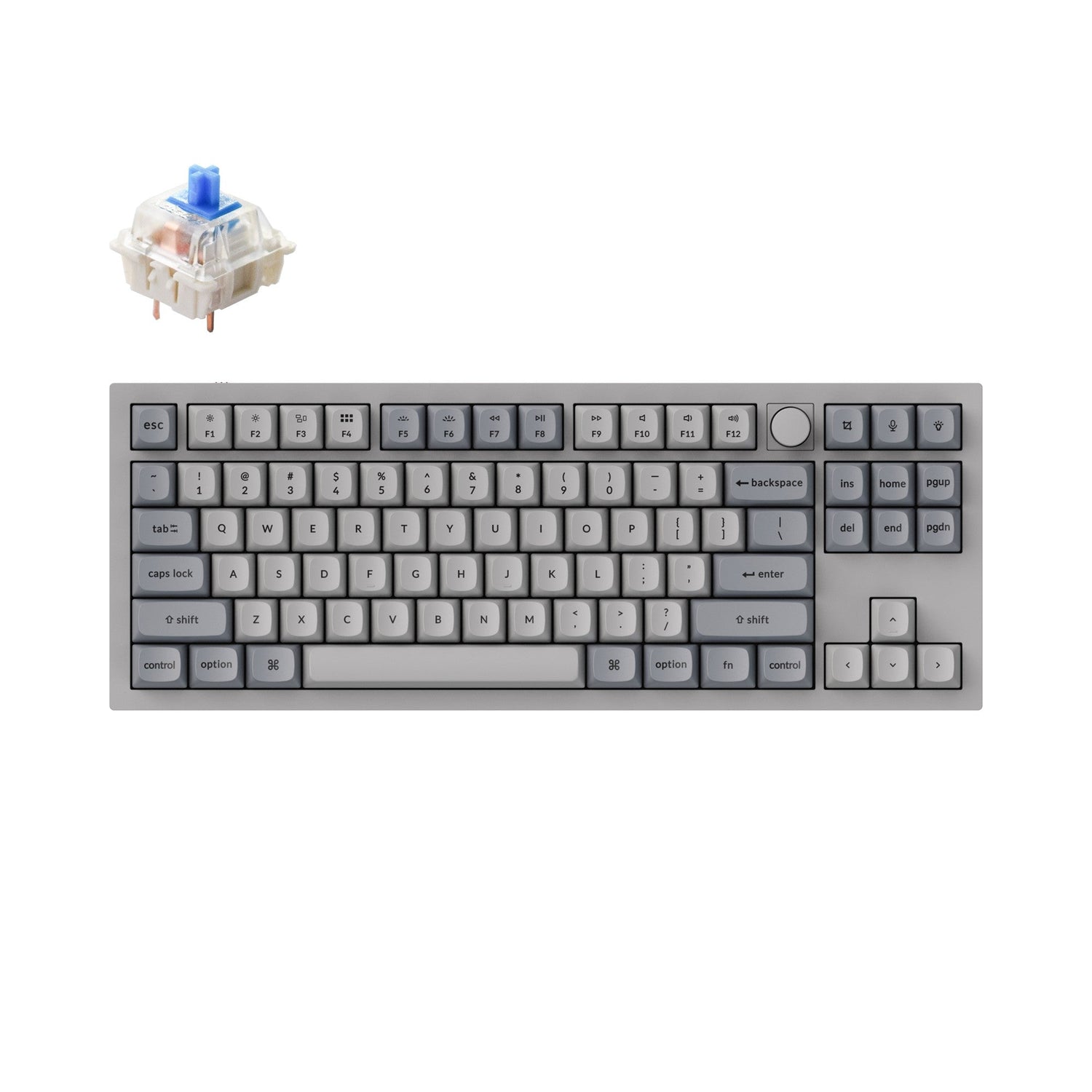

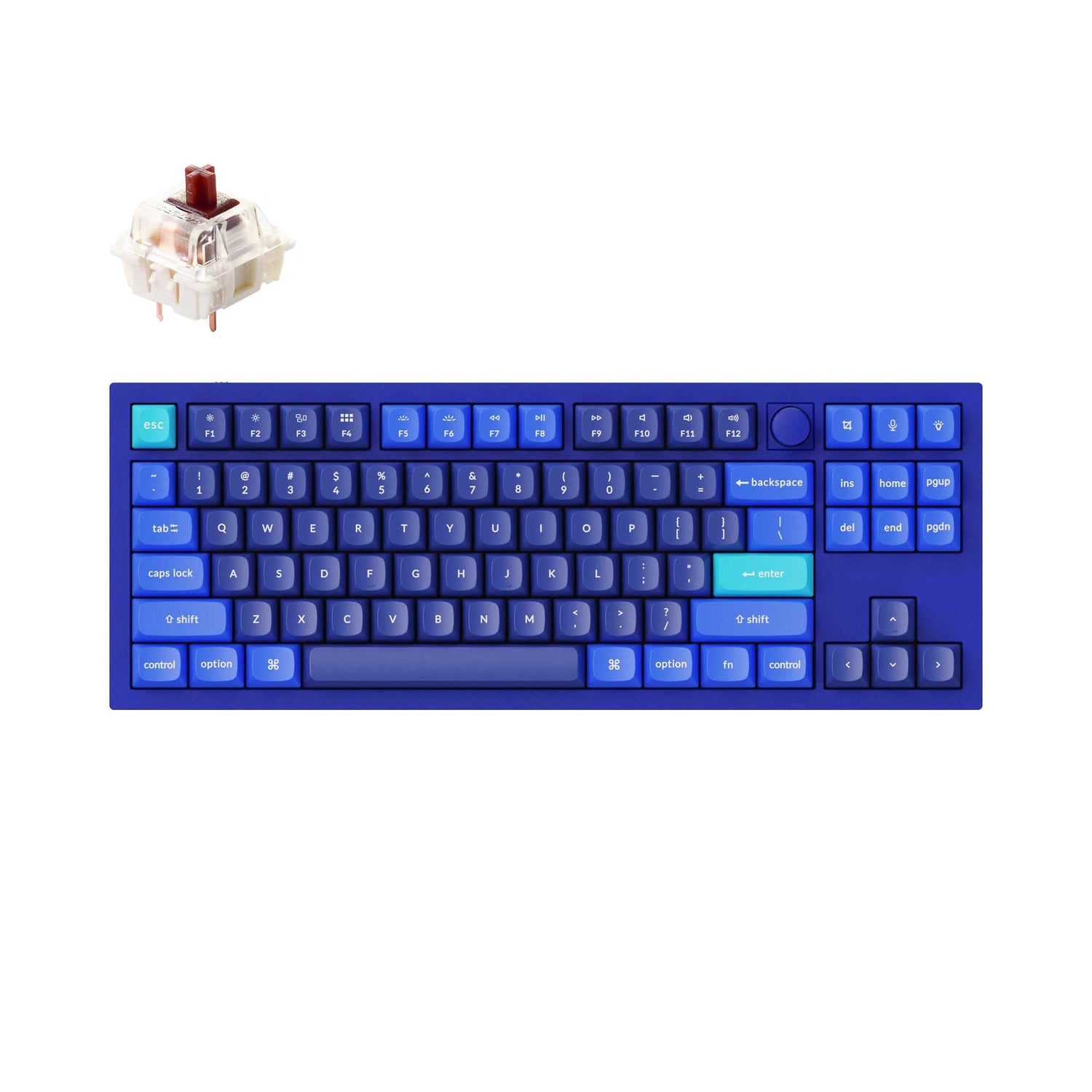

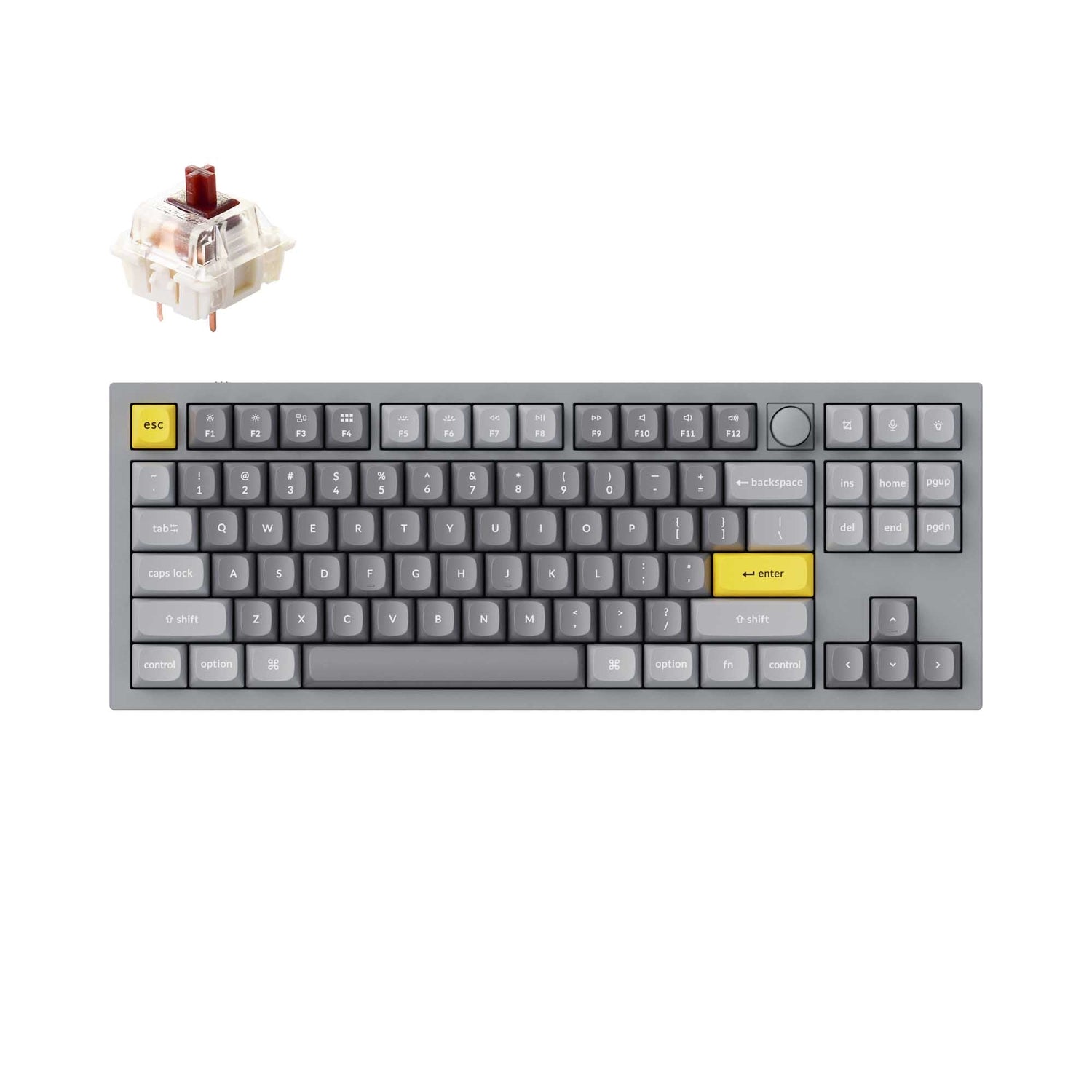

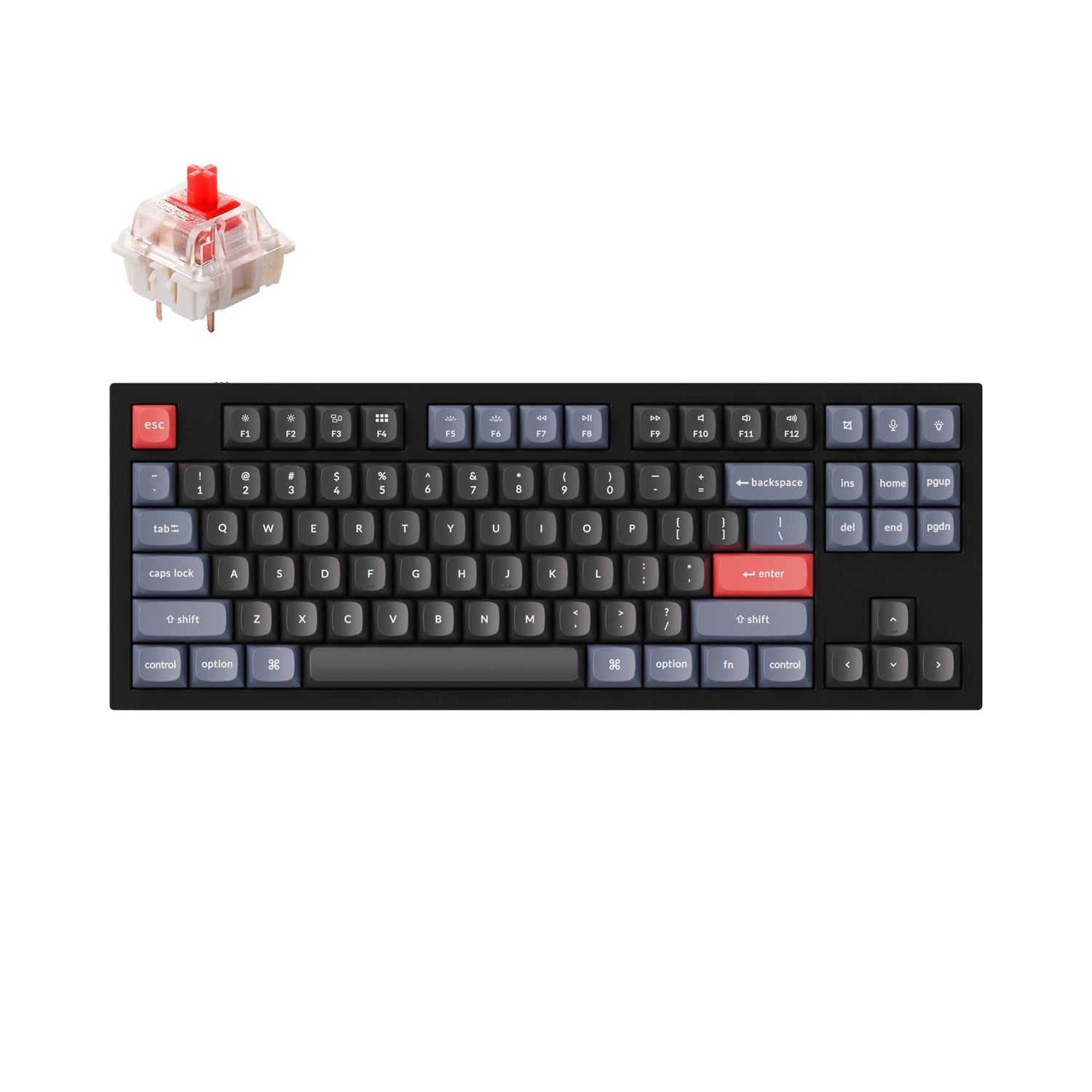

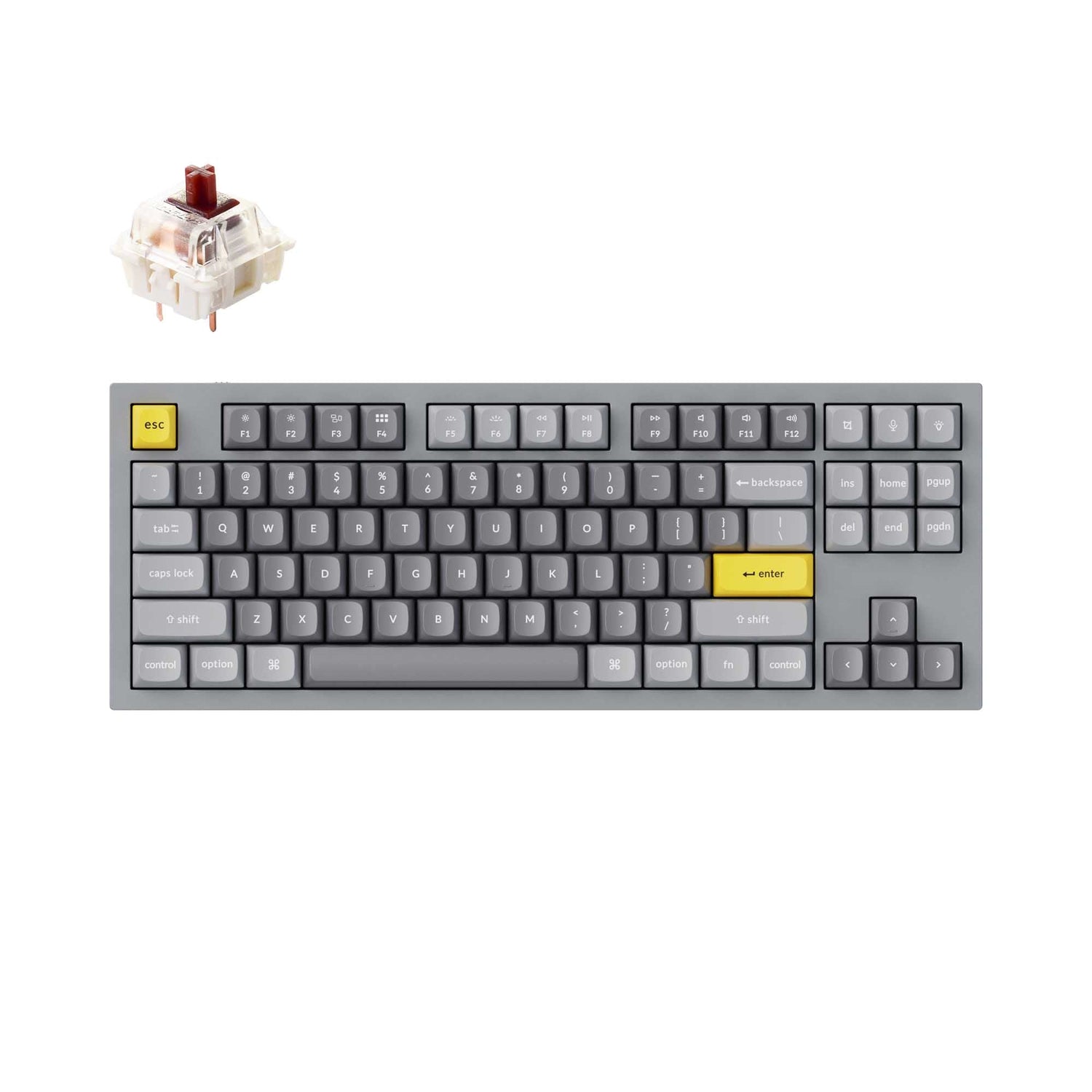

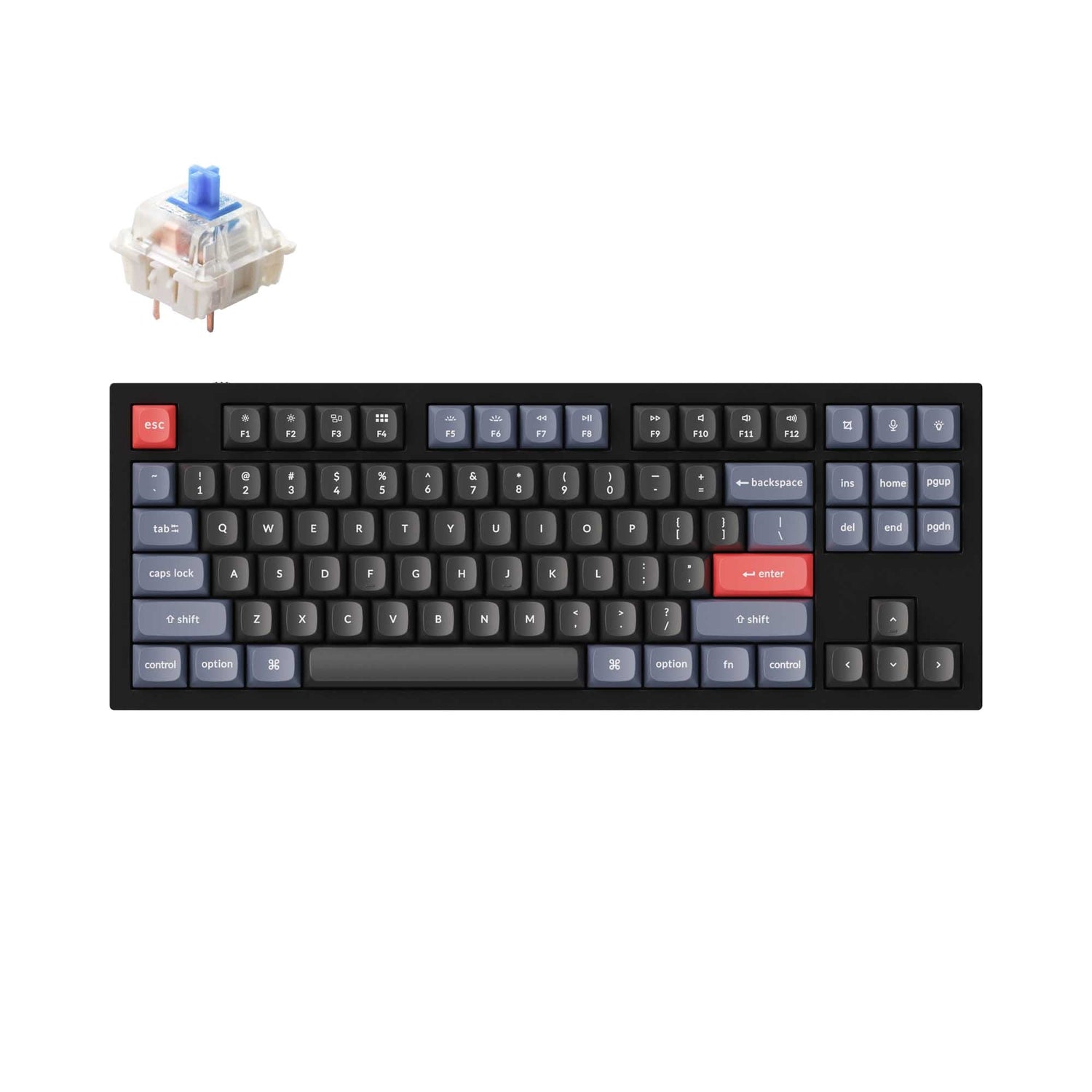

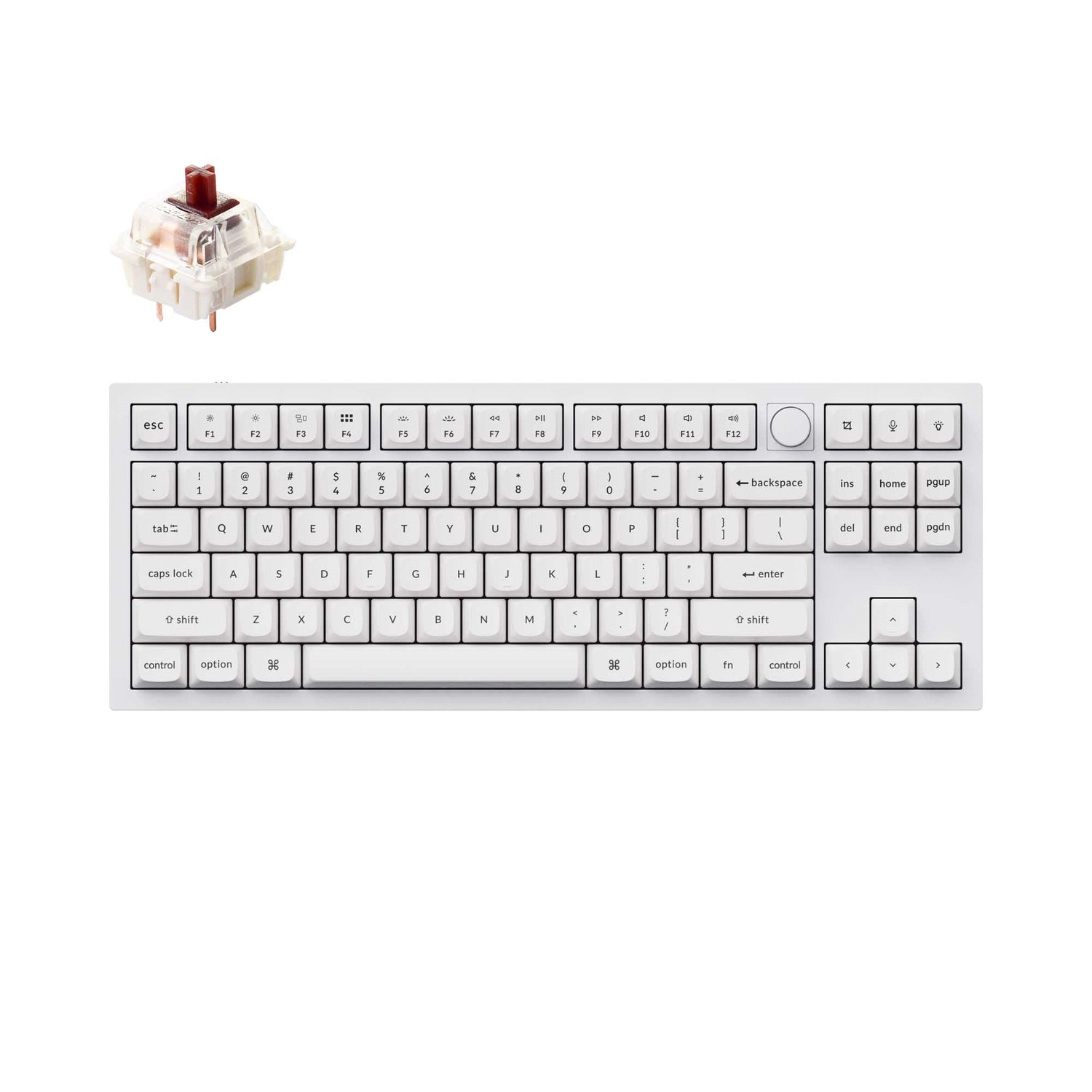

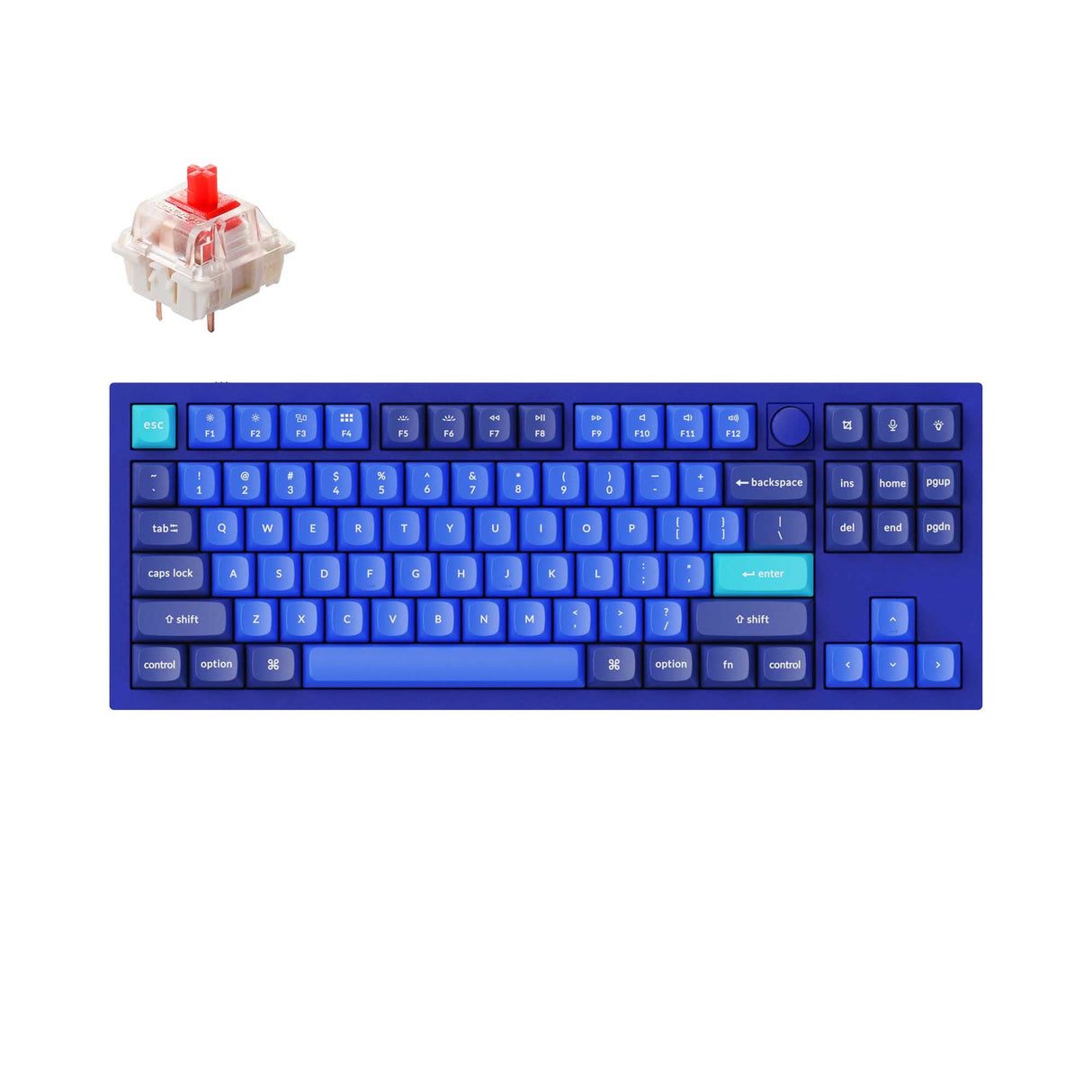

Pre-lubed Gateron G Pro Switch
The Optimized molded switch with more precise positioning and less wobble will undoubtedly improve the feel at your fingertips. With the fully assembled Q3 version fitted with factory pre-lubricated Gateron G Pro switches, a smoother travel experience is guaranteed for you.
Keychron Q3 Special Editions

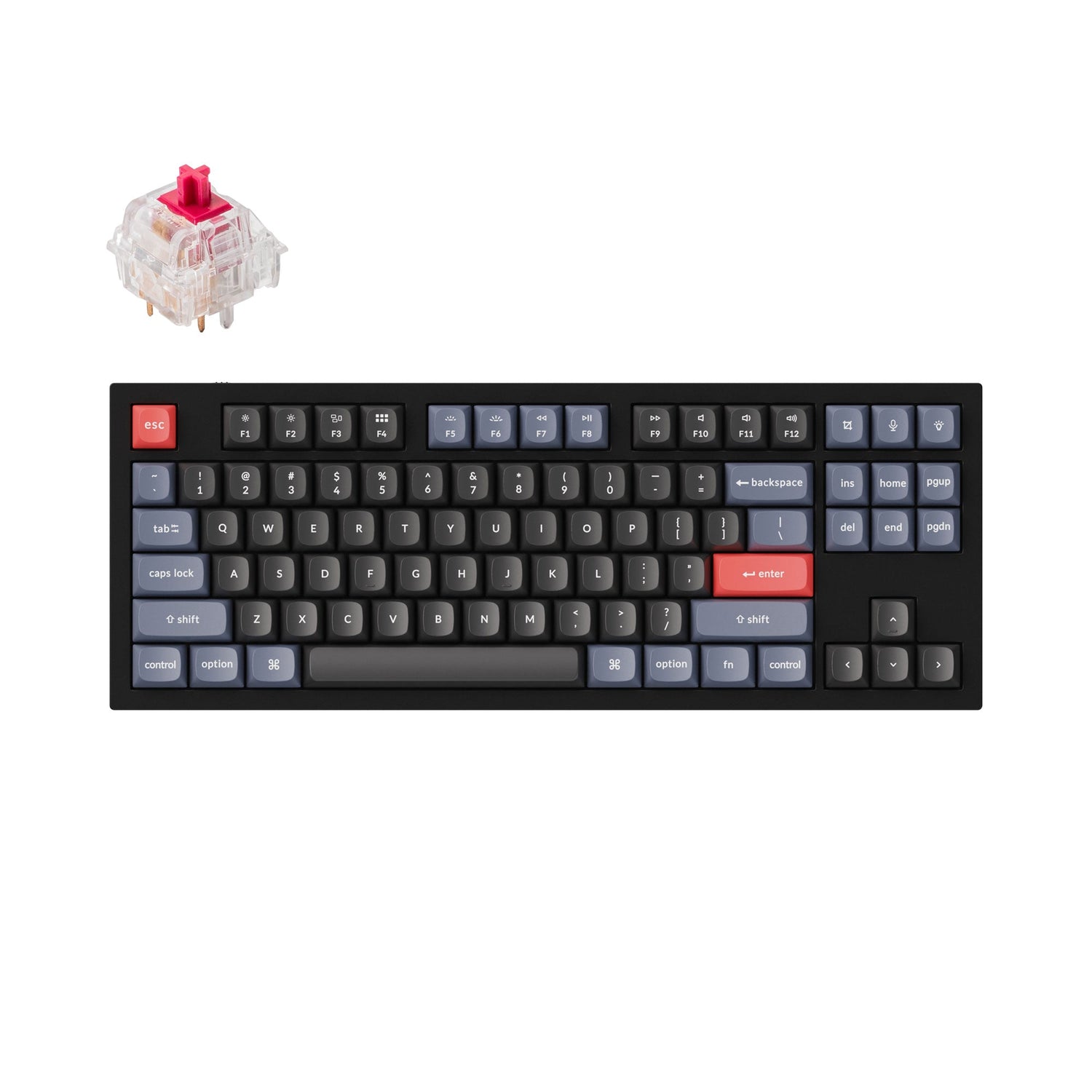

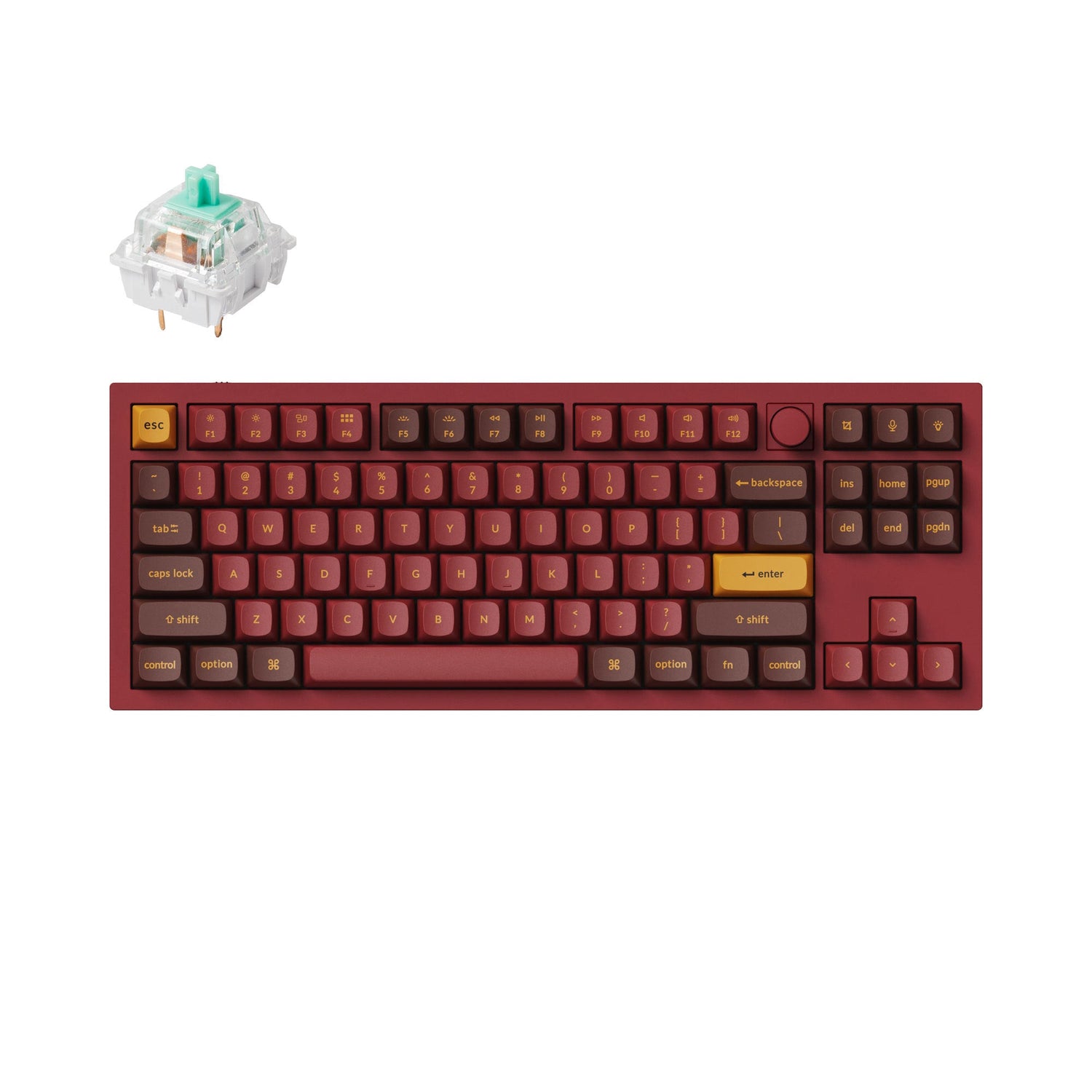

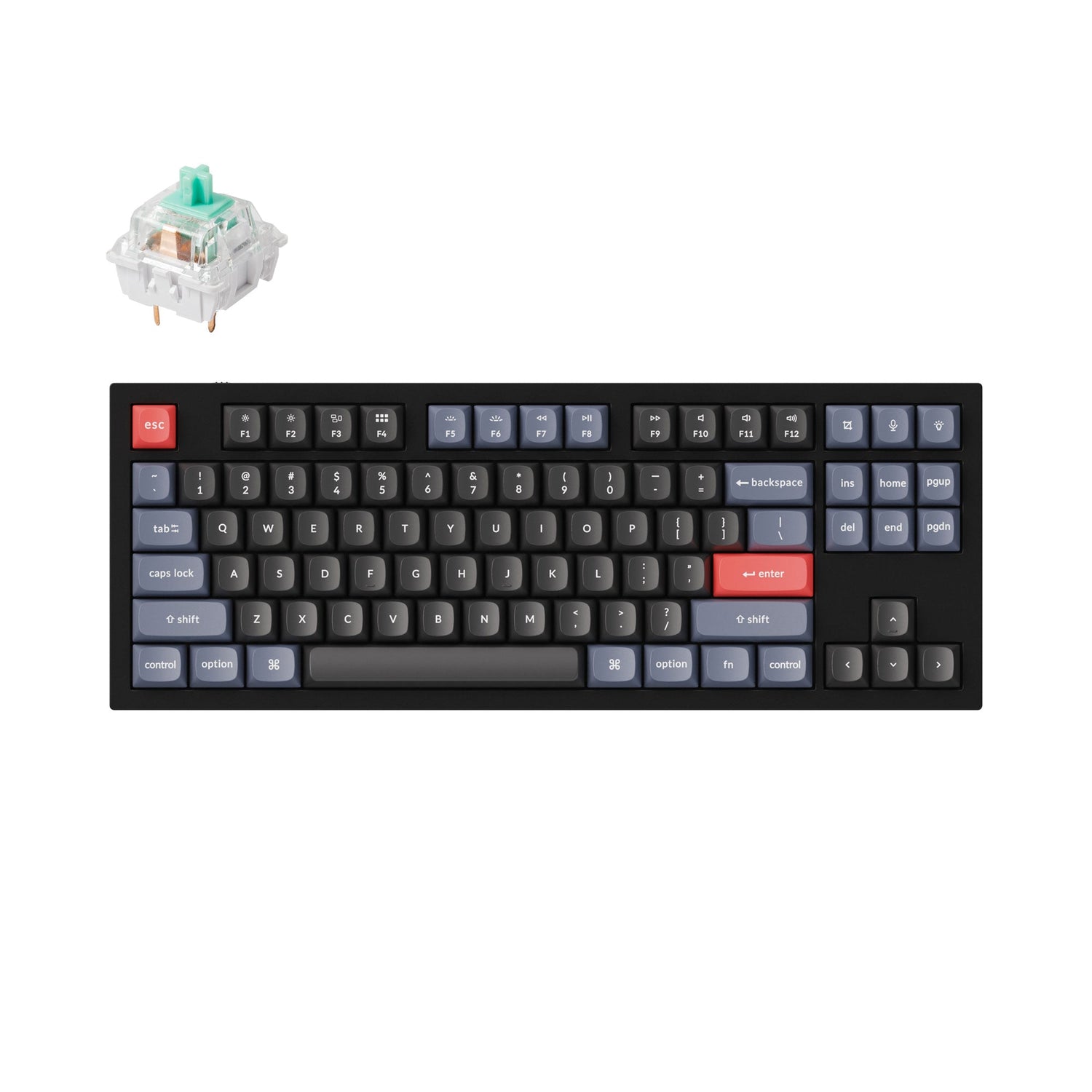

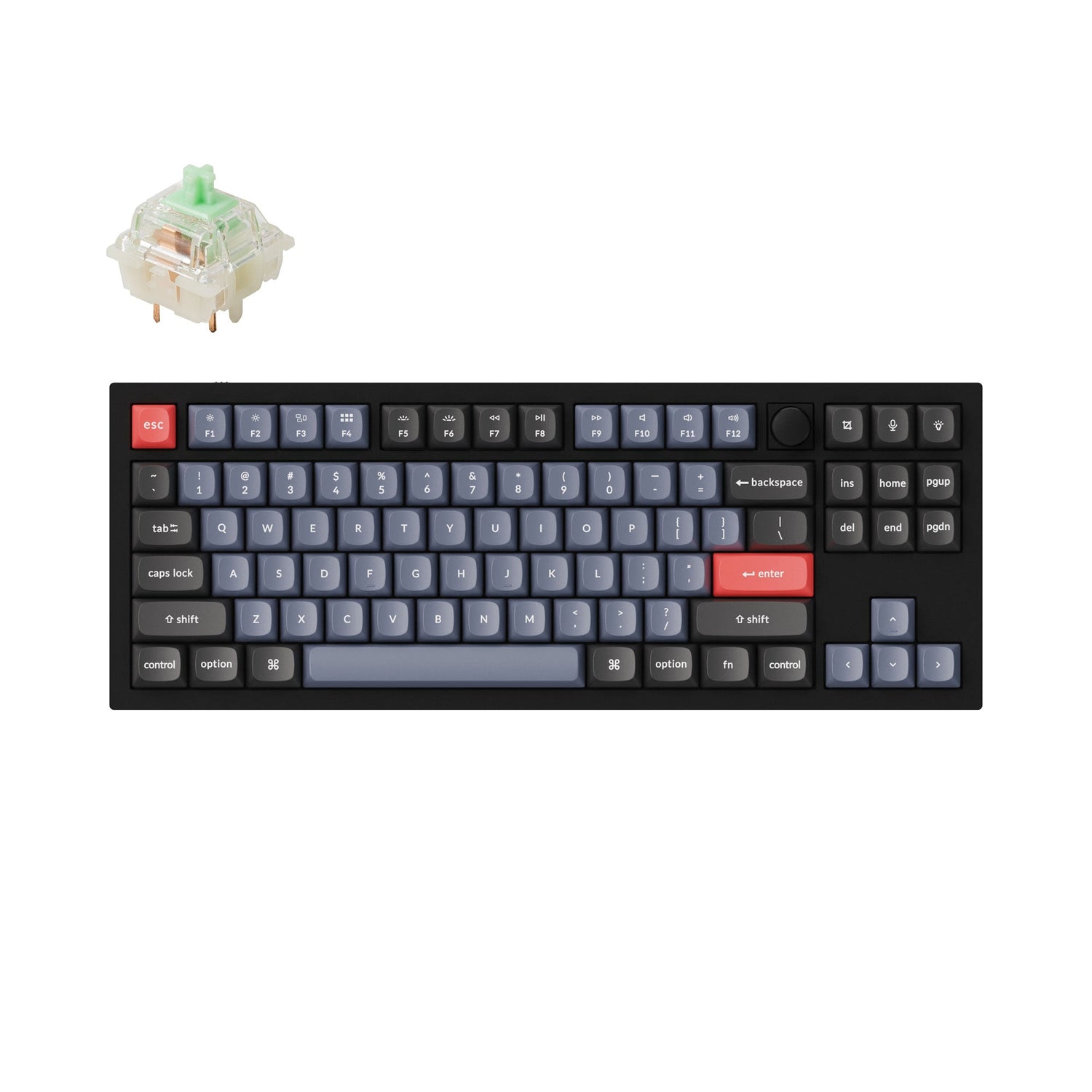

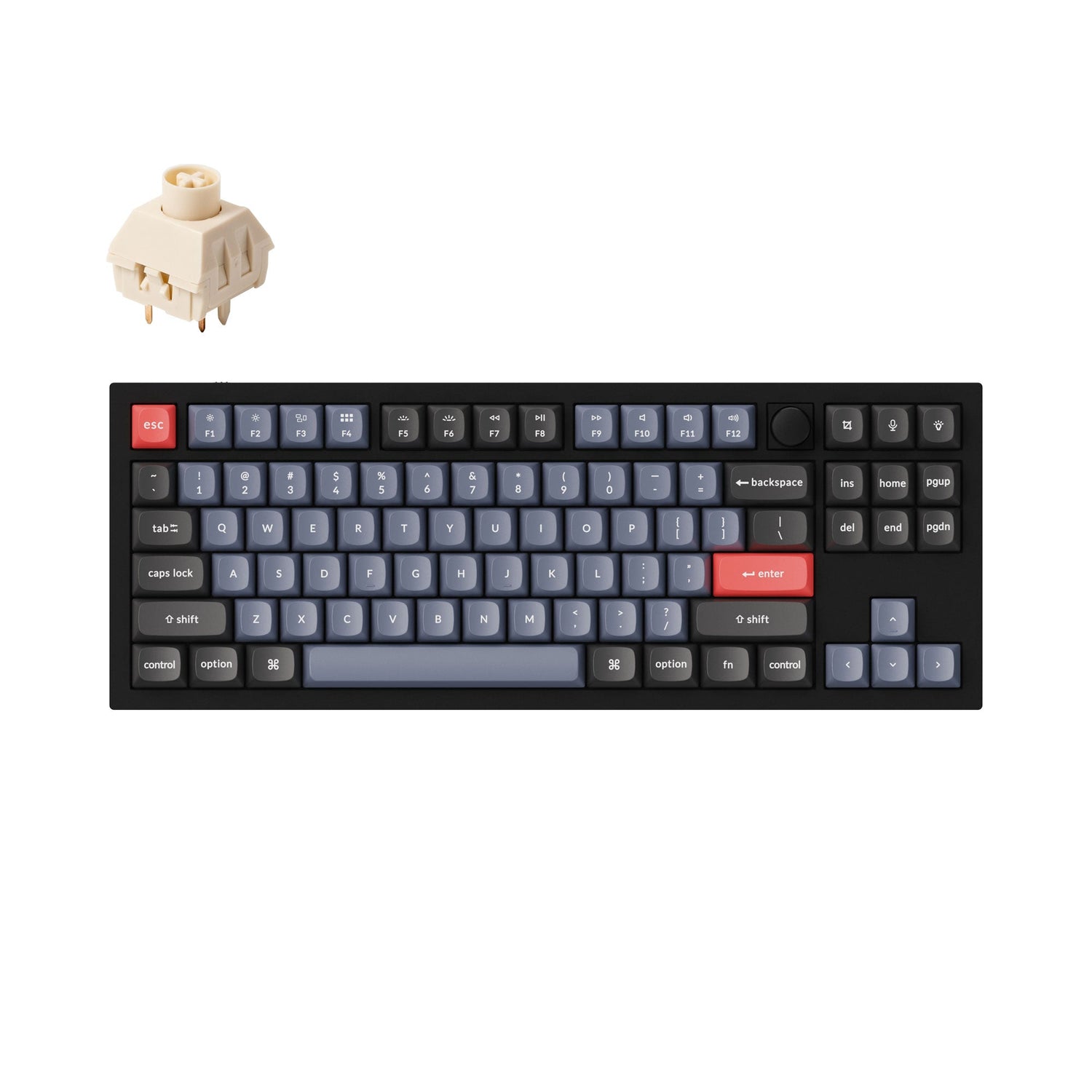

Except for the Gateron G Pro switch, we are thrilled to introduce more amazing switches to the Keychron Q3 Special Edition Keyboards. The new Keychron K pro switches, the Gateron Baby Kangaroo Tactile switch, the Kailh Box Cream switch, the Kailh Crystal Burgundy switch, the Kailh Midnight Pro Silent switch, and the Kailh Clione Limacina Clear switch provide an extraordinary and silky smooth typing experience with linear and tactile bumps.

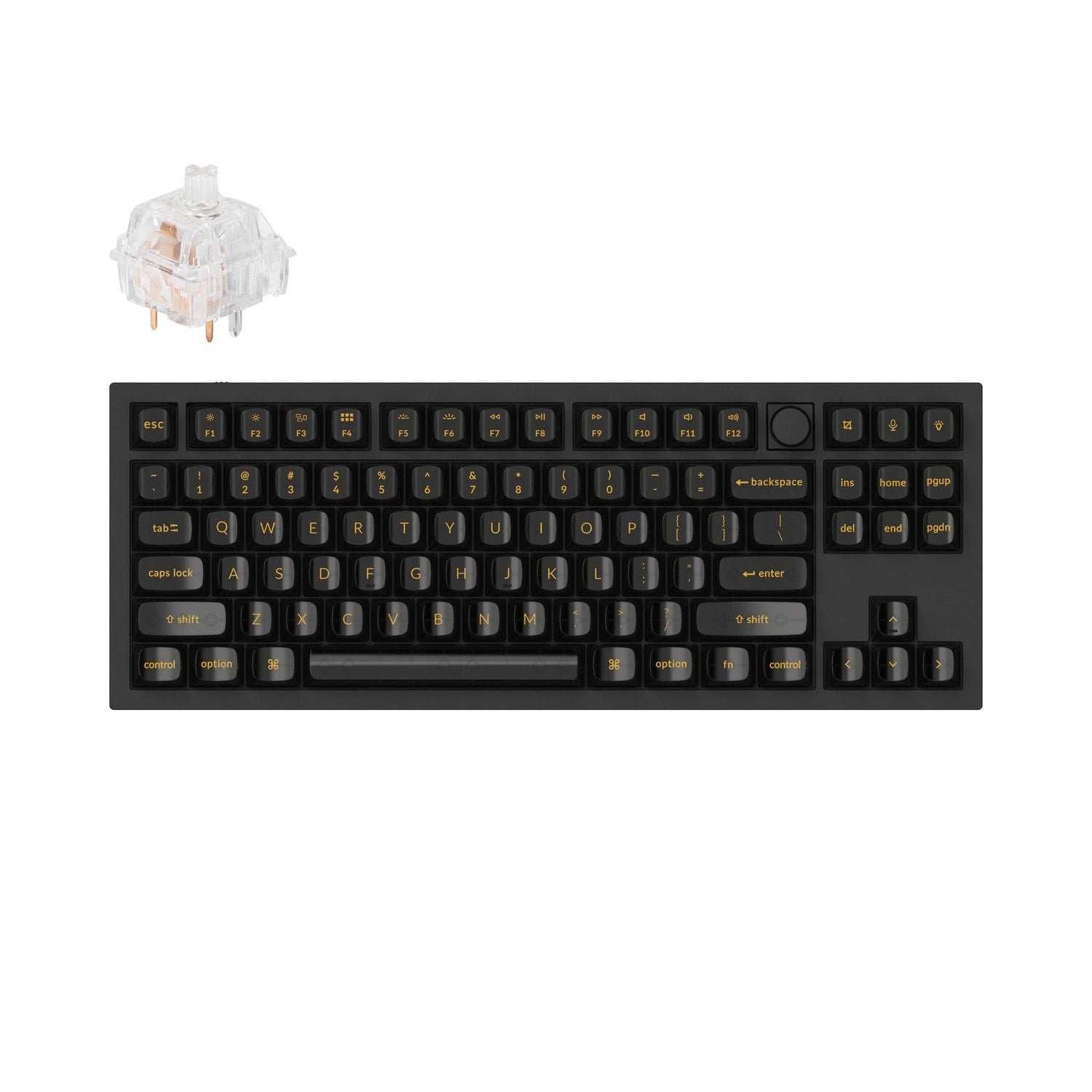

Special Edition with Transparent Keycap and Switch
Outfitted the Keychron Q3 with industrial-style OSA profile transparent keycaps to provide a perfect backlight effect and engineered with Kailh Clione Limacina switches to offer a better typing feel, making the Q3 look as good and unique in the office as it does in the game room.
All New Screw-In PCB Stabilizers
The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron Q3 also supports third-party stabilizers, including Cherry or Durock.
Looking for ISO Layout?
The Q3 ISO collection comes with fully assembled keyboards with 🇬🇧UK, 🇩🇪German, 🇩🇰🇫🇮🇮🇸🇳🇴🇸🇪Nordic, 🇨🇭Swiss, 🇫🇷French, and 🇪🇸 Spanish layout, and the “Barebone ISO" option is suitable for all ISO countries (e.g.: 🇮🇹Italy, 🇵🇹Portuguese, 🇭🇺Hungary, etc.) to build their keyboard with keycaps in their preferred languages and switches.
Sound Test
Different Versions
What's in the box?
Specs
Width | 137 mm |
---|---|
Length | 365.1 mm |
Front Height | 19.7 mm (without keycaps) |
Back Height | 32.6 mm (without keycaps) |
Feet Height | 2.4 mm |
Angle | 5.2° |
Weight | 2000 g ± 10g (the fully assembled weight) |
Body Material | Full CNC machined aluminum |
Plate | Steel |
Polling Rate | 1000Hz |
Keycaps | Double-shot ABS keycaps, not shine-through (fully assembled version) |
---|---|
Switches | Gateron G Pro (fully assembled version) |
Backlight | South-facing RGB LED |
Switch Support | Hot-swappable (5 pin & 3 pin) |
Stabs | Screw-in PCB stabs |
Connectivity | Type-C cable |
Cable | Type-C cable + Type-A to Type-C adapter |
MCU | Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash) |
Operating Environment | -10℃ to 50℃ |
Learn more about the Keychron Q3 such as the Q3 shortcuts, assembling the Q3, factory reset, and more in the FAQ section.
