Keychron Q65 QMK Custom Mechanical Keyboard (US ANSI Keyboard)

SKU: Q65-M1
€208,80 €232,00

Type
Color
Switches

The fully assembled version includes:

  • The keyboard PCB, the case, and the steel plate.
  • Double-shot PBT keycaps (including Mac & Windows keycaps).
  • Gateron G Pro switches.

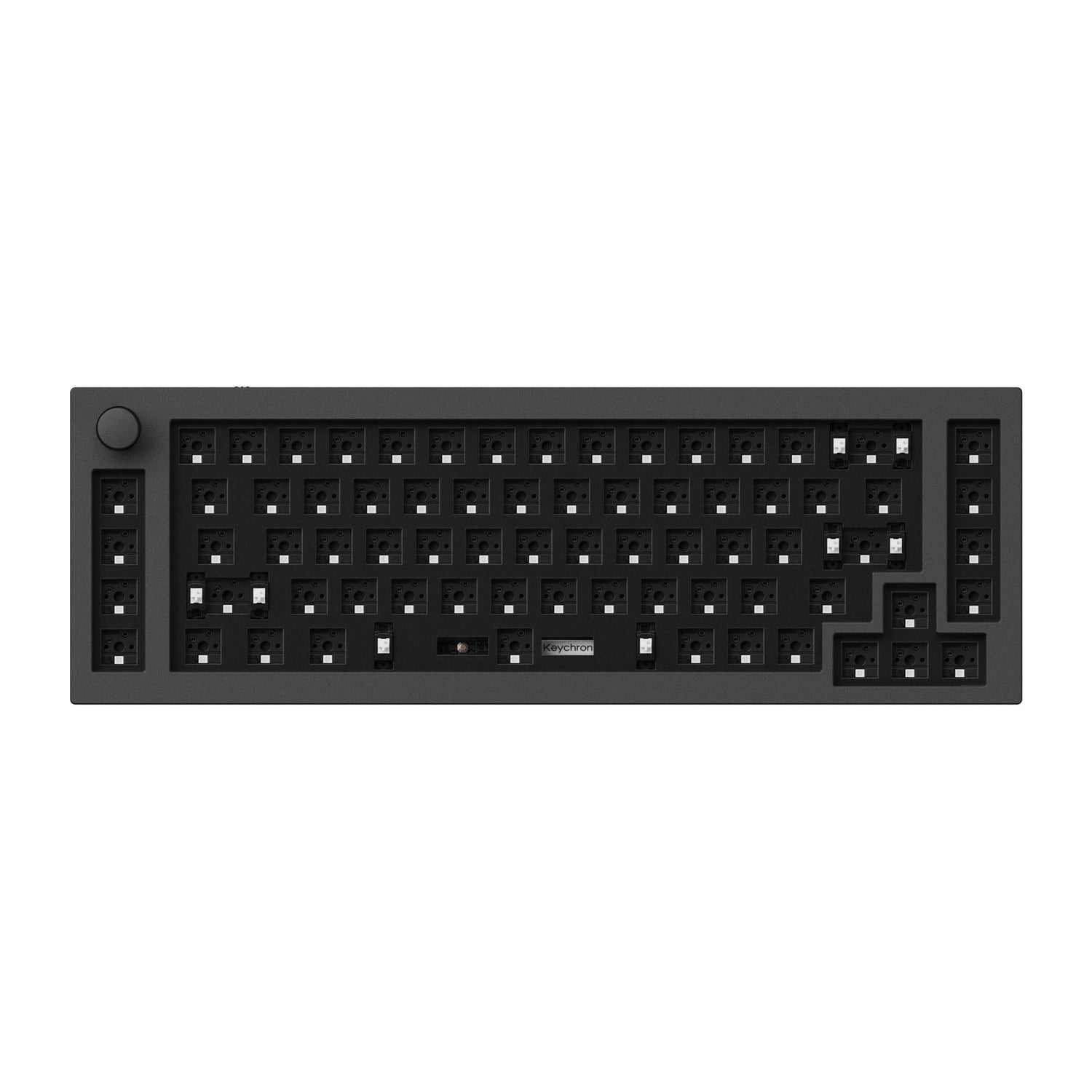

The barebone version does not include the keycaps and switches.
No discount codes can be used for Q65.

UNIQUE 65% LAYOUT

KEYCHRON Q65

Keychron Q65 QMK/VIA Custom Mechanical Keyboard

The Q65 is a fully customizable mechanical keyboard with a unique 65% layout. It is based on the traditional 65% layout but has an extra column of macro keys and a programmable knob. The Q65 comes with a complete aluminum CNC machined body, double-gasket design, and QMK/VIA support, all designed for a minimal desk setup and max productivity.

Features of Keychron Q65 QMK/VIA Custom Mechanical Keyboard
Customize Your Q65

Choose the switches and more keyboard accessories for your Q65

A Refined Piece Of Metal Art

The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q65.

Keychron Q65 QMK/VIA Custom Mechanical Keyboard
Keychron Q65 QMK/VIA Custom Mechanical Keyboard

All-Around Customizable Keyboard

To build a fully customizable keyboard, we designed every component easily assembled. Therefore, you can customize and adjust each component you want.

Keychron Q65 65% Layout Custom Mechanical Keyboard

Double-Gasket Design

The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the sound resonance between the metals and reduce the noise of the impacted metals. This design allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.

Keychron Q65 65% Layout Custom Mechanical Keyboard

An Epic Core Inside The Keyboard

A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz out of the box, which makes latency non-existent for the competitive game.

OSA Profile Double-shot PBT Keycaps

These double-shot PBT keycaps have a similar height to the OEM profile and have an SA-like shape, and we named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

Keychron Q65 65% Layout Custom Mechanical Keyboard OSA Profile Double-shot PBT Keycaps

Switch layouts between macOS & Windows

Built with the Mac users' experience in mind while still retaining compatibility with Windows devices, the Keychron Q65 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Programmable Knob

Designed to enhance your creative workflow, the aluminum rotary encoder allows you to easily customize your favorite keys and macros on the knob through the VIA software.

Rotary Encoder function of Keychron Q65 65% Layout Custom Mechanical Keyboard

You can easily customize the Q65's knob to your desired key or macro commands such as: zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.

Setting the macros for "zoom in/out"

Using the knob as "zoom in/out"

Program Q65 with QMK & VIA

With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more.

Keychron Q65 65% Layout Custom Mechanical Keyboard

Hot-swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.

South-facing RGB LED Lights

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

Pre-lubed Gateron G Pro Switch

By optimizing the switch mold, the G Pro switch wobbles less than a standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed process on all the G Pro switches (exclude the clicky ones), no doubt this will ensure the best smoothness at your fingertips when typing.

Gateron G Pro Switch Features
Screw- in PCB Stabilizers

All New Screw-In PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, backspace) typing experience is now more stable and smooth. The Keychron Q65 also supports third-party screw-in PCB stabilizers.

What's in the box?

Pack list of Keychron Q65 65% Layout Custom Mechanical Keyboard
Barebone pack list of Keychron Q65 65% Layout Custom Mechanical Keyboard

Specs

Width121 mm
Length362.9 mm
Front Heigh20.1 mm (without keycaps)
Back Height33.4 mm (without keycaps)
Feet Height2.7 mm
Angle6.5°
Weight2420 g ± 10g (Fully Assembled Version)
Body MaterialFull CNC machined aluminum
Plate MaterialSteel
Polling Rate1000Hz
Weight1809.2g (Fully Assembled Version)
1600.8g (Barebone Version)
Keycaps (fully assembled version)Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
MCUUltra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)
SwitchesGateron G Pro (Fully Assembled Version)
BacklightSouth-facing RGB LED
Switch SupportHot-swappable (5 pin & 3 pin)
StabsScrew-in PCB stabs
ConnectivityType-C cable
CableType-C cable + Type-A to Type-C adapter
Operating Environment-10℃ to 50℃

Learn more about the Keychron Q65 such as the Q65 shortcuts, assembling the Q65, factory reset, and more in the FAQ section.
